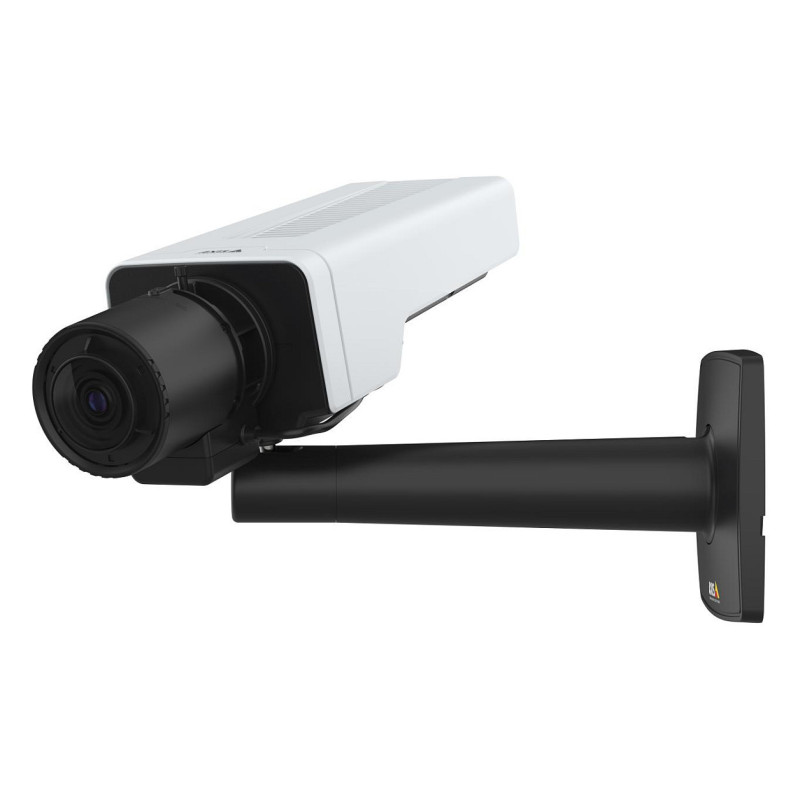

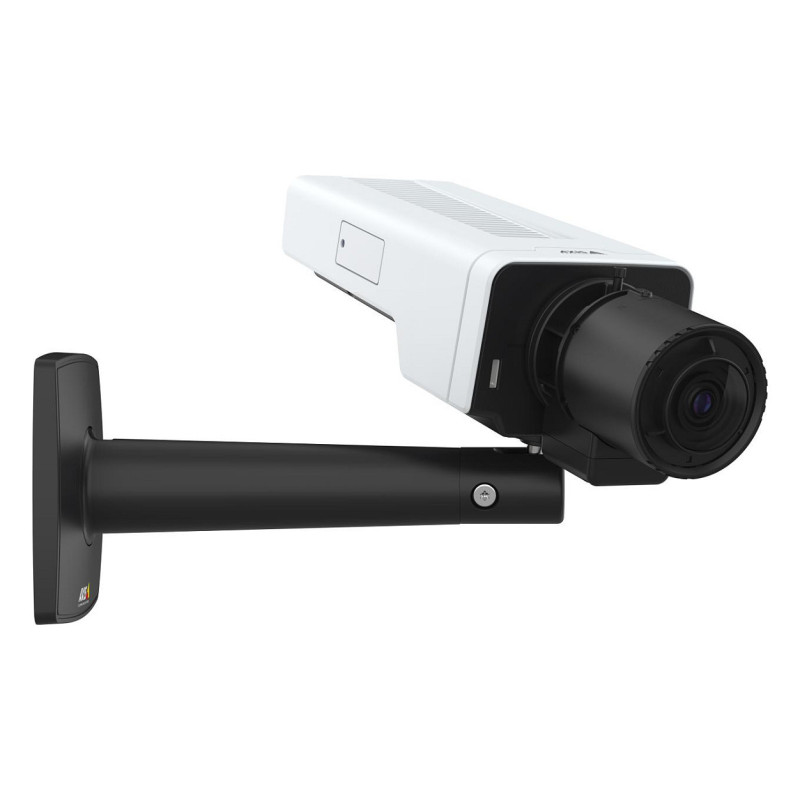

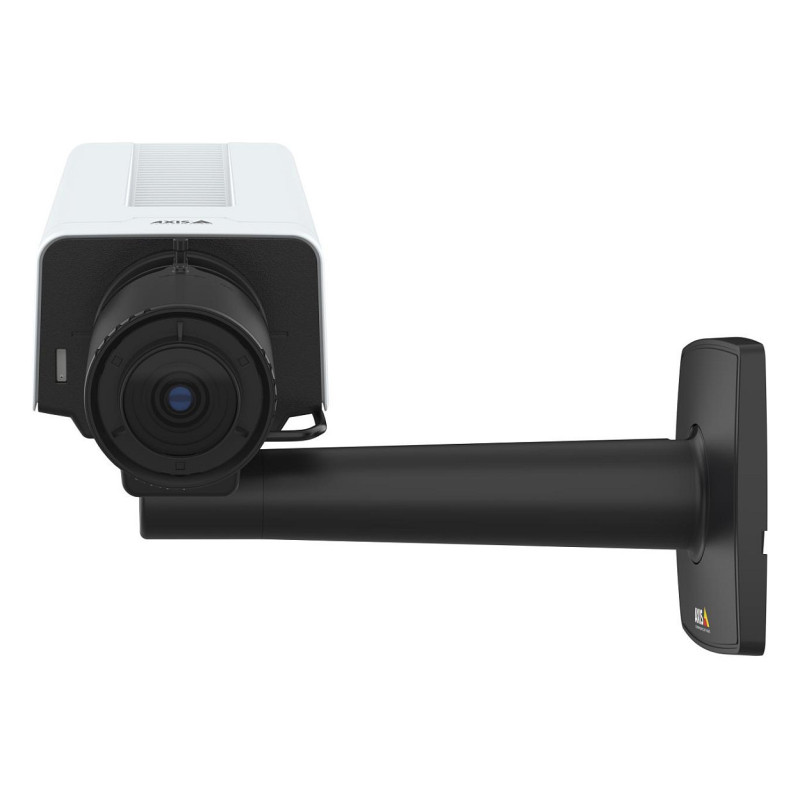

Axis P1385

Axis P1385. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 121 - 26°, Lens viewing angle, vertical: 64 - 15°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.8 - 13 mm
Reliable 2 MP indoor surveillance
This box camera delivers excellent HDTV 1080p image quality. Ideal for various surveillance situations, it offers an exchangeable lens so you can change the lens to suit your needs. Plus, it's designed for use outdoors in housing.
A camera you can count on
With electronic image stabilization, AXIS P1385 ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. And thanks to shock detection and a tampering alarm, you'll be informed if there's any attempts to interfere with the camera. Barrel distortion correction delivers great image quality, even at the edges of the image. Plus, corridor format ensures the video is perfectly adapted to monitored corridors or tunnels. With support for PoE and redundant DC power, this box camera offers flexible installation. Furthermore, it's designed to fit into outdoor housing.
More light or less
With an exchangeable lens and i-CS support, you can quickly and easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in HDTV 1080p. With Lightfinder 2.0, and Forensic WDR it delivers true colors and great detail in challenging light or near darkness. In addition, P-Iris ensures images with better contrast, clarity, resolution, and depth of field.
Secure and powerful
AXIS P1385 offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ, Preset point
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: UL/cUL, UKCA, CE, KC, EAC, VCCI, RCMCAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3,IS 13252IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,IEC 60068-2-27, IEC 60068-2-78NIST SP500-267, IPv6 USGv6ETSI EN 303 645, FIPS 140

Design

Form factor: Box
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Aluminium
Fog proof: Yes

Camera

Minimum illumination: 0.005 lx
Lens viewing angle, horizontal: 121 - 26°
Lens viewing angle, vertical: 64 - 15°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/37000 - 2 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Focal length range: 2.8 - 13 mm
Auto focus: Yes

Night vision

Night vision: Yes
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG, MPEG4
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Privacy masking: Yes
Image stabilizer: Yes

Audio

Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Signal-to-Noise Ratio (SNR): 55 dB

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLS b, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 2

Security

Security algorithms: 802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS

Power

Power source type: DC, PoE
Power consumption (typical): 3.15 W
Power consumption (max): 7.76 W
Power consumption (Power over Ethernet (PoE)): 2.97 W
DC output voltage: 10, 28

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 65 °C

Weight dimensions

Width: 87 mm
Depth: 225 mm
Height: 235 mm
Weight: 480 g

Packaging content

Number of cameras: 1
