Axis Q6020-E 50Hz

Axis Q6020-E 50Hz. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Detect distance: 46.1 m, Observe distance: 19.4 m, Recognize distance: 10 m

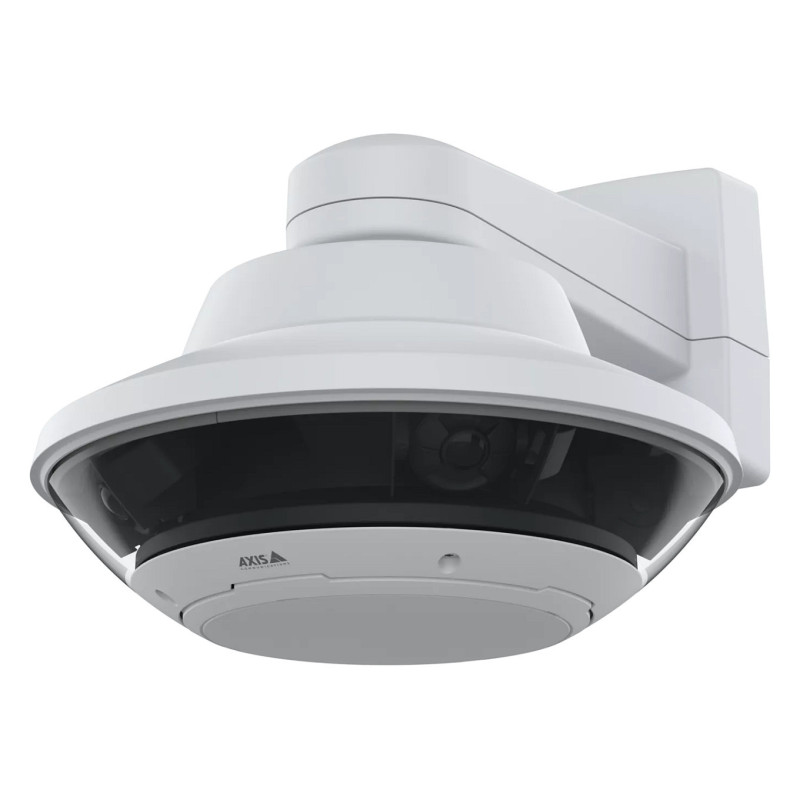

AXIS Q6020-E Panoramic Camera

Designed for operation with AXIS Q60 PTZ Series, this multidirectional camera delivers both 360° overview and great details. With a USB port, installers can insert a Wi-Fi dongle and quickly configure cameras while on site.

See it all

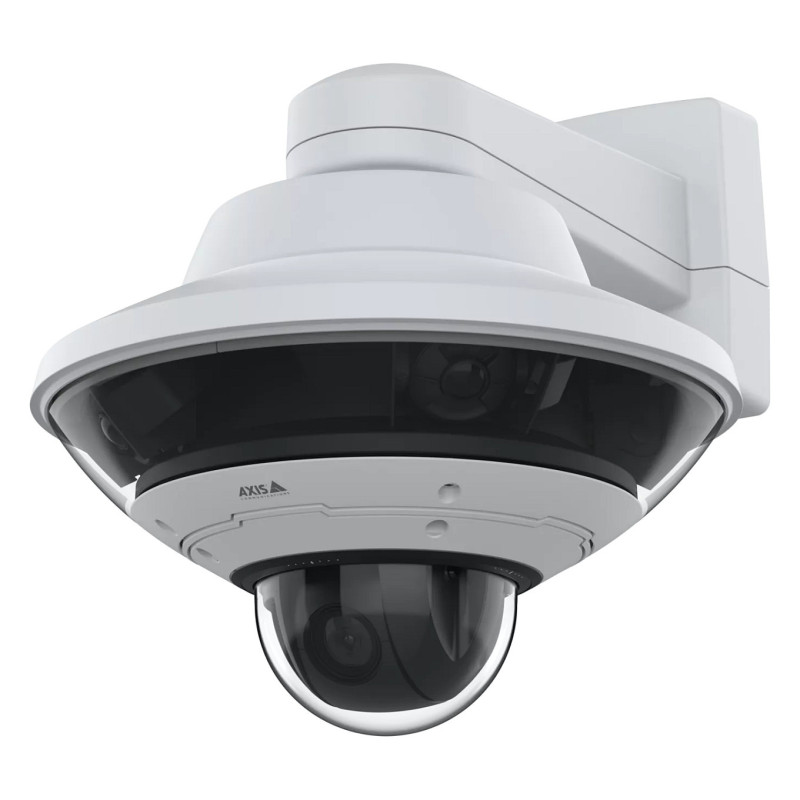

This multidirectional camera offers four 5 MP sensors and delivers 360° overview for total situational awareness. With four ½" sensors, it ensures clear, bright images and better handling of shadows even in challenging light conditions, often reducing the need for IR illumination in dark scenes. This camera is specially designed for operation with AXIS Q60 PTZ Series to capture high-resolution overviews and great details in one complete camera solution. You can move from overview to zoomed-in detailed views with just one mouse click and autopilot enables automatic PTZ tracking. It's also easy to change lenses and adjust the field of view. For instance, you can use a wide-angle lens to monitor wide open areas, or a tele lens to get great details from a distance.

Powerful and secure

Built on a dual system-on-chip (SoC), this powerful camera features a deep learning processing unit (DLPU) that lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. Axis Edge Vault safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified. Furthermore, privacy masking with mosaic lets you pixelate whole areas of the scene.

Cost-efficient installation and operation

Using the same bracket, power supply, and network cable as the integrated PTZ camera, there's no extra equipment required for AXIS Q6020-E. With four camera heads in one camera, it ensures fast, accurate, and cost-effective installation. It also features a USB port so installers can insert a Wi-Fi dongle and quickly see the camera view as they adjust it. This makes it easy to configure cameras while on site. Autofocus and auto-alignment functionality let you automatically adjust the camera sensors and PTZ camera, eliminating the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Auto-tracking
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Certification: UL/cUL, CE, KC, EAC, VCCI, RCM, TAA

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
LED indicators: Yes
Housing material: Aluminium, Polycarbonate (PC), Polymer
International Protection (IP) code: IP66
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.03 lx
Angle of rotation: 190°
Lens viewing angle, horizontal: 360°
Lens viewing angle, vertical: 84°
Tilt angle range: -40 - 75°
Pan range: -180 - 180°
Camera pixel size: 2.9 µm
Camera shutter speed: 1/66500 - 2 s
Number of Privacy masking areas: 32

Image sensor

Number of sensors: 4
Optical sensor size: 25.4 / 2 mm (1 / 2")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 4
Detect distance: 46.1 m
Observe distance: 19.4 m
Recognize distance: 10 m
Lens diameter: 3.7 mm
Feature: Auto focus
Maximum aperture number: 2
Identify distance: 5.1 m
Closest focusing distance: 1 m

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 320 x 240, 2592 x 1944
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness, White balance
Feature: Text caption overlay
Bit rate control: Variable Bit Rate (VBR)

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3bt
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8000 MB
RAM capacity: 8000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: USB port

Security

Feature: Video motion detection
Security algorithms: EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Alert notification type: E-mail
Feature: Privacy protection
Feature: Human and vehicle targets classification

Management features

Behavior analysis: Line crossing detection

Power

Power source type: PoE
Power consumption (typical): 14.3 W
Power consumption (max): 47.3 W

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 361 mm
Depth: 361 mm
Height: 179.1 mm
Weight: 4 kg

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1

Other features

Doesn't contain: CFR, PVC/BFR
