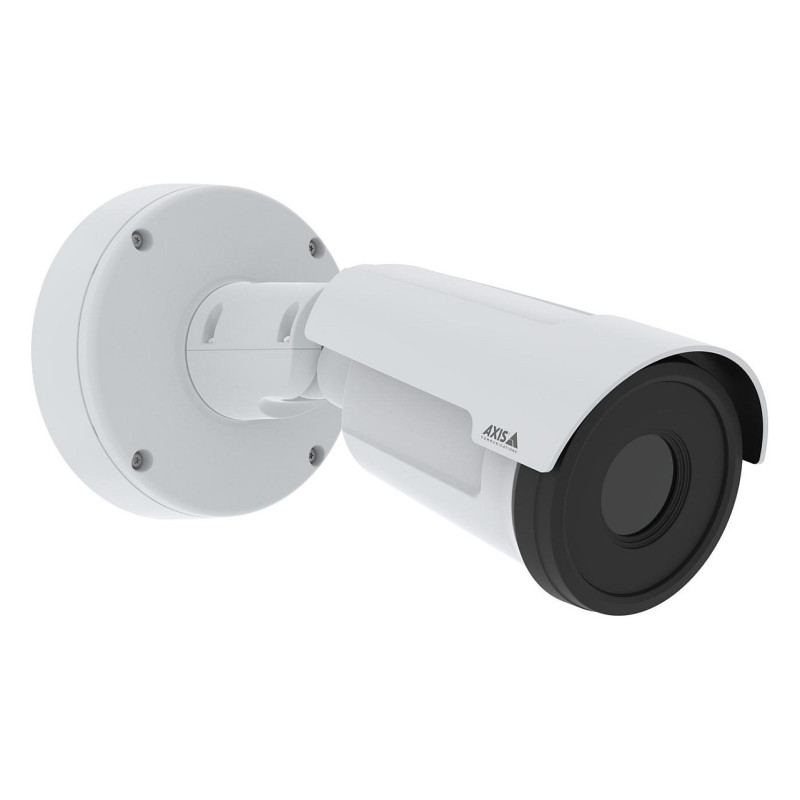

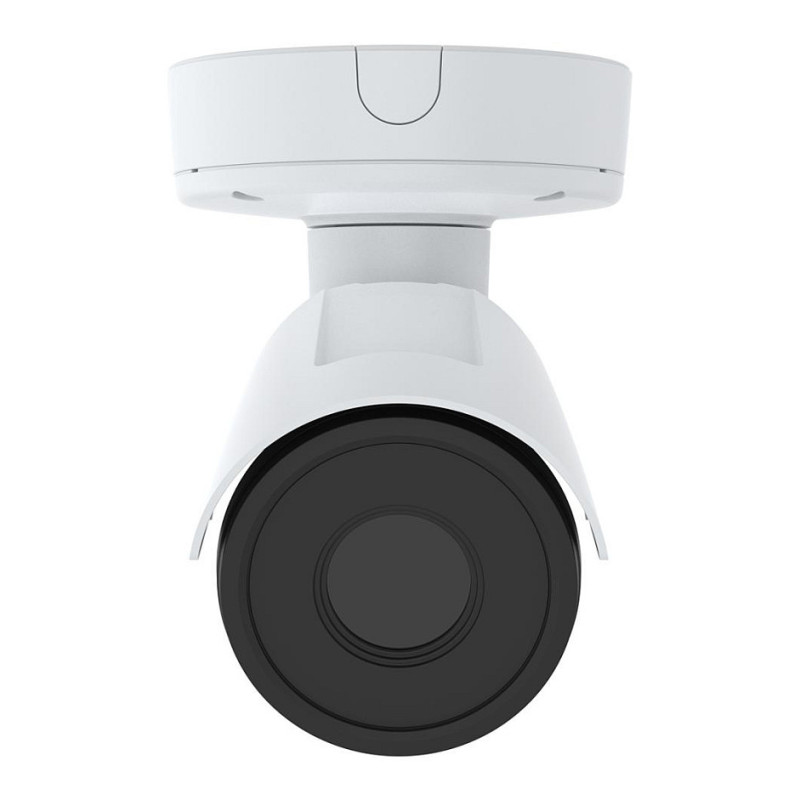

Axis 02174-001 security camera

Axis 02174-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Sensor type (thermal module): Noise equivalent temperature difference (NETD). Lens diameter: 7 mm

Ideal to improve operational efficiency, this thermometric camera lets you remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F). You'll know if your equipment is close to overheating and can act to avoid unwanted downtime. Supporting up to 10 configurable polygonal detection areas, you can monitor for specific temperature levels or change-rates. With early fire detection analytics, it's possible to monitor early signs of fire with smart filtering of potential false alarms. AXIS Q1961-TE includes built-in cybersecurity features to help safeguard your system. Furthermore, edge-to-edge technology lets you connect network speakers to enable audio alarms.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Thermal module
Processor model: ARTPEC-8
Feature: Built-in processor
Number of languages: 19
Thermal sensitivity (NETD): 40 mK
Certification: CSA, UL/cUL, UKCA, CE, KC

Design

Form factor: Bullet
Mounting type: Wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Lens viewing angle, horizontal: 55°
Camera pixel size: 17 µm

Image sensor

Sensor type (thermal module): Noise equivalent temperature difference (NETD)
Sensor type: Microbolometer

Lens system

Lens diameter: 7 mm
Maximum aperture number: 1.18

Video

Maximum resolution: 384 x 288 pixels
Video compression formats: H.264, H.265, M-JPEG
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Gain control type: Auto
Feature: Privacy masking

Audio

Audio system: 1-way
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Feature: Terminal block port
Feature: DC-in jack

Security

Feature: Temperature sensor
Temperature measurement range: -40 - 350 °C
Temperature measurement accuracy: 5 °C
Feature: Fire detection
Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: Mirror
Feature: Pixel counter
Feature: Digest authentication
Feature: Network access storage (NAS)

Power

Power source type: DC, PoE
Power consumption (typical): 4.1 W
Power consumption (max): 12.95 W
Power consumption (Power over Ethernet (PoE)): 4.3 W
DC output voltage: 10, 12, 15, 16, 24, 28

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Diameter: 13.2 cm
Length: 272 mm
Weight: 1.4 kg

Packaging content

Number of cameras: 1
Feature: Manual
Packaging content: Drill template, TORX L-keys, terminal block connectors, connector guard, cable gaskets, owner authentication key
