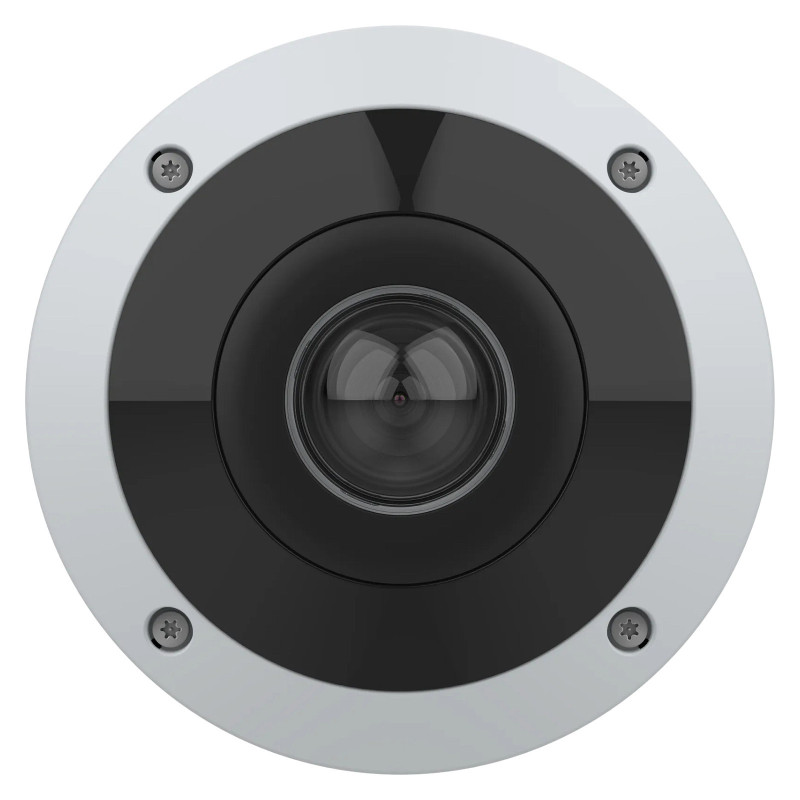

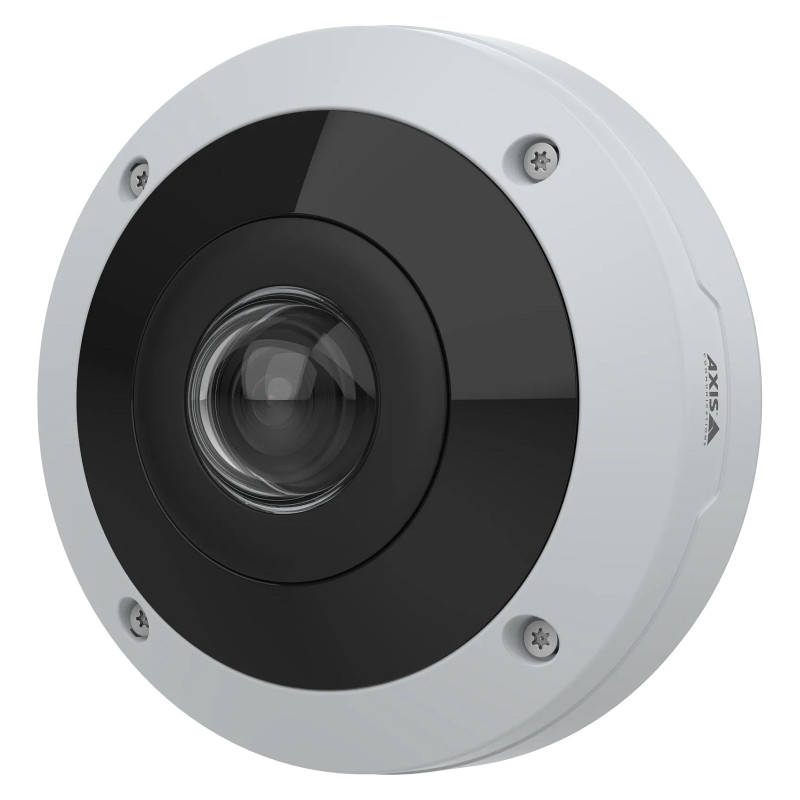

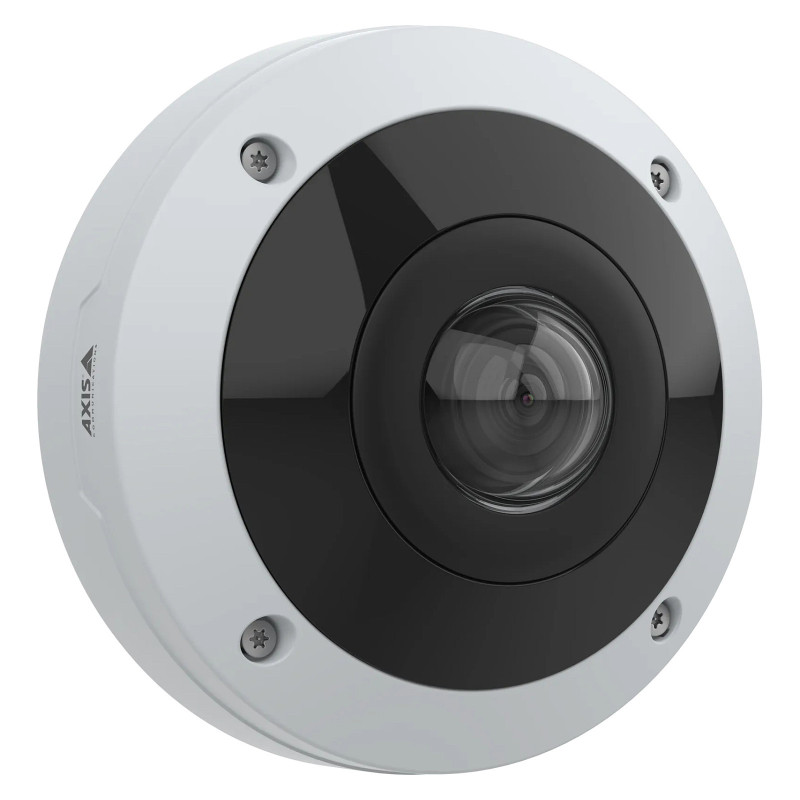

Axis M4347-PLVE

Axis M4347-PLVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.08 lx, Lens viewing angle, horizontal: 185°, Lens viewing angle, vertical: 185°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.6 mm (1 / 1.6"). Detect distance: 23.1 m, Observe distance: 9.2 m, Recognize distance: 4.6 m

This AI-powered camera uses the latest sensor technology to provide high-quality image resolution 24/7. It includes camera-side dewarped views. And with AXIS Audio Analytics, you'll know whenever something relevant happens, even when there's no visual indication.

Sharp images with great details
Using the latest sensor technology, AXIS M4347-PLVE offers 30% higher resolution than previous generations, reaching up to 2464 × 2464 pixels. Stereographic lens and Sharpdome 360 deliver outstanding image sharpness towards the edges and excellent corner image quality. It offers complete 180° or 360° coverage with no blind spots. Day/night functionality and built-in IR illumination ensure clear, reflection-free footage and excellent images even in low light or complete darkness. It supports up to four digital PTZ views, as well as panoramic, quad, corner, and corridor dewarped views. Furthermore, Axis Zipstream with AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements.

Powerful video and audio analytics
This AI-based camera comes with AXIS Object Analytics preinstalled to detect, classify, track, and count objects. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Plus, AI models are specifically trained for 360° fisheye views to ensure optimized performance. With built-in microphones and AXIS Audio Analytics preinstalled, it can detect critical sounds such as glass breaking, screams, and shouts, and measure noise pollution. Plus, directional audio detection provides the direction of the audio source and a visual overlay showing exactly where the sound is coming from.

Secure and easy- indoors and out
AXIS M4347-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With digital roll functionality, you can remotely adjust the rotation of the camera overview- no need to do it manually on each camera. It's also delivered factory-focused for ease of installation. And it's discreet, compact, flat design blends seamlessly into any environment. What's more, this robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F).

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Processor model: ARTPEC-9
Feature: Built-in processor
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Wall
Product colour: White
LED indicators: Yes
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0.08 lx
Lens viewing angle, horizontal: 185°
Lens viewing angle, vertical: 185°
Camera pixel size: 2 µm
Camera shutter speed: 1/111000 - 2 s

Image sensor

Optical sensor size: 25.4 / 1.6 mm (1 / 1.6")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 23.1 m
Observe distance: 9.2 m
Recognize distance: 4.6 m
Maximum aperture number: 2
Identify distance: 2.3 m
Fixed focal length: 1.7 mm
Closest focusing distance: 0.1 m

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2464 x 2464 pixels
Total megapixels: 6 MP
Video compression formats: H.264, H.265, M-JPEG
Feature: Video recording
Frame rate: 60 fps
Feature: Video streaming
Gain control type: Auto
Image quality adjustment: Saturation, Contrast, Brightness, Sharpness, White balance

Audio

Audio system: 1-way
Signal-to-Noise Ratio (SNR): 55 dB
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3at
Feature: Quality of Service (QoS) support
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Video motion detection
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Face detection, Human detection, Vehicle detection
Feature: Human and vehicle targets classification
Feature: Network access storage (NAS)

Management features

Feature: Cloud-managed

Power

Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 7.1 W
Power consumption (Power over Ethernet (PoE)) (max): 16.7 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Operating relative humidity (H-H): 10 - 100%

Weight & dimensions

Weight: 880 g

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1
Feature: Manual

Other features

Doesn't contain: Brominated Flame Retardant (BFR), CFR, PVC
