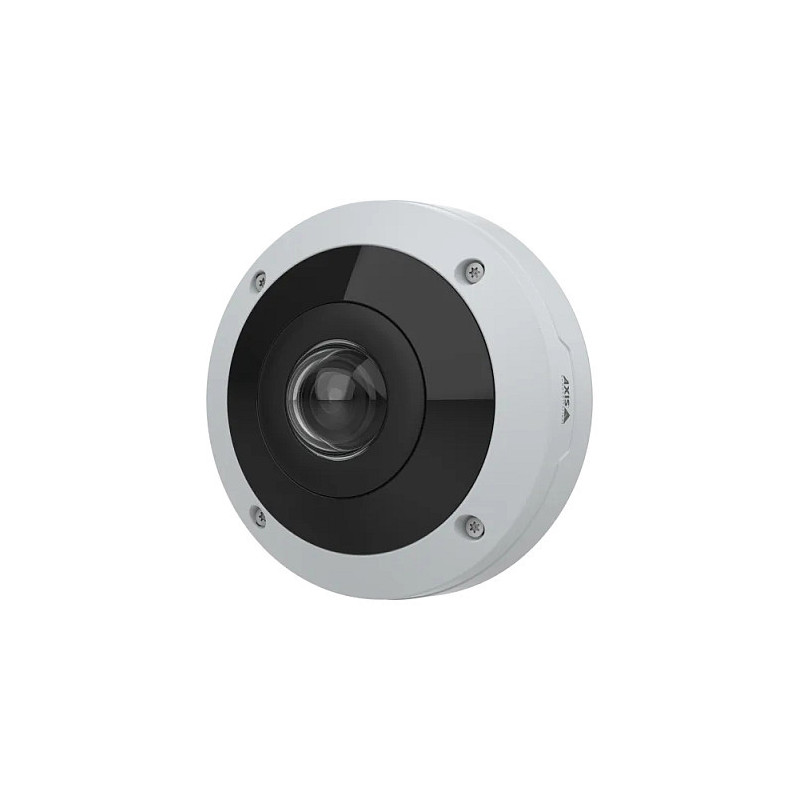

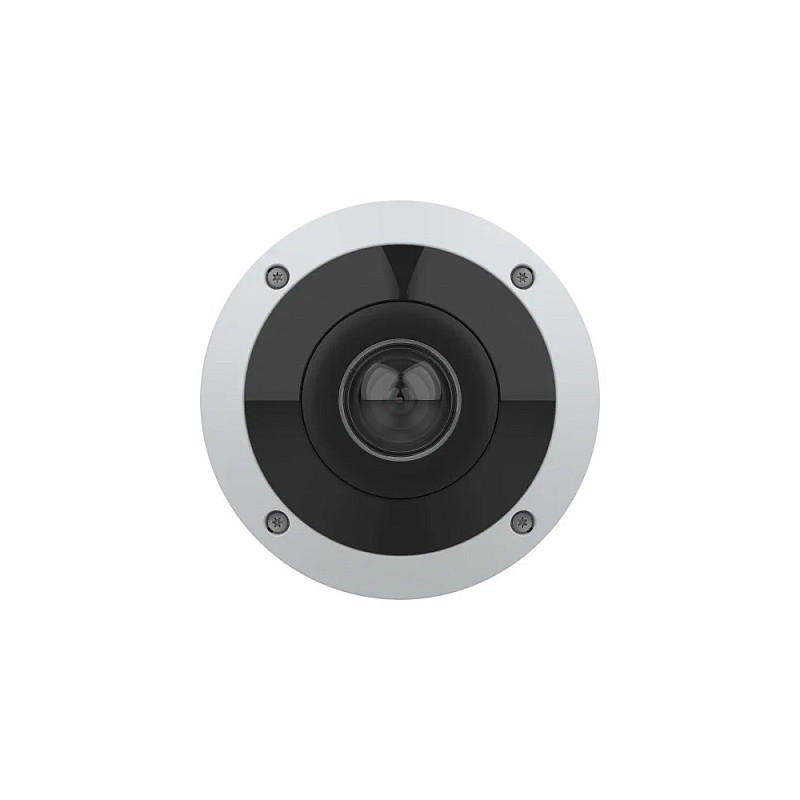

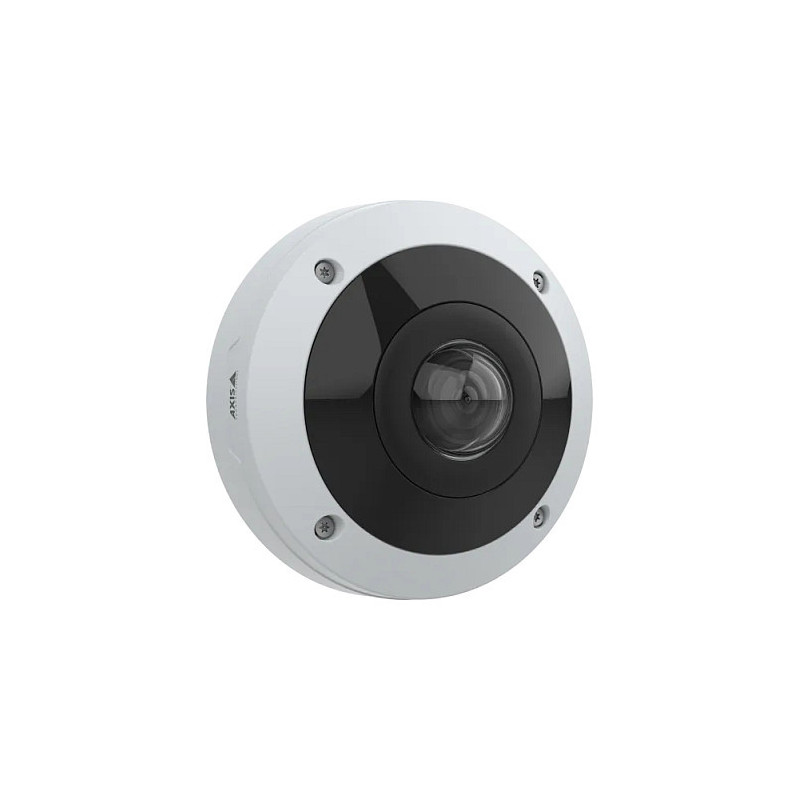

Axis 03131-001 security camera

Axis 03131-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.08 lx, Lens viewing angle, horizontal: 185°, Lens viewing angle, vertical: 185°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.6 mm (1 / 1.6"). Fixed focal length: 1.7 mm, Closest focusing distance: 0.1 m

This fisheye camera uses the latest sensor technology to provide high-quality image resolution 24/7. AI-powered, it includes camera-side dewarped views for clear, natural views with improved usability, coverage, and accuracy.

Sharp images with great details
Using the latest sensor technology, AXIS M4338-PLVE offers 30% higher resolution than previous generations, reaching up to 3536x3536 pixels. Stereographic lens and Sharpdome 360 deliver outstanding image sharpness towards the edges and excellent corner image quality. It offers complete 180° or 360° coverage with no blind spots. Day/night functionality and built-in IR illumination ensure clear, reflection-free footage and excellent images even in low light or complete darkness. It supports up to four digital PTZ views, as well as panoramic, quad, corner, and corridor dewarped views. Furthermore, Axis Zipstream with AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements.

Powerful analytics
This AI-based camera includes a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. With AXIS Object Analytics preinstalled, it can detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. Plus, AI models are specifically trained for 360° fisheye views to ensure optimized performance.

Secure and easy- indoors and out
AXIS M4338-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With digital roll functionality, you can remotely adjust the rotation of the camera overview- no need to do it manually on each camera. It's also delivered factory-focused for ease of installation. And it's discreet, compact, flat design blends seamlessly into any environment. What's more, this robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F).

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Feature: Infrared (IR) cut-off filter

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0.08 lx
Lens viewing angle, horizontal: 185°
Lens viewing angle, vertical: 185°
Camera shutter speed: 1/111000 - 2 s

Image sensor

Optical sensor size: 25.4 / 1.6 mm (1 / 1.6")
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 2
Fixed focal length: 1.7 mm
Closest focusing distance: 0.1 m

Night vision

Feature: Night vision
LED type: IR

Video

Maximum resolution: 3536 x 3536 pixels
Total megapixels: 12 MP
Video compression formats: H.264, H.265
Frame rate: 60 fps

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Feature: Ethernet LAN
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDXC, MicroSDHC
Flash memory: 8000 MB
RAM capacity: 4000 MB

Security

Feature: Video motion detection
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Human detection, Vehicle detection, Line crossing detection, Region entrance detection, Moving object

Power

Power source type: PoE

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Weight: 858 g

Packaging content

Number of cameras: 1
