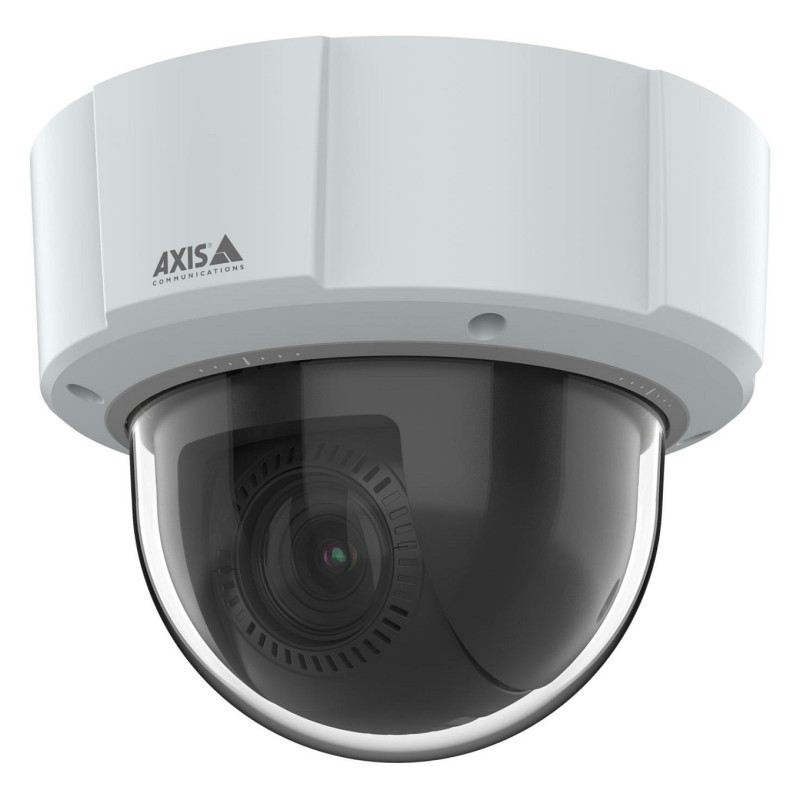

Axis M5526-E 50 Hz

Axis M5526-E 50 Hz. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 59.1 - 6.5°, Lens viewing angle, vertical: 35 - 3.67°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Optical zoom: 10x, Digital zoom: 12x, Focal length range: 4.7 - 47 mm
AXIS M5526-E PTZ Camera
Ideal both indoors and out, this affordably priced camera offers great image quality in 4 MP with 10x optical zoom. And, with a deep learning processing unit, it enables advanced features and powerful analytics that run on the edge.
Don't miss a thing
AXIS M5526-E delivers great image quality in 4 MP. It offers a continuous 360° pan and with 10x optical zoom, you can benefit from sweeping overviews and zoom-in to get the details. Thanks to autofocus it ensures detailed, sharp images—every time. Plus, day/night functionality provides high-quality black-and-white video with improved sensitivity in even lower light. Furthermore, it includes Forensic WDR for clarity when there's both dark and light areas in the scene.
Flexible installations—indoors and out
AXIS M5526-E is compatible with all Axis PTZ mounts and can be mounted both indoors and out. It comes with three scene profiles (indoor, outdoor, and forensic) with different image settings optimized to suit specific scenarios. Plus, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Built on ARTPEC 8, the latest Axis system-on-chip (SoC), it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And thanks to AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs.
Enjoy more for less
This affordably priced camera offers great value for money. It delivers great image quality in 4MP. And with audio and I/O connectivity, you can integrate peripheral equipment for instance a microphone to extend the value of your system. Axis Zipstream with H.264 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Plastic, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK09

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.01 lx
Lens viewing angle, horizontal: 59.1 - 6.5°
Lens viewing angle, vertical: 35 - 3.67°
Tilt angle range: 0 - 90°
Tilt speed: 150 °/sec
Pan range: 0 - 360°
Pan speed: 150 °/sec
Camera pixel size: 1.998 µm
Camera shutter speed: 1/27000 - 0.2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 10x
Digital zoom: 12x
Number of lenses: 1
Focal length range: 4.7 - 47 mm
Auto focus: Yes
Maximum aperture number: 3
Minimum aperture number: 1.6
Detect distance (wide): 96 m
Detect distance (tele): 938 m
Observe distance (wide): 38 m
Observe distance (tele): 373 m
Recognize distance (wide): 19 m
Recognize distance (tele): 186 m
Identify distance (wide): 10 m
Identify distance (tele): 93 m

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 320 x 180, 1600 x 1200 (UXGA)
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes

Audio

Audio system: 2-way
Audio system full duplex: Yes
Audio formats supported: AAC-LC, G.711, LPCM, PCM
Sample rate: 48 kHz
Signal-to-Noise Ratio (SNR): 55 dB
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
ROM capacity: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Video motion detection: Yes
Active tampering alarm: Yes
Security algorithms: 802.1x RADIUS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Alert notification type: E-mail
Intelligent Video Surveillance (IVS) system features: Face detection, Human detection, Line crossing detection, Moving object, Vehicle detection
Pixel counter: Yes
Human and vehicle targets classification: Yes

Power

Power source type: PoE
Power consumption: 3.8 mA
Power consumption (typical): 4.2 W
Power consumption (max): 11.7 W
Power consumption (Power over Ethernet (PoE)): 12.95 W

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 15 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 165 mm
Depth: 165 mm
Height: 150 mm
Weight: 1 kg

Features

License plate recognition: Yes

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 1
Manual: Yes

Other features

Doesn't contain: PVC/BFR
