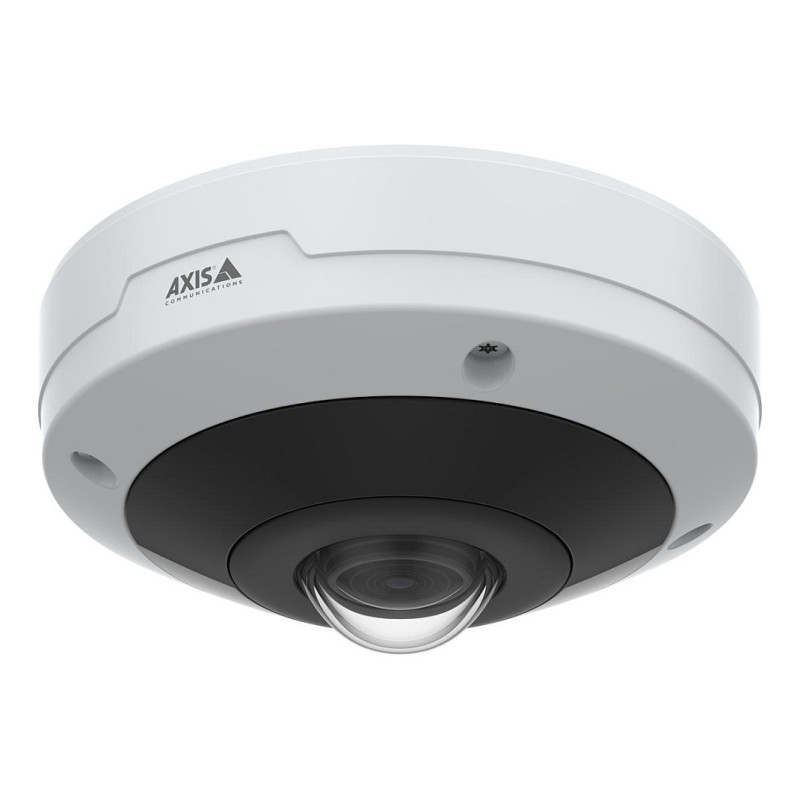

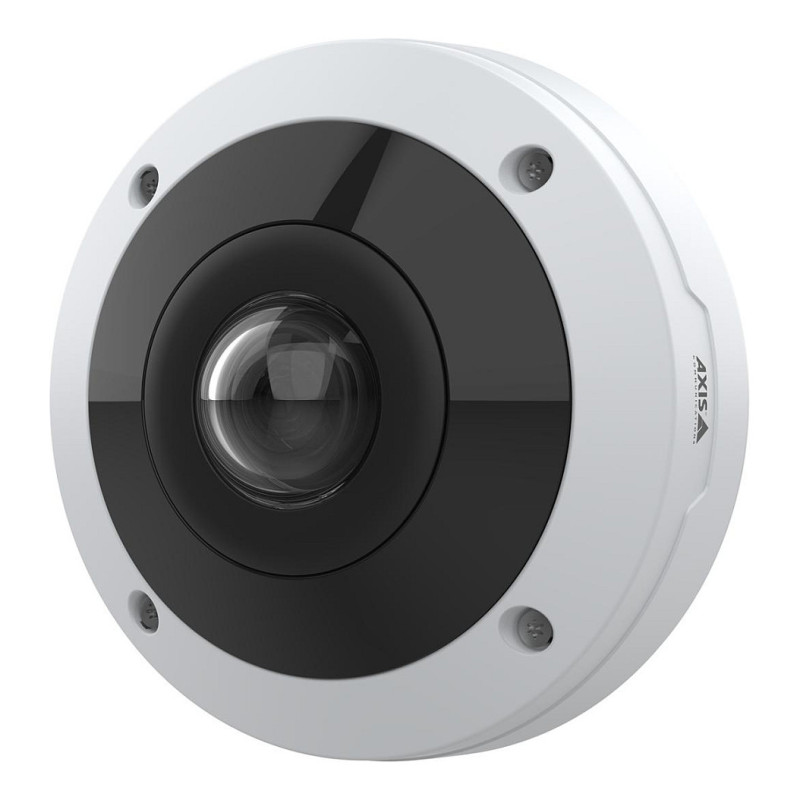

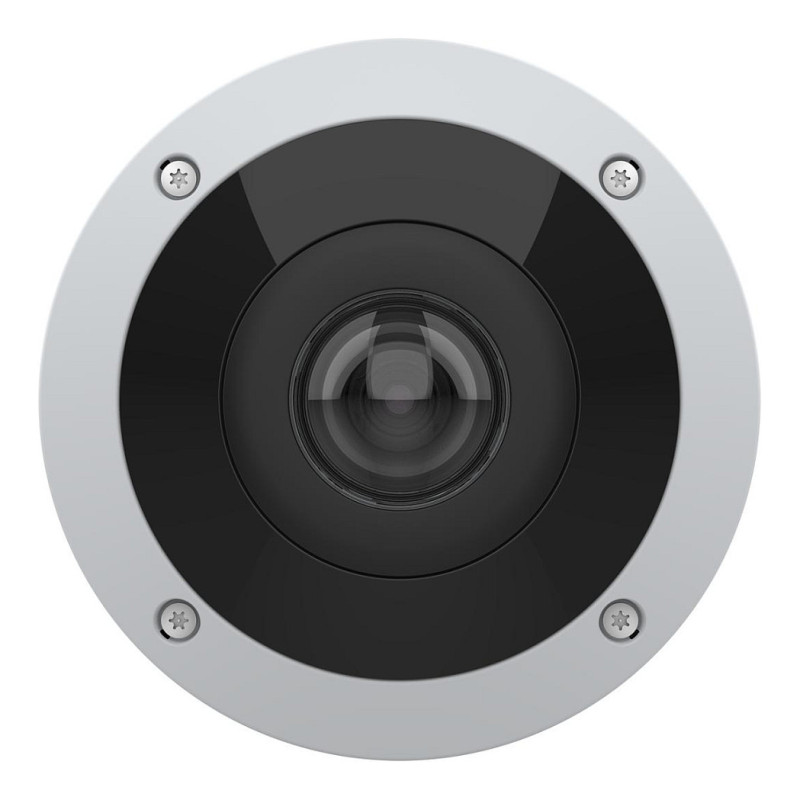

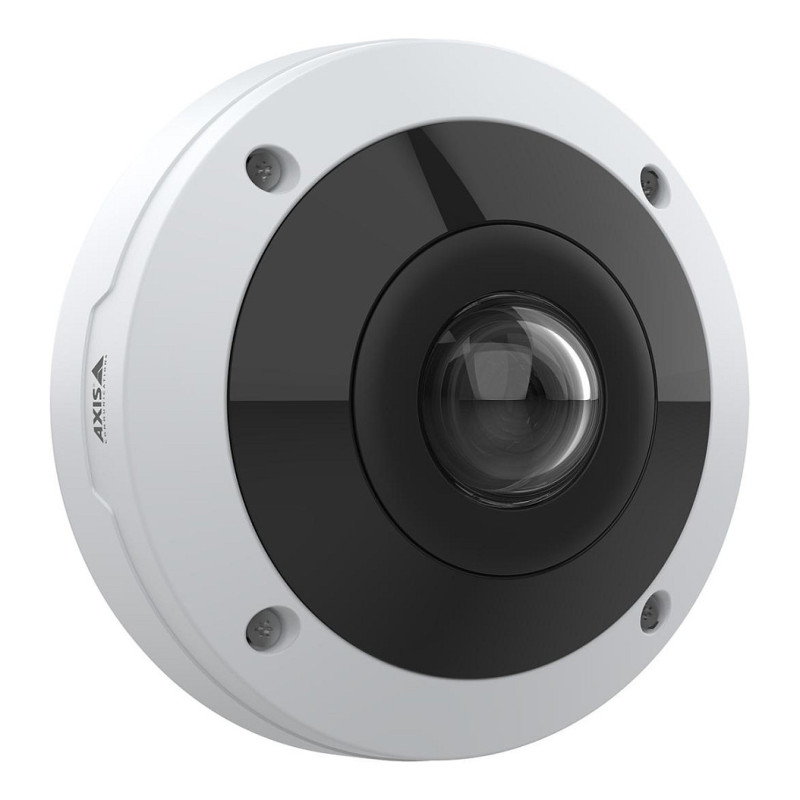

Axis M4318-PLVE

Axis M4318-PLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Fixed focal length: 2.2 mm
Sharp images
Featuring a stereographic lens and Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. Plus, Lightfinder ensures lifelike colors in low light. With day/night functionality and built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage and excellent image quality even in low light or complete darkness. Furthermore, AXIS M4318-PLVE supports digital PTZ views as well as dewarped views such as panorama, quad, corner, and corridor.
Deep learning on the edge
This high-performance camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before—on the edge. Additionally, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it's possible to detect and classify humans, vehicles, and types of vehicles—all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and easy
Built on ARTPEC-8, AXIS M4318-PLVE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This discreet, compact mini dome blends seamlessly into any environment. It's delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview- no need to do it manually on each camera. Furthermore, Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Preset point, Digital PTZ
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 20
Languages support: English, Spanish, Swedish, Italian, Polish, Thai, Finnish, Japanese, Portuguese, Turkish, Simplified Chinese, French, Traditional Chinese, Korean, Russian, Vietnamese, Czech, German, Dutch
Certification: CSA, UL/cUL, BIS, UKCA, CE, KC 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1,EN 61000-6-2, EN 61547Australia/New Zealand: RCM AS/NZS CISPR 32 Class ACanada: ICES-3(A)/NMB-3(A)Japan: VCCI Class AKorea: KS C 9835, KS C 9832 Class AUSA: FCC Part 15 Subpart B Class ARailway: IEC 62236-4IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3,IEC/EN 62471 risk group exempt, UN ECE R118, IS 13252IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B)

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Yes
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0.04 lx
Lens viewing angle, horizontal: 182°
Lens viewing angle, vertical: 182°
Camera shutter speed: 1/8100 - 1/2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.3 mm (1 / 2.3")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Fixed focus: Yes
Fixed focal length: 2.2 mm

Night vision

Night vision: Yes
Night vision distance: 15 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2992 x 2992 pixels
Total megapixels: 12 MP
Supported graphics resolutions: 2048 x 1536 (QXGA), 256 x 144, 3840 x 2160, 384 x 288, 2560 x 1920, 2880 x 2880
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Sharpness, Saturation
Text caption overlay: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 2-way

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Security algorithms: TLS, 256-bit AES-XTS, EAP-TLS
HTTPS encryption: Yes
Alert notification type: E-mail
Privacy protection: Yes
Pixel counter: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes

Management features

Behavior analysis: Line crossing detection

Power

Power source type: PoE
Power consumption (typical): 6.4 W
Power consumption (max): 12.95 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 149 mm
Depth: 149 mm
Height: 70 mm
Weight: 860 g

Sustainability

Compliance certificates: RoHS

Packaging content

Number of cameras: 1
Manual: Yes

Other features

Doesn't contain: PVC/BFR
