Axis M3905-R

Axis M3905-R. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 21.1 m, Observe distance: 7.4 m, Recognize distance: 4.2 m

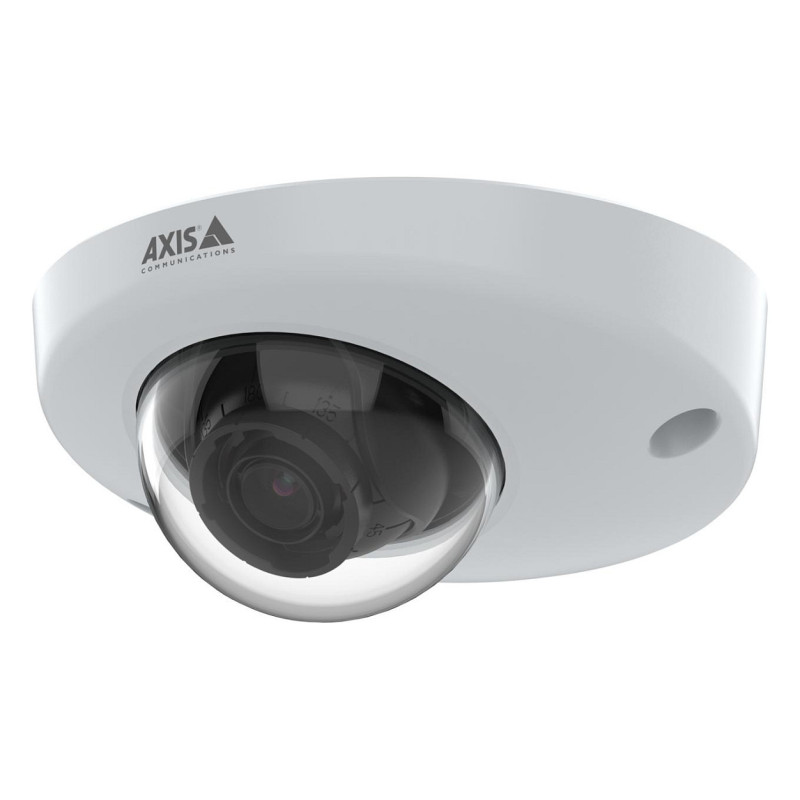

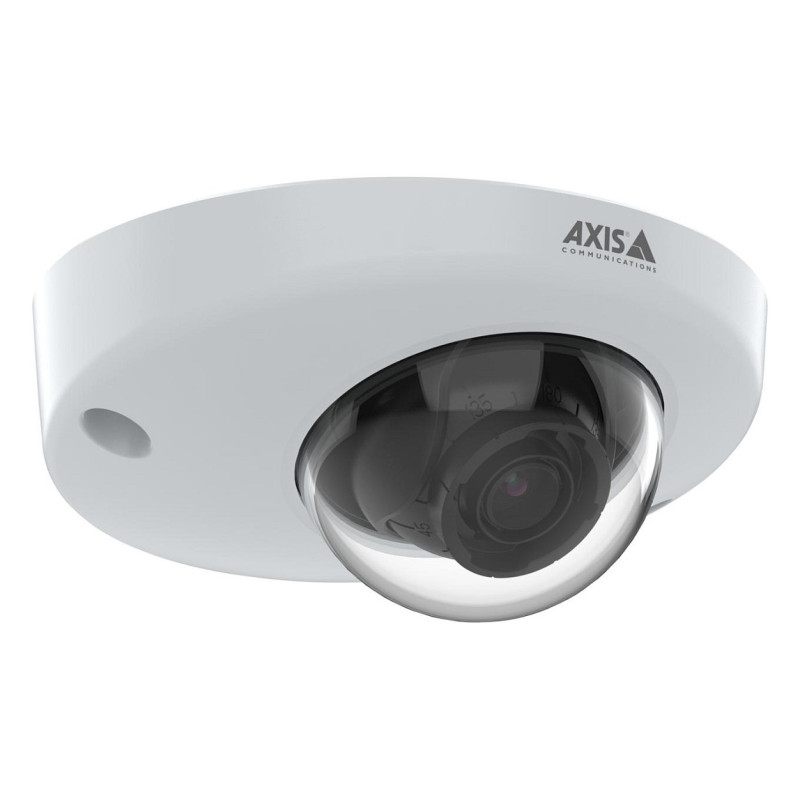

AXIS M3905-R Dome Camera

Specifically designed for indoor surveillance onboard buses, this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.

Optimized for surveillance onboard buses

This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Axis Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS M3905-R can distinguish the color of traffic lights in dark scenes. Furthermore, this product comes in two different product variations with different lens options. And additionally, there are various lens options available as accessories for customized monitoring purposes.

For tough onboard conditions

AXIS M3905-R complies with transportation-industry regulations for buses including fire-safety. This rugged indoor camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installation. Additionally, when used together with AXIS TP3826-E Housing it can be mounted on the outside of a vehicle to withstand tough weather.

Secure and cost-effective

This onboard indoor camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that's perfect for onboard conditions.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Tour recording
Feature: Preset points
Feature: Wide Dynamic Range (WDR)

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Aluminium
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.02 lx
Angle of rotation: 350°
Lens viewing angle, horizontal: 107°
Lens viewing angle, vertical: 56°
Tilt angle range: 15 - 90°
Pan range: -30 - 30°
Camera pixel size: 2.8 µm
Camera shutter speed: 1/19000 - 1/5 s
Number of Privacy masking areas: 32

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 21.1 m
Observe distance: 7.4 m
Recognize distance: 4.2 m
Maximum aperture number: 1.2
Identify distance: 2.1 m
Fixed focal length: 2.8 mm
Closest focusing distance: 0.3 m

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: H.264, H.265, M-JPEG
Supported graphics resolutions: 320 x 240, 640 x 360, 640 x 400, 1280 x 800, 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Sharpness
Feature: Privacy masking
Bit rate control: Variable Bit Rate (VBR)

Network

Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Security

Feature: Password protection
Feature: Video motion detection
Security algorithms: 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP
Alert notification type: E-mail
Feature: Pixel counter
Feature: Digest authentication

Power

Power source type: PoE
Power consumption (typical): 2.2 W
Power consumption (max): 3.8 W

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%

Weight & dimensions

Width: 110 mm
Depth: 110 mm
Height: 50 mm
Weight: 241 g

Sustainability

Compliance certificates: REACH, RoHS

Packaging content

Number of cameras: 10
Feature: Manual

Other features

Doesn't contain: CFR, PVC/BFR
