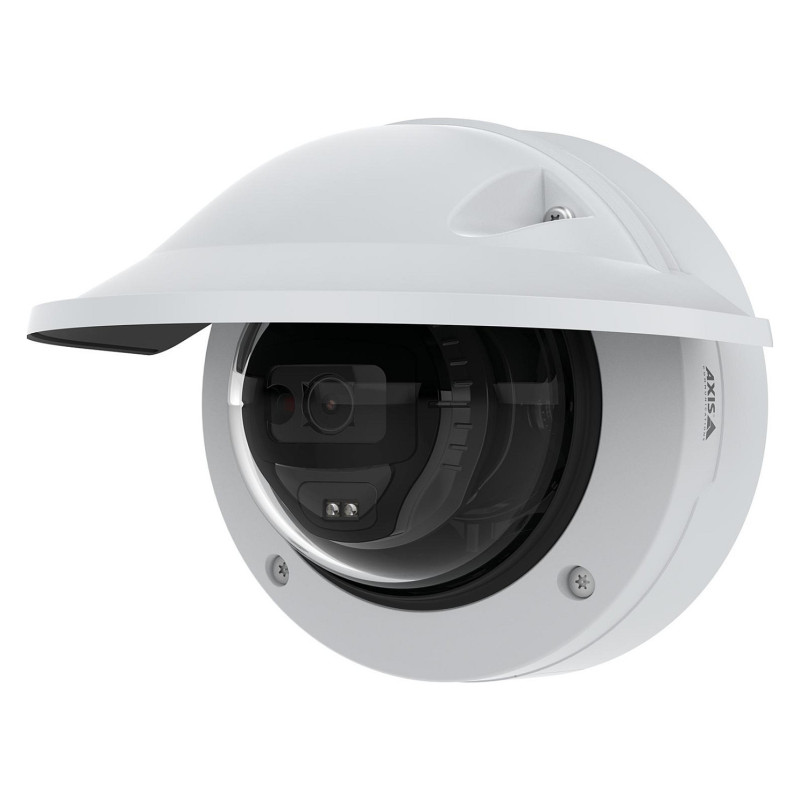

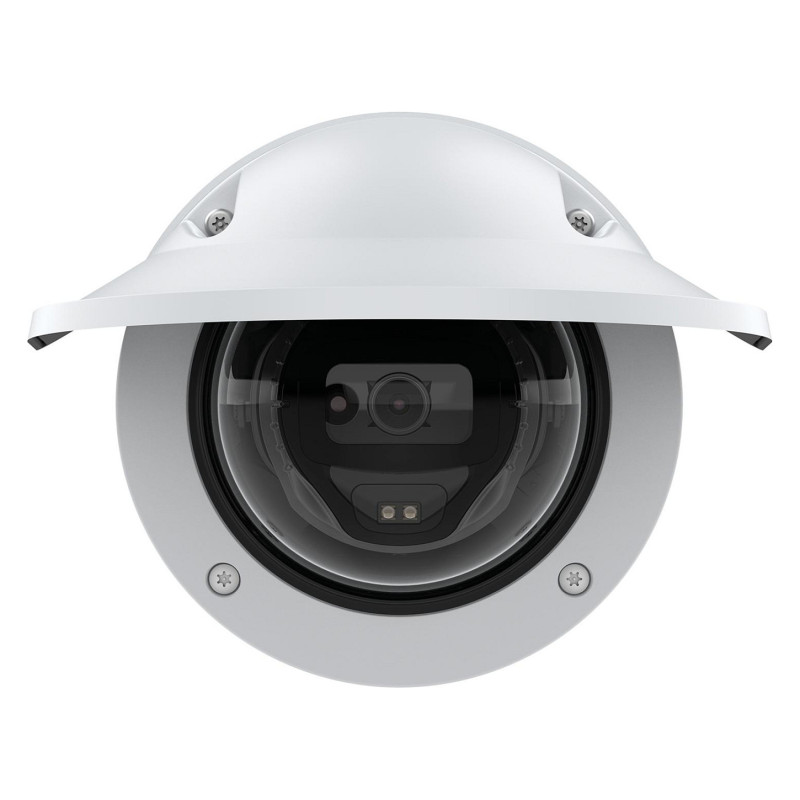

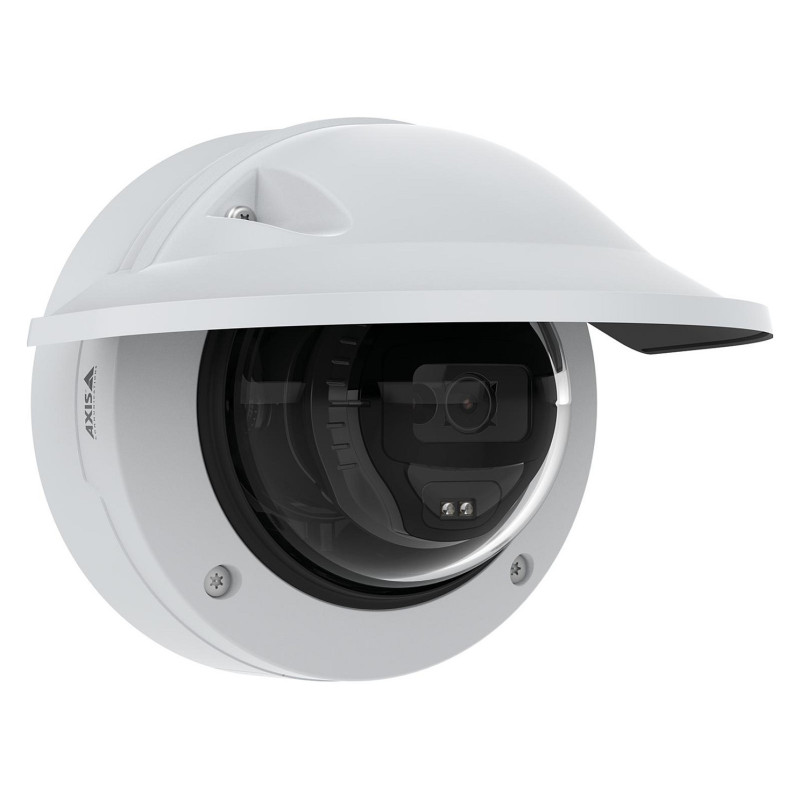

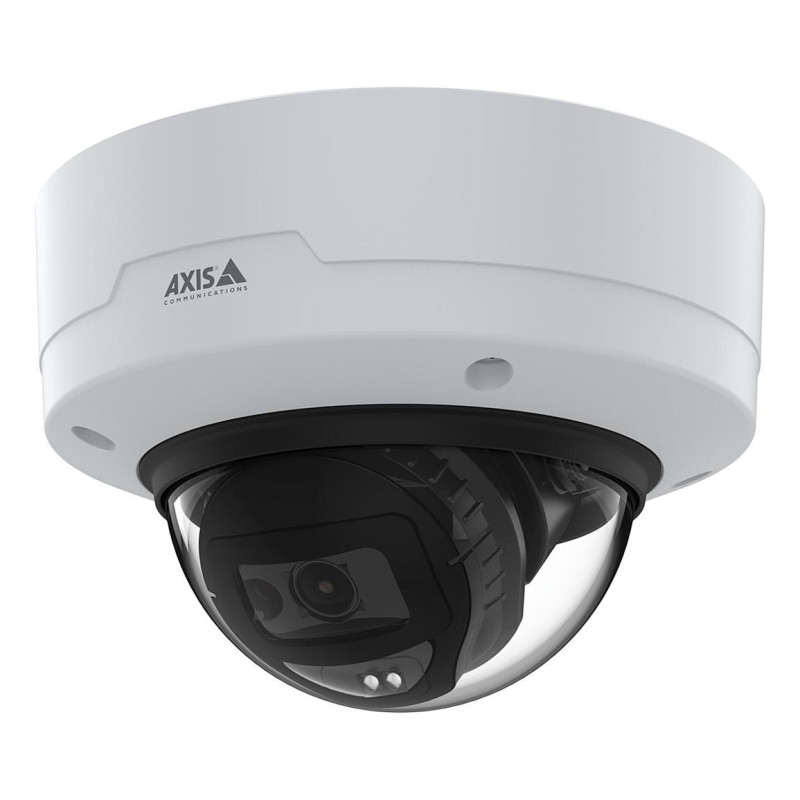

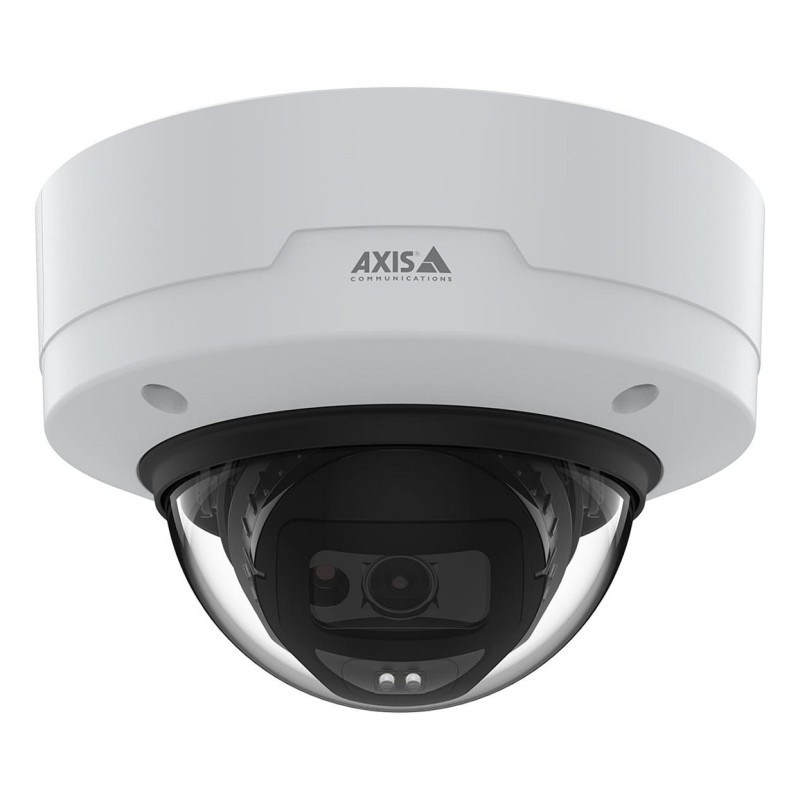

Axis M3216-LVE

Axis M3216-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.16 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.9 mm, Closest focusing distance: 1 m

This cost-effective fixed focal dome offers Lightfinder, Forensic WDR, and OptimizedIR, and ensures excellent image quality under any light conditions. Built on ARTPEC-8, it includes a deep learning processing unit enabling powerful analytics based on deep learning on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. And AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate for instance a microphone to extend the value of your system. Furthermore, built-in cybersecurity features safeguard your system.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Plastic, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10
Feature: Fog proof

Camera

Minimum illumination: 0.16 lx
Angle of rotation: 190°
Lens viewing angle, horizontal: 102°
Lens viewing angle, vertical: 73°
Tilt angle range: -10 - 80°
Pan range: 0 - 190°
Camera shutter speed: 1/50000 - 1/5 s

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Minimum aperture number: 2
Fixed focal length: 2.9 mm
Closest focusing distance: 1 m

Night vision

Feature: Night vision
LED type: IR

Video

Maximum resolution: 2688 x 1512 pixels
Video compression formats: H.264, H.265
Frame rate: 30 fps
Feature: Video streaming
Feature: Privacy masking

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in

Security

Security algorithms: EAP-TLS, HTTPS
Feature: HTTPS encryption

Power

Power source type: PoE
Power consumption (Power over Ethernet (PoE)): 4.8 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 102 mm
Diameter: 14.9 cm
Weight: 791 g

Packaging content

Number of cameras: 1
