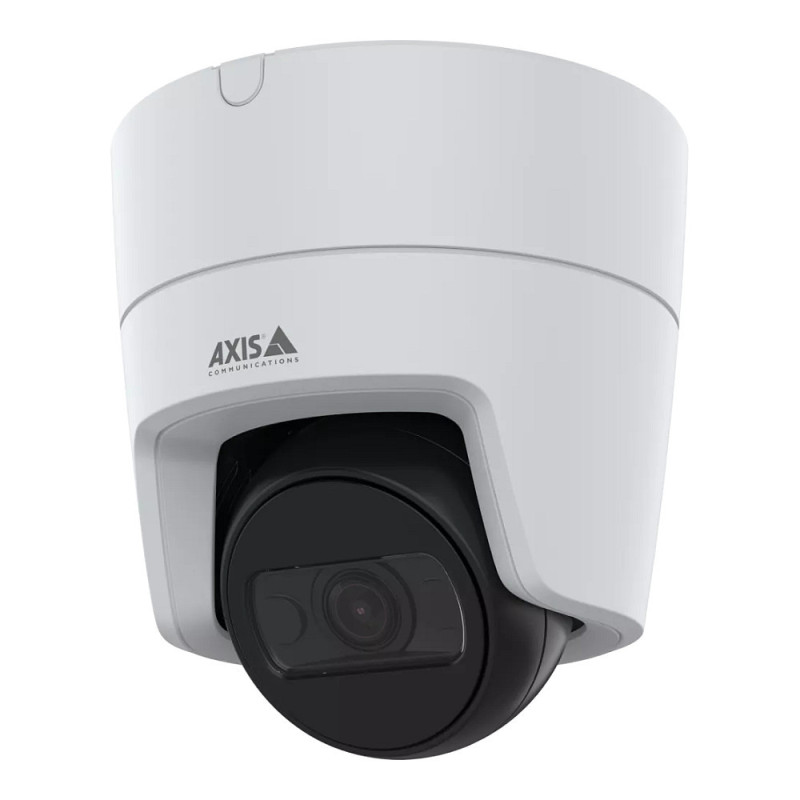

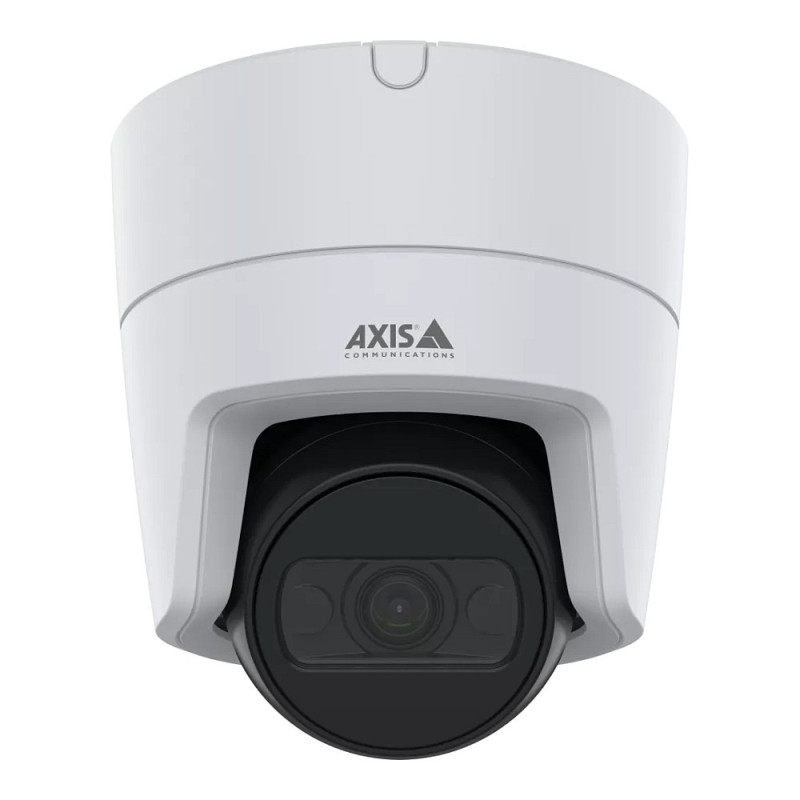

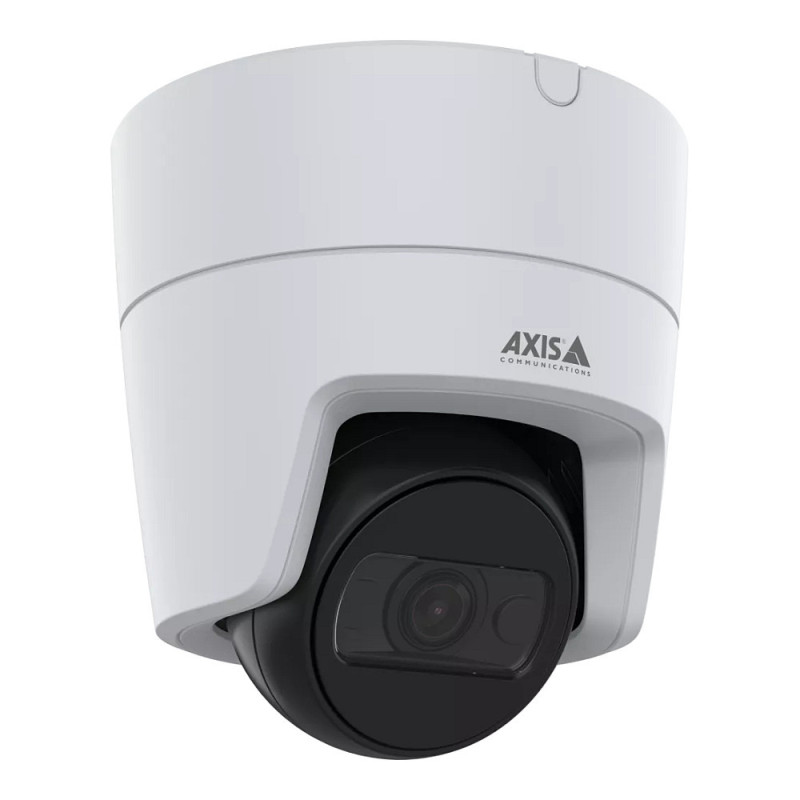

Axis M3128-LVE

Axis M3128-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.22 lx, Angle of rotation: 95°, Vertical field of view (thermal module): 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
This turret-style, AI-powered dome camera delivers great 8 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.
Great image quality
AXIS M3128-LVE offers great 8 MP resolution with 110° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there's no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene.
Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it's available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMIEN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1,EN 61000-6-2Australia/New Zealand: RCM AS/NZS CISPR 32 Class ACanada: ICES(A)/NMB(A)Japan: VCCI Class AKorea: KC KN35, KC KN32 Class A, KS C 9835,KS C 9832 Class AUSA: FCC Part 15 Subpart B Class A

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
Housing material: Plastic
Protection features: Impact resistant, Weather resistant
International Protection (IP) code: IP66
IK code: IK08
Weatherproof: Yes

Camera

Minimum illumination: 0.22 lx
Angle of rotation: 95°
Vertical field of view (thermal module): 60°
Horizontal field of view (thermal module): 110°
Tilt angle range: 0 - 60°
Pan range: -180 - 180°
Camera pixel size: 1.45 µm
Camera shutter speed: 1/71500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Panoramic camera

Sensor type (panoramic camera): CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Number of lenses: 1
Focal length range: 2.9 mm
Normal focusing range: 0.5 m
Detect distance (wide): 80 m
Observe distance (wide): 31.7 m
Recognize distance (wide): 16 m
Identify distance (wide): 8 m

Night vision

Night vision: Yes
Night vision distance: 20 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Video formats supported: AVC, H.264, H.265, HEVC
Video compression formats: MPEG, MPEG4
Supported graphics resolutions: 160 x 90, 3840 x 2160
Supported video modes: 1080p
Frame rate: 15 fps
Video streaming: Yes

Audio

Built-in speaker(s): Yes
Audio system: 2-way
Audio formats supported: AAC-LC, ADPCM, LPCM, PCM
Sample rate: 48 kHz
Signal-to-Noise Ratio (SNR): 55 dB

Network

Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 2048 MB

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
Security algorithms: HTTPS
Intelligent Video Surveillance (IVS) system features: Human detection, Vehicle detection
Pixel counter: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes

Power

Power source type: PoE
Power consumption (typical): 4.3 W
Power consumption (max): 10.5 W

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Height: 93 mm
Diameter: 10.1 cm
Weight: 390 g

Sustainability

Compliance certificates: Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA)

Packaging content

Number of cameras: 1
Manual: Yes

Other features

Doesn't contain: PVC
