Axis M3125-LVE

Axis M3125-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 40 m, Observe distance: 15.9 m, Recognize distance: 8 m

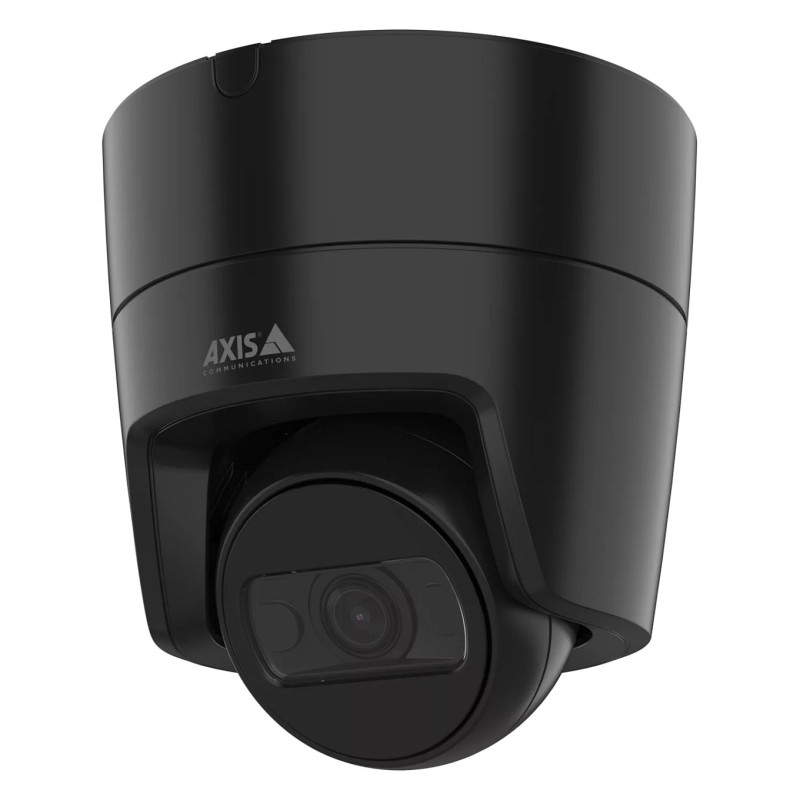

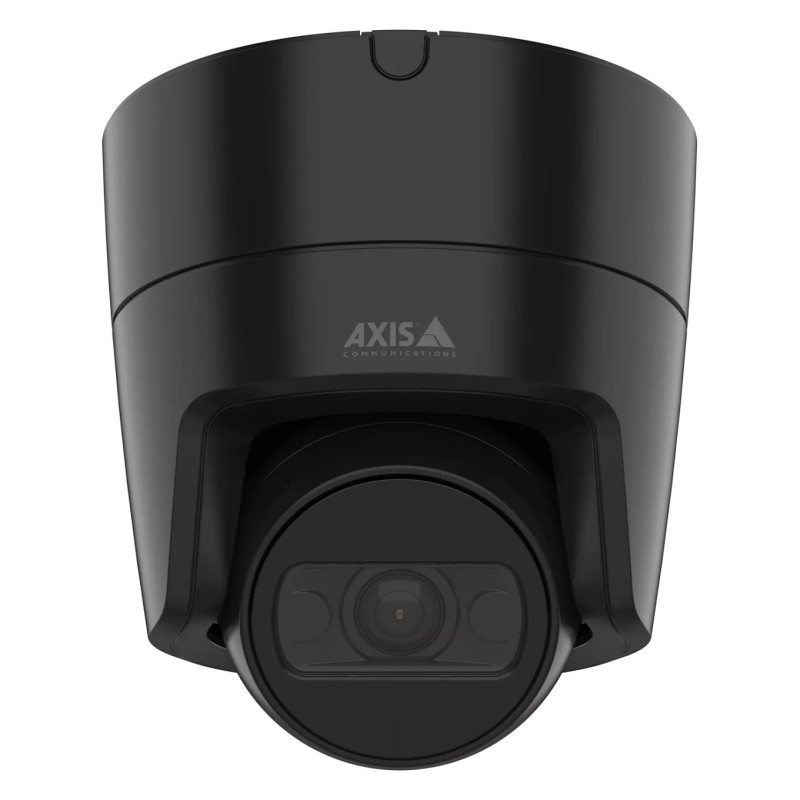

AXIS M3125-LVE Dome Camera

This turret-style, AI-powered dome camera delivers great 2 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.

Great image quality

AXIS M3125-LVE offers great 2 MP resolution with 110° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there's no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene. And Axis Lightfinder technology ensures increased light sensitivity and clear colors in low light.

Powerful with strong security

Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Flexible and outdoor-ready

This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it's available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Dynamic range: 110 dB

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP66
IK code: IK08

Camera

Minimum illumination: 0 lx
Angle of rotation: 95°
Lens viewing angle, horizontal: 110°
Lens viewing angle, vertical: 60°
Tilt angle range: 0 - 60°
Pan range: -180 - 180°
Camera shutter speed: 1/25000 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Detect distance: 40 m
Observe distance: 15.9 m
Recognize distance: 8 m
Identify distance: 4 m
Fixed focal length: 2.9 mm

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 60 fps

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Flash memory: 512 MB
Internal memory: 1024 MB

Power

Power source type: PoE
Power consumption (typical): 3.7 W
Power consumption (max): 10.5 W

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 101 mm
Depth: 87 mm
Height: 101 mm
Weight: 390 g

Packaging content

Number of cameras: 1
