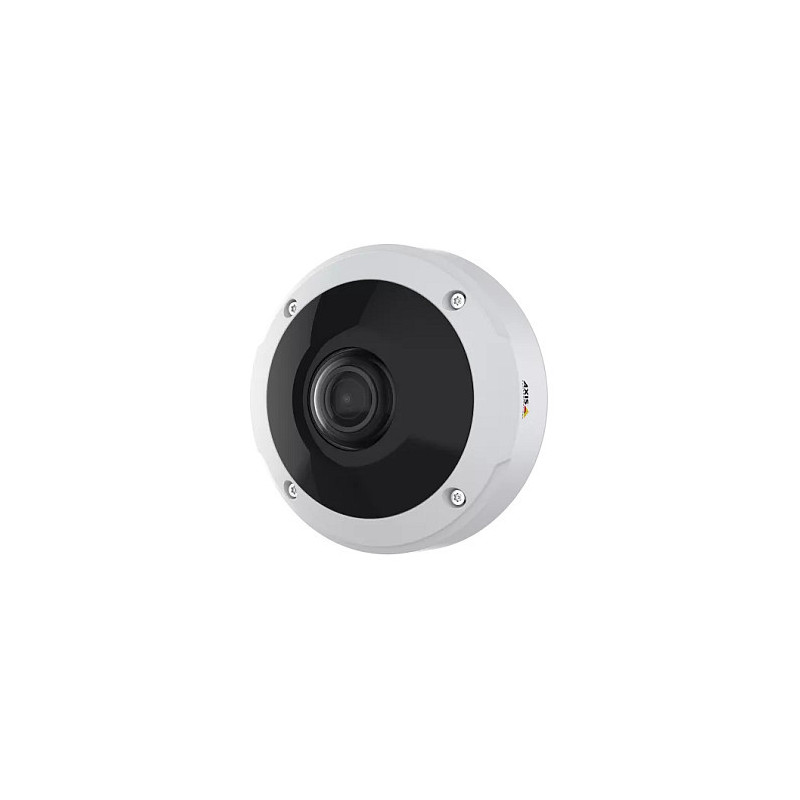

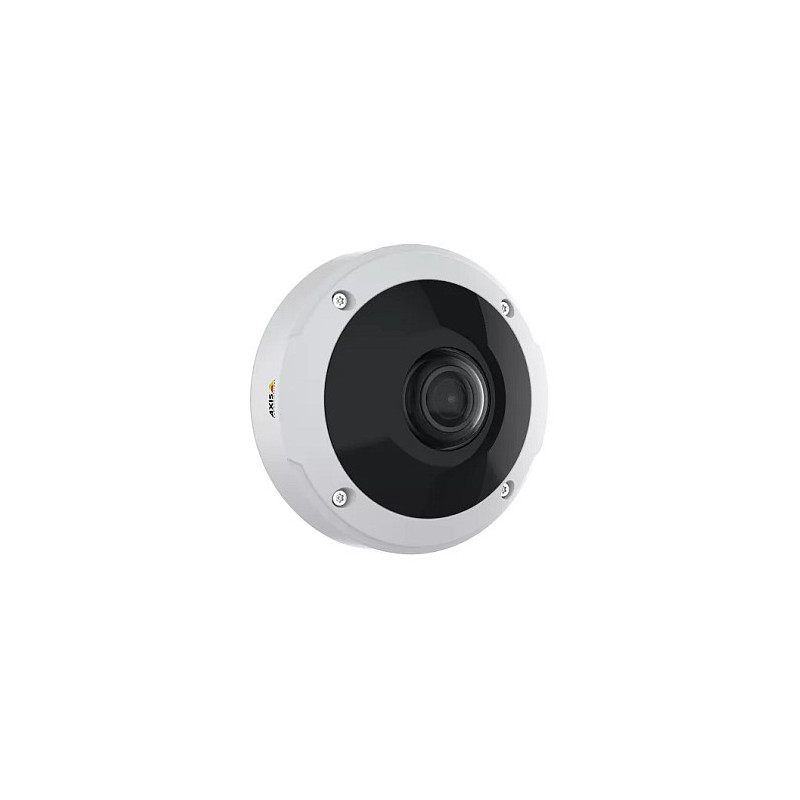

Axis M3057-PLR

Axis M3057-PLR. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 360°, Lens viewing angle, horizontal: 183°, Lens viewing angle, vertical: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Fixed focal length: 1.56 mm

Specifically designed for onboard surveillance, this easy-to-install camera delivers a complete 180° or 360° overview regardless of light conditions. Built-in cybersecurity features help prevent unauthorized access and safeguard your system.

Optimized for the transportation industry
Specifically designed for onboard surveillance, AXIS M3057-PLR Mk II complies with transportation industry standards including EN50155 and EN45545-2. Including an M12 connector, it can withstand vibrations ideal for installation in trains and buses. This ruggedized IK10, IP66/67-rated camera can withstand harsh environments. Plus, an active tampering alarm lets you know if your camera has been tampered with. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

See everything 24/7
This 6 MP panoramic camera offers 360° wide area coverage with just one camera. Ideal for onboard surveillance, you can use one video stream to produce any dewarped views you'd like. It's possible to stream panorama, quad, corner, and corridor views directly from the camera. And you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously. Including Axis Lightfinder, it ensures sharp color images in low light. Plus, Forensic WDR delivers clarity even when there's both dark and light areas in the scene. Furthermore, thanks to Axis OptimizedIR it enables surveillance in total darkness.

Built-in cybersecurity features
AXIS M3057-PLR Mk II comes with built-in cybersecurity functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0 lx
Field of view (FOV) angle: 360°
Lens viewing angle, horizontal: 183°
Lens viewing angle, vertical: 183°
Camera shutter speed: 1/16000 - 1 s

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Fixed focus
Minimum aperture number: 2
Fixed focal length: 1.56 mm

Night vision

Feature: Night vision
Night vision distance: 20 m
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2016 x 2016 pixels
Total megapixels: 6 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 2560 x 1440, 2560 x 1920, 384 x 288, 1920 x 1440, 256 x 144
Frame rate: 60 fps
Feature: Video streaming

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
RAM capacity: 1024 MB

Security

Security algorithms: AES, FIPS 140-3

Management features

Feature: Cloud-managed

Power

Power source type: PoE
Power consumption (max): 12.2 W
Power consumption (Power over Ethernet (PoE)): 8.2 W

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 66 mm
Diameter: 14.9 cm
Weight: 760 g

Packaging content

Number of cameras: 1
Feature: Mounting brackets included
Feature: Drilling template included
