Axis F9114-B Mk II, Wired, Black, Green, 3840 x 2160 pixels, H.265, H.264, MPEG4, AVC, HEVC, M-JPEG, H.264, H.265 Pro, AVC, MPEG4, M-JPEG, 3840 x 2160, 2560 x 1944, 1920 x 1080 (HD 1080)
Axis F9114-B Mk II, Wired, Black, Green, 3840 x 2160 pixels, H.265, H.264, MPEG4, AVC, HEVC, M-JPEG, H.264, H.265 Pro, AVC, MPEG4, M-JPEG, 3840 x 2160, 2560 x 1944, 1920 x 1080 (HD 1080)
Guarantee
24 month
Delivery from Europe in
5 - 10
business days
Axis F9114-B Mk II. Connectivity technology: Wired. Product colour: Black, Green. Maximum resolution: 3840 x 2160 pixels, Video formats supported: H.265, H.264, MPEG4, AVC, HEVC, M-JPEG, Video compression formats: H.264, H.265 Pro, AVC, MPEG4, M-JPEG. Audio system: 1-way, Audio formats supported: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS, Signal-to-Noise Ratio (SNR): 55 dB. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, Networking standards: IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at, Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP,...

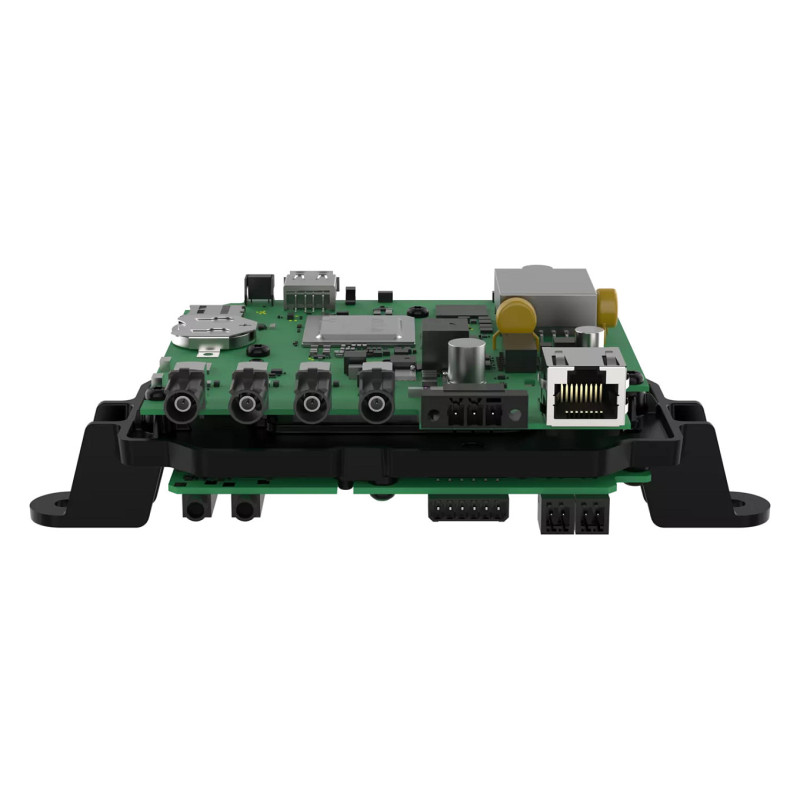

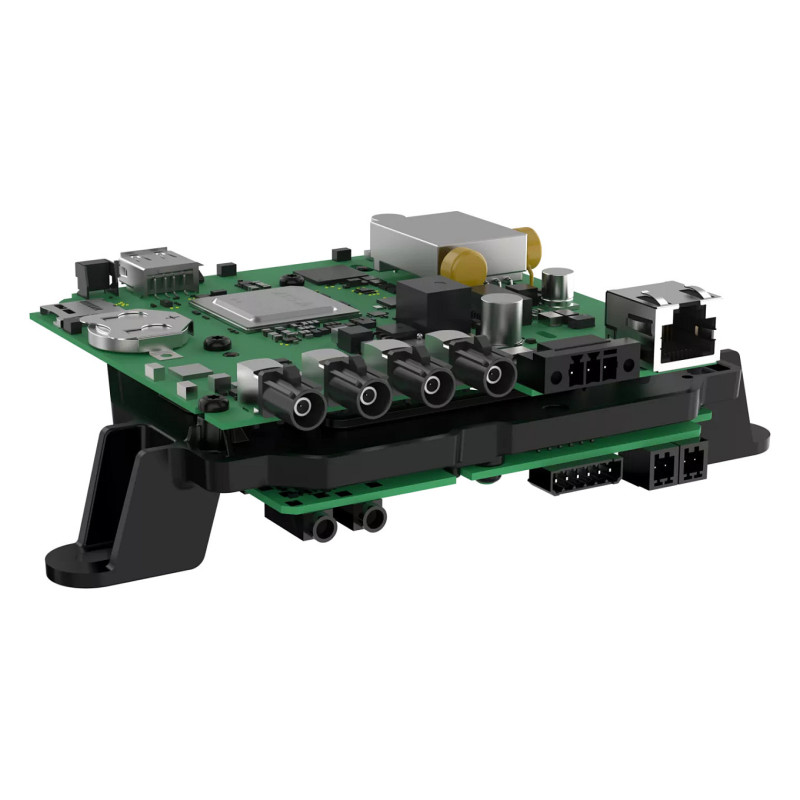

AXIS F9114-B Mk II Main Unit
This AI-powered, 4-channel barebone unit is ideal for integration into UL-certified end products. It offers up to 4K at 12/15 fps and includes two audio-in and four configurable I/O ports. Plus, FAKRA connectors ensure secure installation.
Flexible and cost-efficient
Sold without a casing, this UL-recognized barebone unit is perfect for integration into UL-certified end products. It offers up to four 4K channels at 12/15 fps per channel. With several sensor units to choose from, you can use up to four different sensor units simultaneously. Including two audio-in ports and four configurable I/O ports, it's possible to connect external microphones and wired accessories. This barebone main unit also ensures lower total cost of ownership compared to conventional camera solutions. For instance, it requires only one video management software (VMS) license instead of four. What's more, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements.
Gain valuable insights
Featuring a deep learning processing unit (DLPU), this AI-powered barebone unit lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. With AXIS Sensor Metrics Dashboard preinstalled, you can gather information from connected devices including the integrated accelerometer sensor, as well as external Modbus sensors and GPS devices. Furthermore, this barebone main unit includes a built-in USB port that's prepared for future applications.
Protected from the inside and out
This four-channel barebone unit includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Lever 2 certified, secure cryptographic key storage and operations. Furthermore, FAKRA connectors provide a tight connection with the cable ensuring ruggedized installation.
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Product colour: Black, Green
LED indicators: Yes
Maximum resolution: 3840 x 2160 pixels
Video formats supported: H.265, H.264, MPEG4, AVC, HEVC, M-JPEG
Video compression formats: H.264, H.265 Pro, AVC, MPEG4, M-JPEG
Supported graphics resolutions: 3840 x 2160, 2560 x 1944, 1920 x 1080 (HD 1080)
Frame rate: 60 fps
Feature: Video streaming
Image quality adjustment: Contrast, Brightness, Sharpness
Feature: Flip & mirror
Feature: Text caption overlay
Bit rate control: Variable Bit Rate (VBR)
Audio system: 1-way
Audio formats supported: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS
Signal-to-Noise Ratio (SNR): 55 dB
Feature: Audio detection
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet, Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at
Streaming method: Multicast
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 4096 MB
RS-485 ports: 1
Feature: Microphone in
Feature: Terminal block port
Feature: Video motion detection
Security algorithms: EAP-TLS, PEAP, MSCHAPv2, HTTPS, TLS
Feature: Privacy protection
Intelligent Video Surveillance (IVS) system features: Line crossing detection, Abandoned object
Feature: Human and vehicle targets classification
Feature: Cloud-managed
Power source type: PoE, DC
Power consumption (typical): 12.7 W
Power consumption (max): 25.5 W
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 5 - 95%
Weight: 185 g
Compliance certificates: UL, cUL, CE, KC, VCCI, Federal Communications Commission (FCC)
Feature: Manual
