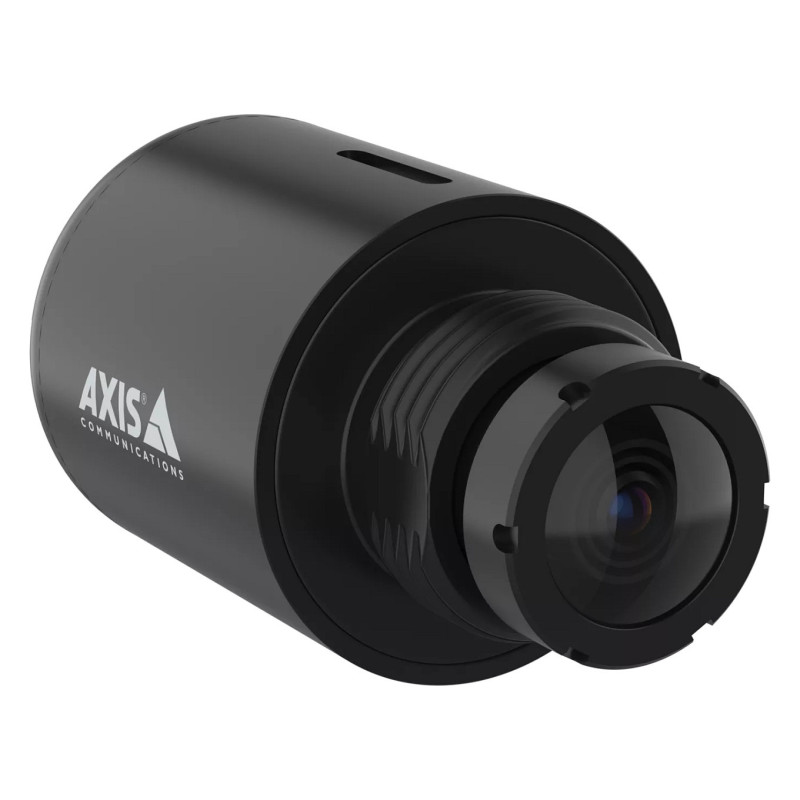

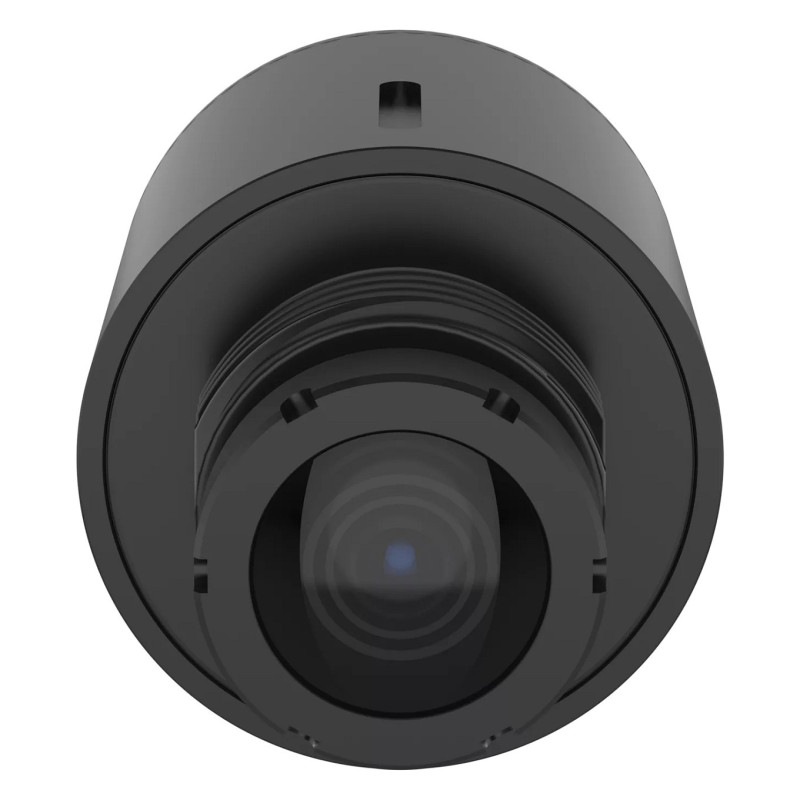

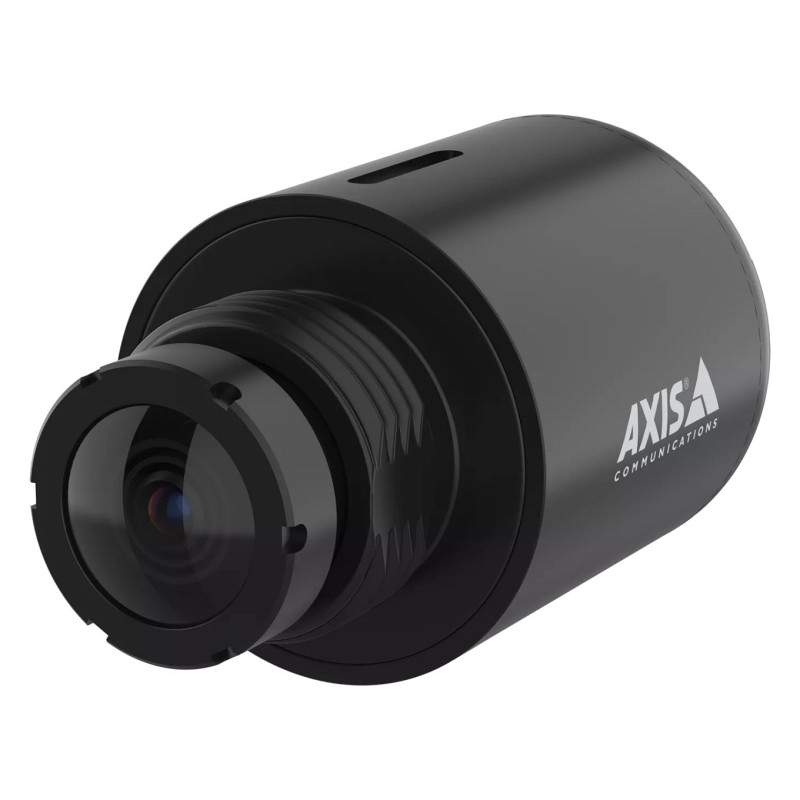

Axis F2107-RE

Axis F2107-RE. Type: Sensor unit, Placement supported: Universal, Brand compatibility: Axis. Lens mount interface: M12, Sensor type: CMOS, Focal length range: 2.8 mm. Power consumption (typical): 1 W, Power consumption (max): 1.8 W. Width: 30 mm, Depth: 58 mm, Height: 30 mm. Quantity per pack: 8 pc(s)

AXIS F2107-RE Standard Sensor

Ideal for both indoor and outdoor installation, this sensor unit offers high-quality 5 MP video, 110° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection.

High image quality

This standard sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 110° horizontal field of view, it's perfect when you need wide -area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there's both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.

Flexible and discreet

With a small cylinder-shaped form factor, AXIS F2107-RE offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it's ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It's compatible with the same accessories as other AXIS F21 sensors to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed.

Ruggedized standard sensor

This IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this standard sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure a ruggedized installation.

Features

Type: Sensor unit
Placement supported: Universal
Brand compatibility: Axis
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP66, IP67, IP6K9K
Feature: Wide Dynamic Range (WDR)

Image sensor

Lens mount interface: M12
Sensor type: CMOS
Focal length range: 2.8 mm
F-number (relative aperture): 2
Resolution: 2592 x 1944 pixels
Viewing angle, horizontal: 110°
Viewing angle, vertical: 80°

Ergonomics

Number of connectors: 1

Power

Power consumption (typical): 1 W
Power consumption (max): 1.8 W

Weight & dimensions

Width: 30 mm
Depth: 58 mm
Height: 30 mm
Weight: 54 g

Packaging data

Quantity per pack: 8 pc(s)

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 100%
Storage temperature (T-T): -40 - 65 °C
Storage relative humidity (H-H): 5 - 95%

Technical details

Doesn't contain: BFR, CFR, PVC
