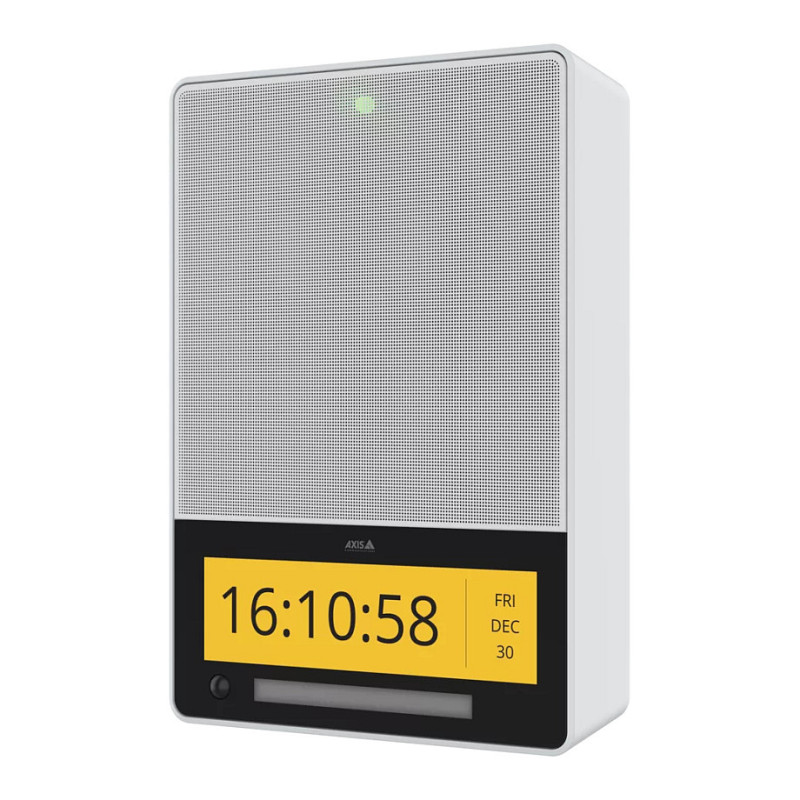

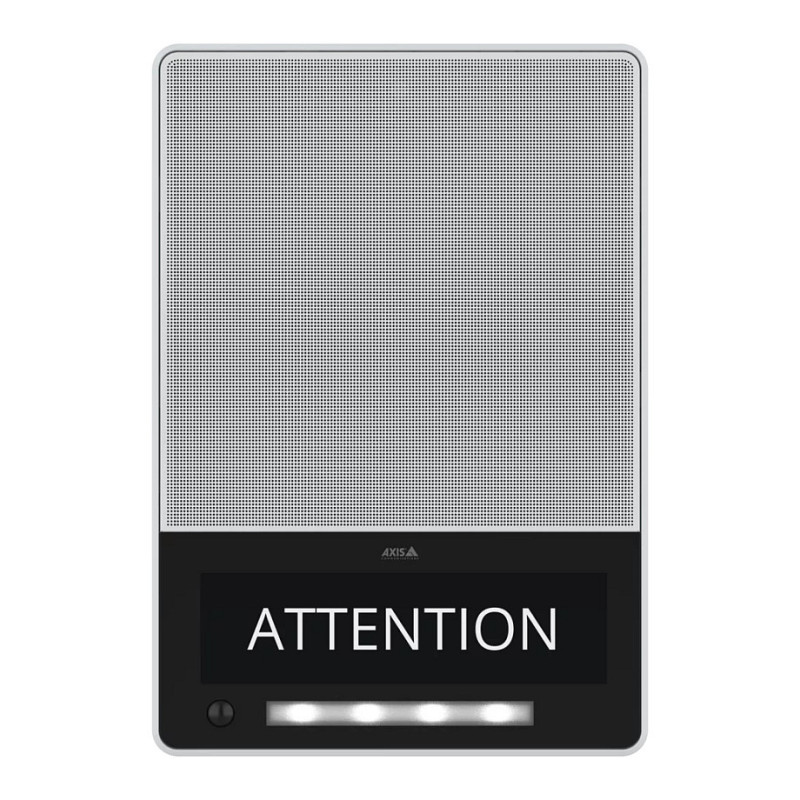

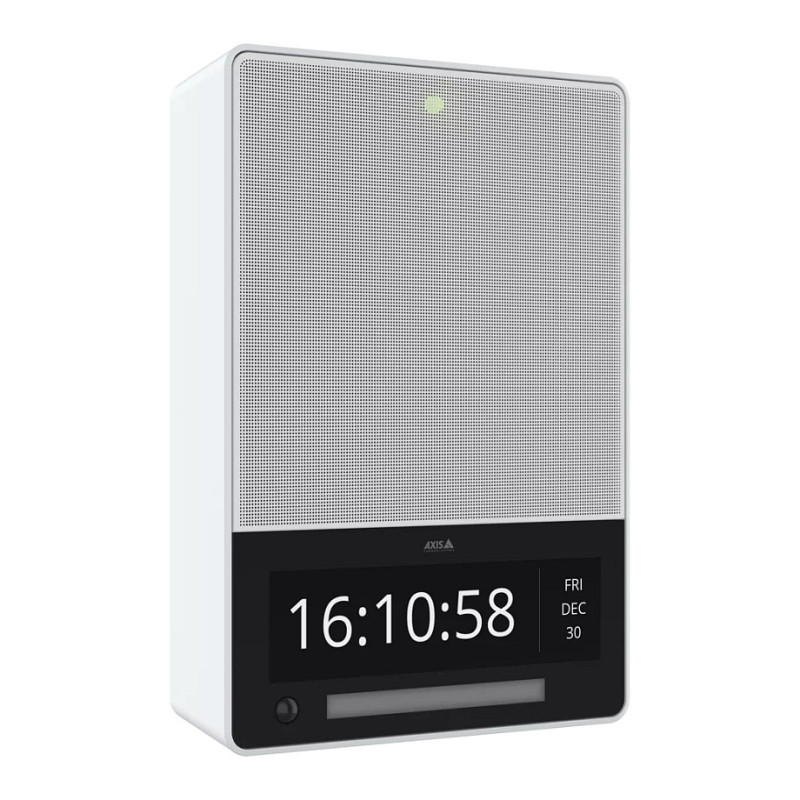

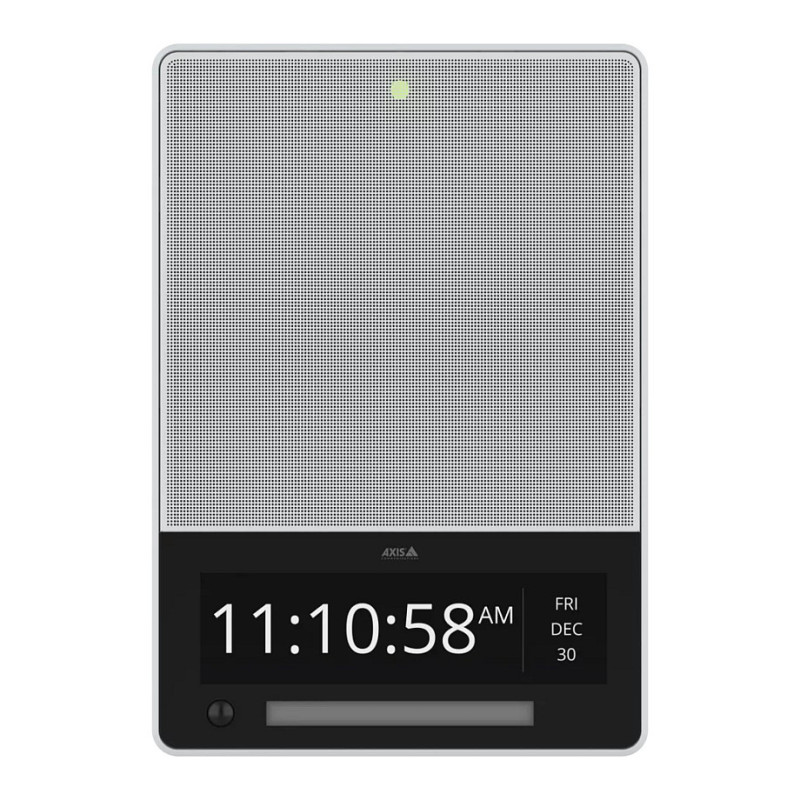

Axis C1710

Axis C1710. Speaker type: 2-way, Speaker placement: Wall-mountable, Internal memory: 1024 MB. Frequency range: 85 - 20000 Hz, Sound pressure level (max): 110 dB, Amplifier class: D. Product colour: Black, White, Housing material: Aluminium, Plastic, Steel, Display type: LCD. Connectivity technology: Wired, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. Power source type: PoE
Reach even more of your audience with a versatile tool for clear and effective public address. A powerful wall-mounted indoor speaker meets an attention-grabbing strobe and a configurable display for text.
Public address with a bigger reach
AXIS C1710 Network Display Speaker offers three ways to communicate in one device. The strobe grabs attention, and the powerful speaker cuts through ambient noise with clear speech and, when needed, loud alarms. The easy-to read text display automatically adjusts to surrounding light levels. This speaker enables both live and prerecorded messages, as well as ad hoc and scheduled text. Content prioritization guarantees urgent messages override scheduled audio, while remote health monitoring and testing give you peace of mind that your speaker is working.
One solution, many possibilities
This flexible display speaker is ideal for both critical and non-critical messages, helping you keep people safe and informed, protect your property, and improve efficiency and ambiance. The same solution can broadcast bell signals, alarms, and background music. When not in use, the display shows the date and time. You can also configure the display speaker to respond automatically to events using the built-in motion detector. For even more possibilities, integrate cameras or other Axis devices, or take advantage of the open platform to integrate third-party solutions - for example, mass notification systems.
Made with you in mind
Mix and match speaker, strobe, and display functions and manage them the way you want. Make announcements from your communication hub or on the go, using a SIP-enabled phone. Need two-way communication? Open a line for two-way audio and speak directly to the scene. Instantly change content, schedules, zones, and prioritization using Axis audio management software. The size and styling of display text is up to you, and you can customize the strobe color and pattern for different alerts. Getting started is easy. The speaker is pre-configured for great sound, and installation is a snap, with an included bracket that leaves two hands free for safe mounting.

Features

Speaker placement: Wall-mountable
Number of speakers: 1
Internal memory: 1024 MB
Flash memory: 1024 MB
Speaker type: 2-way
Built-in amplifier: Yes
Built-in microphone: Yes
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, MP3, WAV
Two-way talk: Yes
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 85%

Audio

Frequency range: 85 - 20000 Hz
Sound pressure level (max): 110 dB
Amplifier class: D
Amplifier output power: 20 W
Dispersion pattern: 120°
Audio processing technologies: Acoustic echo cancellation (AEC)

Design

Product colour: Black, White
Housing material: Aluminium, Plastic, Steel
Suitable for outdoor use: No
Built-in display: Yes
Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP40

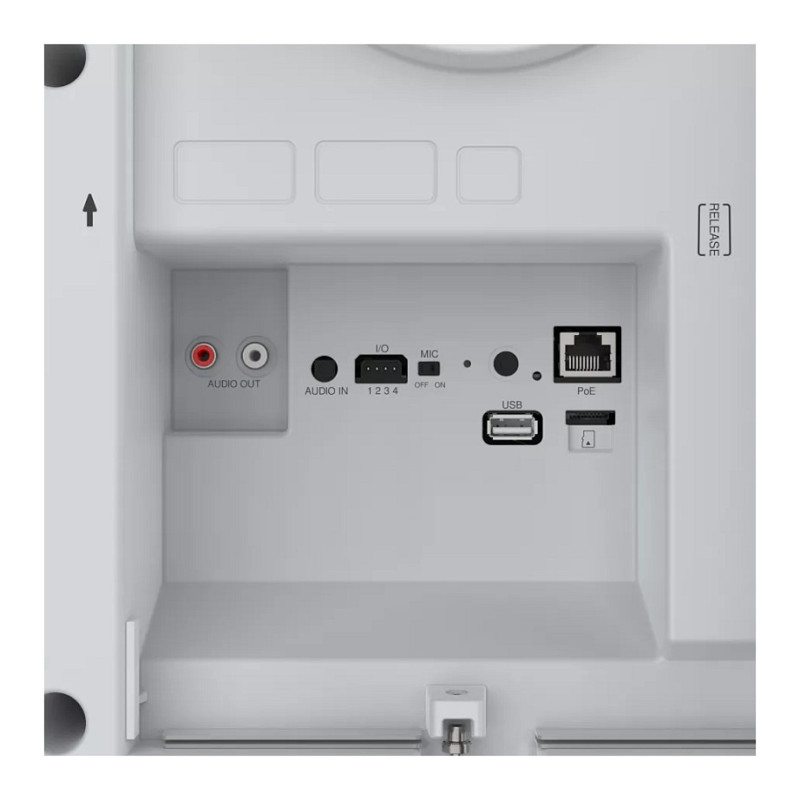

Ports interfaces

Connectivity technology: Wired
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
USB 2.0 Type-A ports quantity: 1
3.5 mm connector: Yes

Power

Power source type: PoE

Weight dimensions

Width: 283 mm
Depth: 107 mm
Height: 405 mm
Weight: 6.4 kg

Packaging content

Quantity per pack: 1 pc(s)

Technical details

Languages support: Multi

Network

Supported network protocols: IPv4/IPv61, USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/2, TLS2, QoS Layer 3 DiffServ, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
