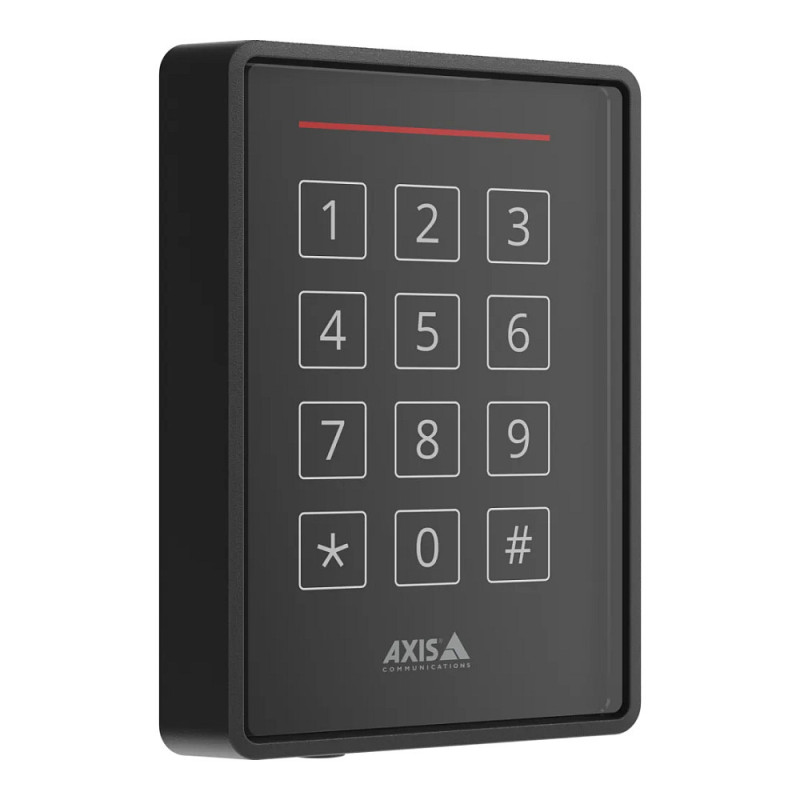

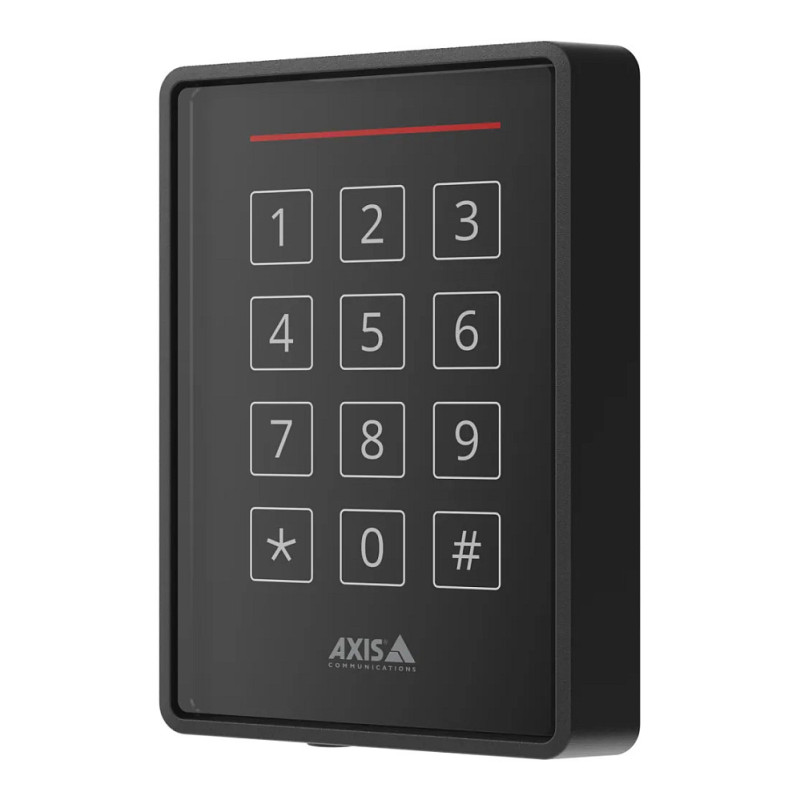

Axis A4131-E

Axis A4131-E Reader with Keypad. Input voltage: 12 V, DC current (max): 0.134 A. Width: 85 mm, Depth: 27 mm, Height: 121 mm. Doesn't contain: Lead, Mercury, Cadmium

Designed for use with Axis network door controllers and credentials, this OSDP reader with touch keypad offers secure and seamless entry. Built-in cybersecurity features ensure secure and easy onboarding and integration.

Perfectly matched components
This OSPD reader is designed for use with Axis network door controllers and Axis credentials, offering secure and seamless entry. It features an intuitive touch keypad that can be used an unlimited number of times. Plus, a braille label is available as an optional accessory with embossed braille lettering for the visually impaired. When used together with AXIS Camera Station Secure Entry, you'll benefit from a unified solution with advanced access control functionality, such as anti-passback and two-person rule. The reader supports 13.56 MHz RFID technologies, including AXIS TA4711, AXIS TA4712, MIFARE Classic®, MIFARE Plus®, and MIFARE DESFire® EV1-EV3.

Easy to install and update
AXIS A4131-E is easy to install, on single gang boxes or mounted on the wall. With its IP65 and IK07 ratings, it's built to handle tough conditions, making it a great fit for harsh environments both indoors and outdoors. Furthermore, it can be remotely managed by Axis network door controllers, allowing you to access new features, configure the device, and apply security updates from anywhere—directly within your security system through AXIS Camera Station Secure Entry or third-party systems.

Designed with security in mind
Out-of-the-box support for Open Supervised Device Protocol (OSDP) ensures secure bidirectional communication. And Secure Channel Protocol (SCP) protects credentials and cryptographic keys. There's also an EAL6+ Certified Secure Element for added protection. Plus, tamper detection informs you of any attempts to interfere with the device. Transparent mode provides secure end-to-end encryption by storing the encryption key on the door controller rather than on the reader. This prevents key theft if the reader is ever tampered with. Furthermore, this OSDP Secure Profile verified device also offers strong interoperability with third-party access control systems that support OSDP.

Technical details

Type: Basic access control reader
Authentication type: Access chip/card, Password
Feature: Vandal-proof
LED indicators: Yes
Authentication card type: MIFARE Classic, MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE Plus
Feature: Tamper protection
Feature: Access code reader
Feature: Access chip/card reader
Access chip/card reader type: Contactless
Feature: Keypad integrated
Keypad number of keys: 12
Feature: Keypad illumination
RFID frequency: 13.56 MHz
Recommended usage: Outdoor
Feature: Open Supervised Device Protocol (OSDP)
Compliance certificates: CE, UL, Federal Communications Commission (FCC), ICES, Electromagnetic Compatibility (EMC), RCM, RoHS
Product colour: Black
International Protection (IP) code: IP65, IP66
IK code: IK07
Warranty period: 5 year(s)
Certification: EAL6+

Ports & interfaces

RS-485 ports: 1

Power

Input voltage: 12 V
DC current (max): 0.134 A

Weight & dimensions

Width: 85 mm
Depth: 27 mm
Height: 121 mm
Weight: 258 g

Operational conditions

Operating temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage temperature (T-T): -40 - 65 °C
Storage relative humidity (H-H): 5 - 95%

Sustainability

Doesn't contain: Lead, Mercury, Cadmium

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
