Axis 02897-001 security camera

Axis 02897-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Horizontal field of view (thermal module): 360°, Lens viewing angle, horizontal: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.78 mm (1 / 2.78"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
AXIS P3747-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.
Wide area surveillance with high-quality overview—24/7
Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you'll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there's both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.
Brilliant design for cost-effective installation

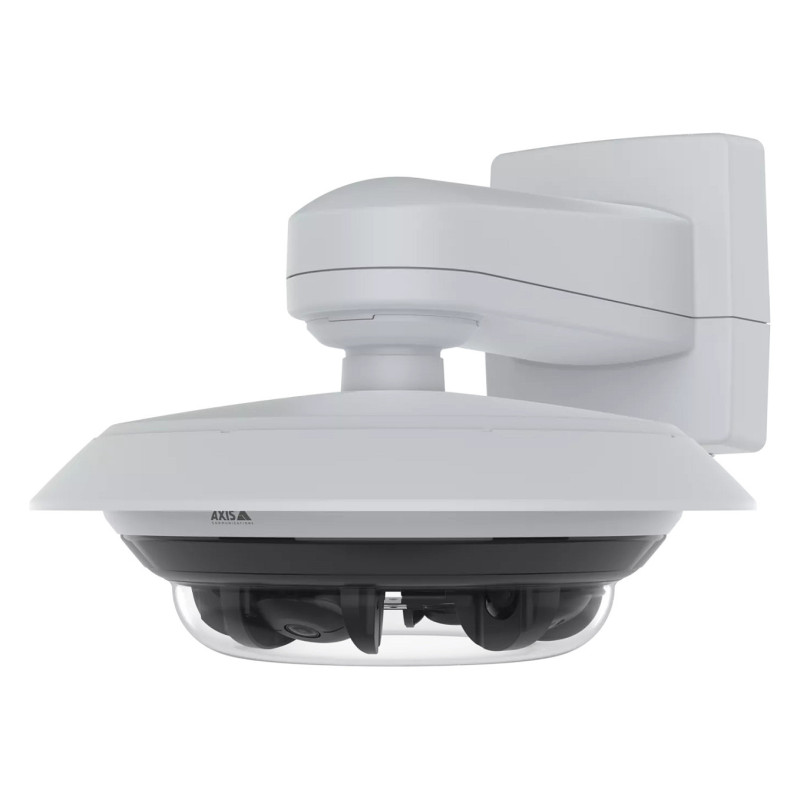

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there's no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.
Powerful with strong security
This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and effi-cient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
Preset points: Yes
Maximum operating distance: 20 m
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Remote viewing: Yes
Built-in light: Yes
Number of languages: 19
Languages support: Arabic, Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Activity
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10

Camera

Camera tilt control: Yes
Minimum illumination: 0.1 lx
Horizontal field of view (thermal module): 360°
Lens viewing angle, horizontal: 360°
Lens viewing angle, vertical: 71.5 - 30.0°
Camera pixel size: 2 µm
Camera shutter speed: 1/19500 - 1 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.78 mm (1 / 2.78")
Progressive scan: Yes
Sensor type: CMOS

Panoramic camera

Sensor type (panoramic camera): CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Zoom capability: Yes
Number of lenses: 3
Focal length range: 3.18 - 7.42 mm
Fixed focus: Yes
Focus: Motorized

Night vision

Night vision: Yes
Night vision distance: 20 m
LED type: IR
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video formats supported: H.264, H.265
Video compression formats: M-JPEG, MPEG, MPEG4
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 2560 x 1440, 2592 x 1944
Video recording: Yes
Frame rate: 20 fps
Video intelligence analytic: Yes
Video streaming: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Built-in speaker(s): Yes
Audio system: 2-way
Audio system full duplex: Yes
Audio input channels: 2.0 channels
Audio output channels: 2.0 channels
Audio formats supported: RTSP
Frequency range: 50 - 60 Hz
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Number of simultaneous live view channels: 4 channels

Storage

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
RAM capacity: 4096 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Security algorithms: 256-bit AES-XTS, FIPS 140-2, HTTPS, SNMP
HTTPS encryption: Yes
Alert notification type: E-mail
Privacy protection: Yes
Intelligent Video Surveillance (IVS) system features: Human detection, Vehicle detection
Motion sensor: Yes
Pixel counter: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes
Network access storage (NAS): Yes

Management features

Remotely operated: Yes

Power

Power source type: PoE
Power consumption (typical): 10.8 W
Power consumption (max): 23.7 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 141 mm
Depth: 220 mm
Height: 75 mm
Weight: 3 kg

Features

License plate recognition: Yes

Sustainability

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UL, VCCI, cUL

Packaging content

Number of cameras: 1
Mounting kit: Yes
Mounting brackets included: Yes
Memory card included: Yes
Manual: Yes

Other features

Doesn't contain: BFR, CFR, PVC
Warranty period: 5 year(s)
