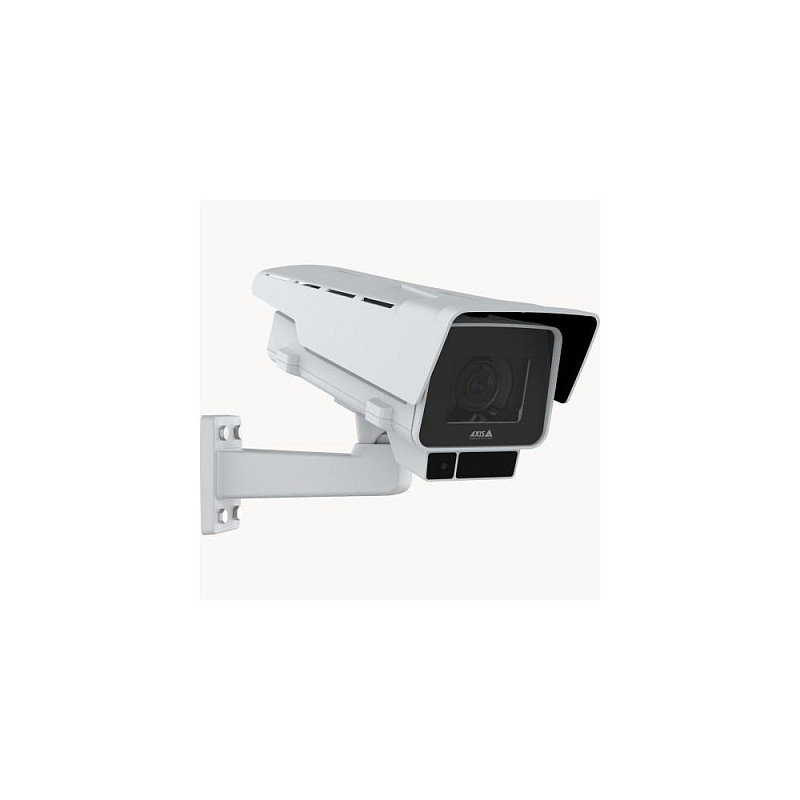

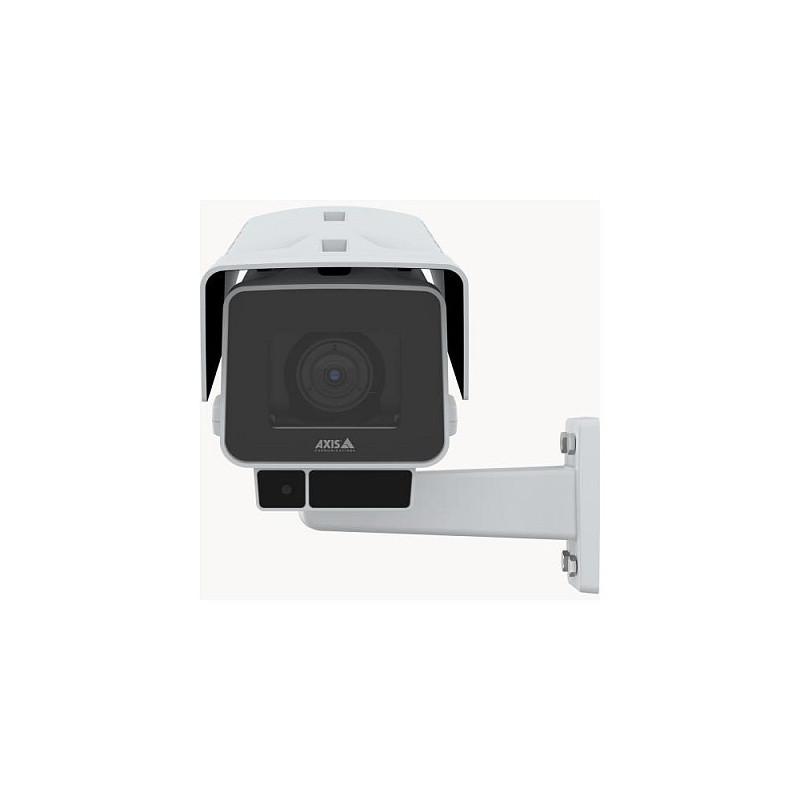

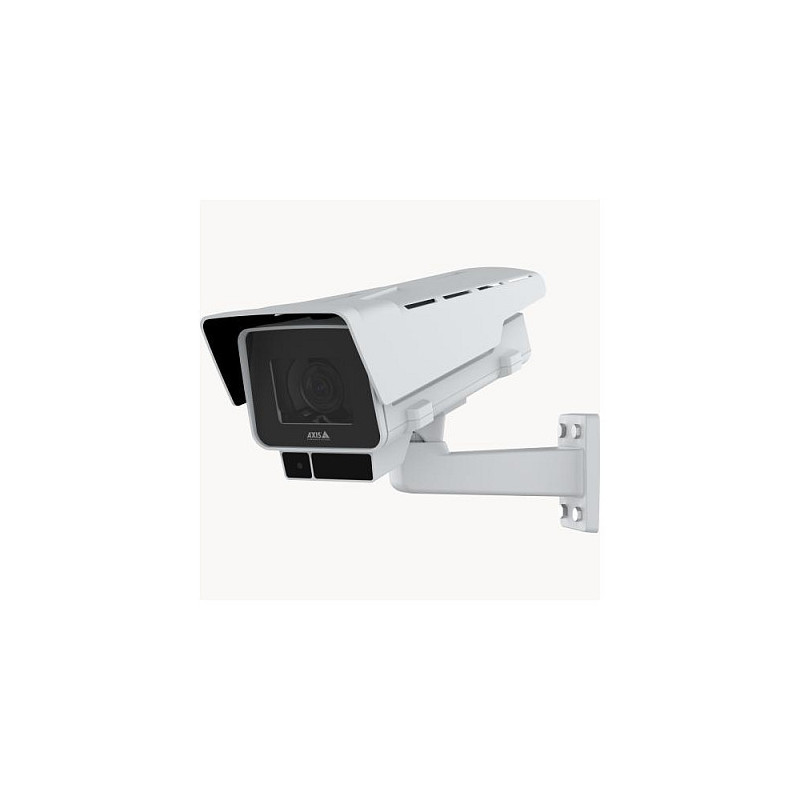

Axis 02736-001 security camera

Axis 02736-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.02 lx, Lens viewing angle, horizontal: 112 - 24°, Lens viewing angle, vertical: 80 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 56.2 m, Observe distance: 22.3 m, Recognize distance: 11.2 m
This robust, outdoor camera has a clear deterrent effect. It offers excellent 5 MP image quality even in challenging light conditions. Ideal for various surveillance situations, it includes an exchangeable lens and delivers clear, sharp images you can count on.
Made for the great outdoors
This IP66-, IP67-, IK10- and NEMA 4X-rated camera can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. Plus, with barrel distortion correction and defogging functionality, it delivers clear, sharp images. AXIS P13 Weathershield Extension A is also available for extreme protection against snow or rain, and to prevent reflections. With electronic image stabilization, this robust camera ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. Furthermore, with PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage.
More light or less
With an exchangeable lens and i-CS support, you can quickly and easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 5 MP. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. And it offers P-Iris for images with better contrast, clarity, resolution, and depth of field. Additionally, OptimizedIR enables surveillance in total darkness up to 50 m (164 ft). And, with shock detection and a tampering alarm, you'll be informed if there are any attempts to interfere with the camera.
Secure and powerful
AXIS P1387-LE offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Dynamic range: 120 dB

Design

Form factor: Box
Mounting type: Wall
Product colour: White
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Minimum illumination: 0.02 lx
Lens viewing angle, horizontal: 112 - 24°
Lens viewing angle, vertical: 80 - 18°

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Detect distance: 56.2 m
Observe distance: 22.3 m
Recognize distance: 11.2 m
Focal length range: 2.8 - 13 mm
Identify distance: 5.6 m

Night vision

Night vision: Yes
LED type: IR

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video compression formats: H.264, H.265, M-JPEG
Frame rate: 60 fps
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image stabilizer: Yes

Audio

Signal-to-Noise Ratio (SNR): 55 dB

Network

Ethernet LAN: Yes
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLS b, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Flash memory: 8192 MB
Internal memory: 2048 MB

Power

Power source type: DC, PoE
Power consumption (typical): 8.5 W
Power consumption (max): 25.5 W
DC output voltage: 10, 28

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Weight: 2.47 kg
Weight (with stand): 3.35 kg

Packaging content

Number of cameras: 1
