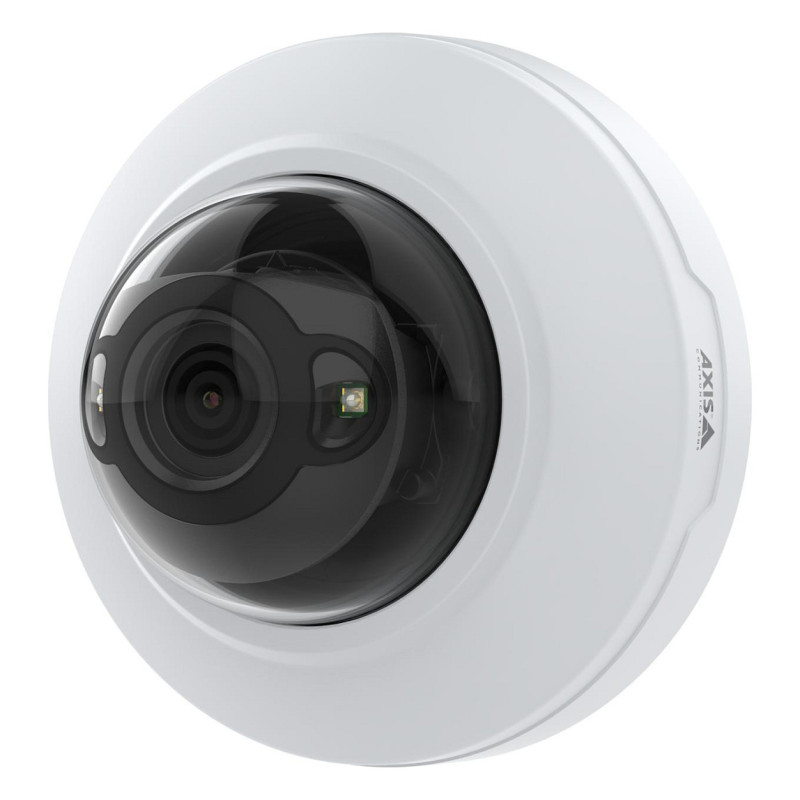

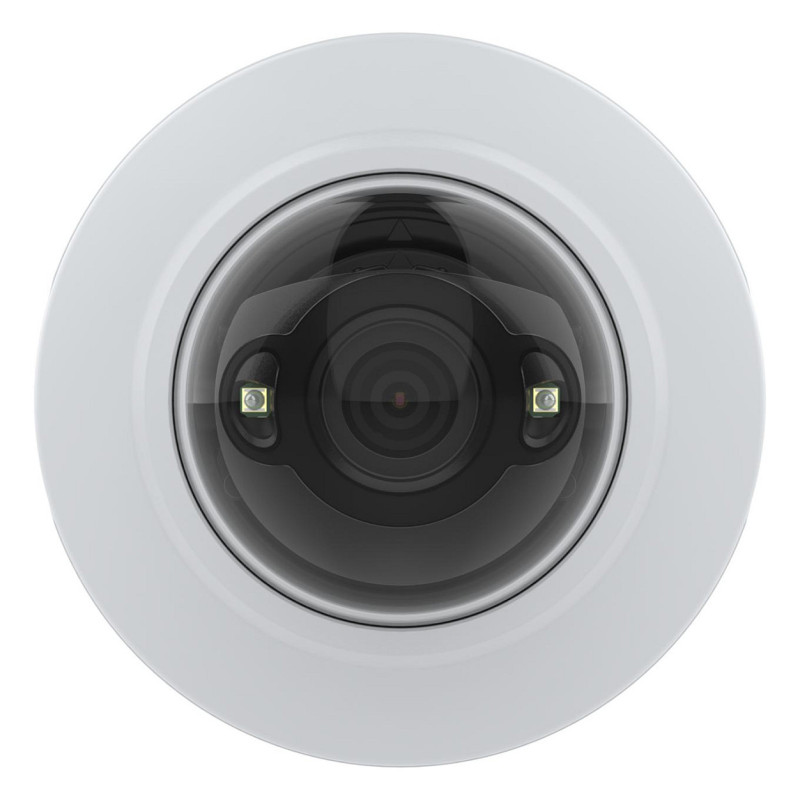

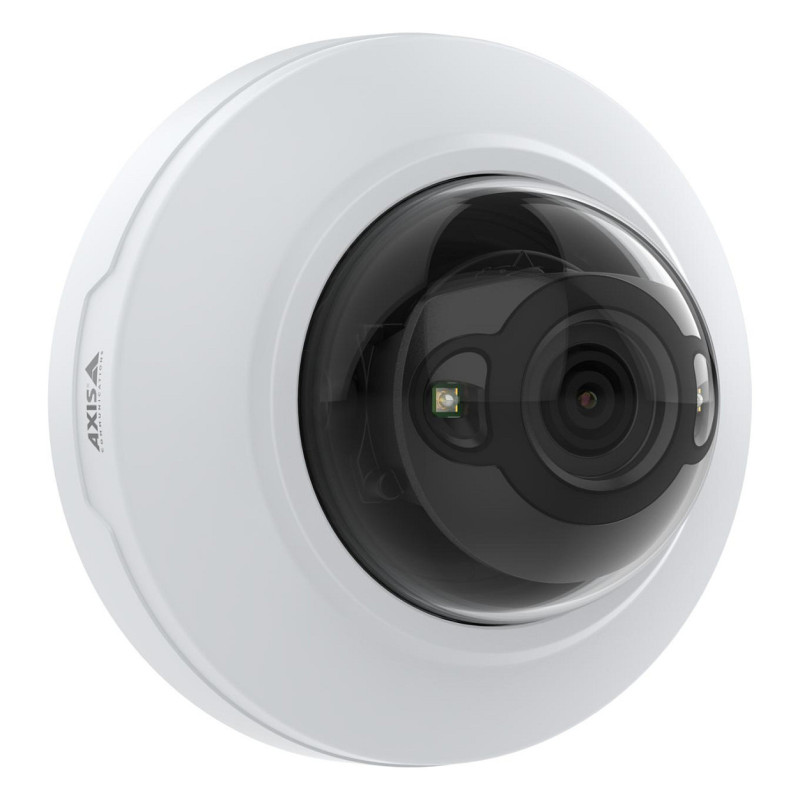

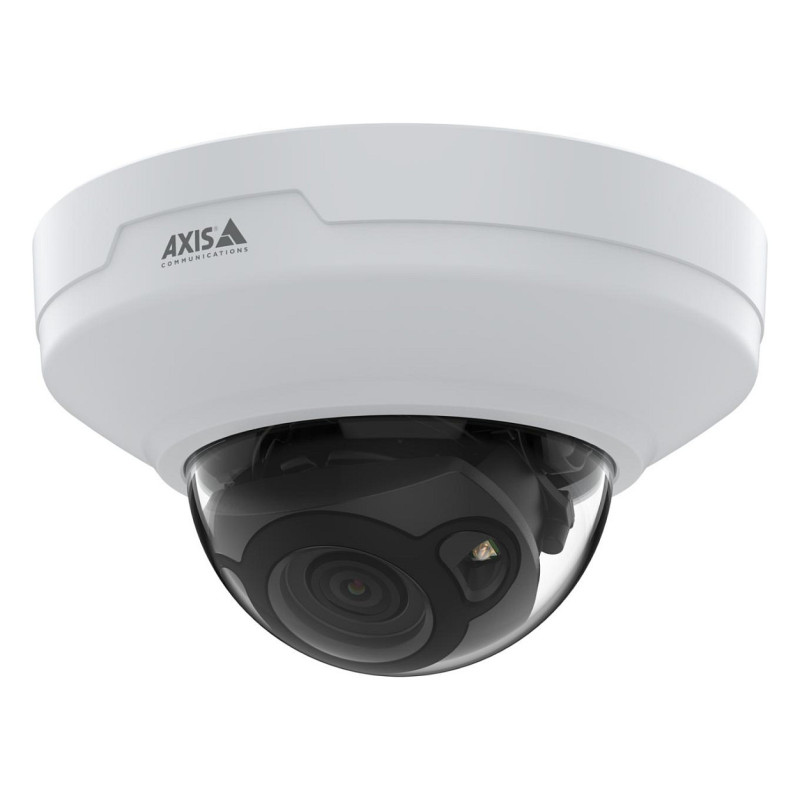

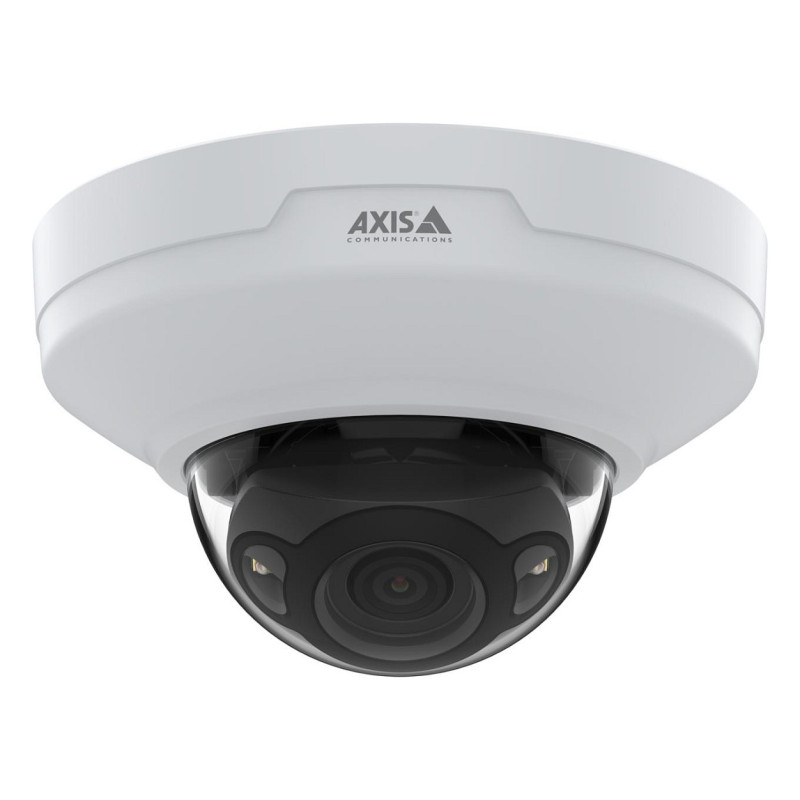

Axis 02677-001 security camera

Axis 02677-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.14 lx, Angle of rotation: 105°, Lens viewing angle, horizontal: 93 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Maximum resolution: 1920 x 1080 pixels, Total megapixels: 2 MP, Video compression formats: H.264, H.265, M-JPEG
This discreet dome delivers great images in any light conditions. With a deep learning processing unit, it offers intelligent analytics based on deep learning on the edge. Plus, Axis Edge Vault safeguards your device.
Great images, every time
Ideal for indoor surveillance applications, AXIS M4215-LV delivers great image quality in 2 MP. With a varifocal lens, this affordable camera offers a flexible field of view. Plus, with remote zoom and auto focus capabilities, it ensures sharp high resolution video with great details where needed. Thanks to Lightfinder and WDR, it provides details even in challenging light conditions. And Axis OptimizedIR allows for surveillance in pitch darkness. Furthermore, Axis Edge Vault provides a hardware-based cybersecurity platform that guarantees the device's integrity and protects it from unauthorized access.
Extended possibilities
AXIS M4215-LV offers great possibilities to add value to your camera and extend the functionality of your surveillance system. For instance, with an HDMI port and AXIS Face Detector you can display live video and face detection on a public viewing monitor to help deter theft. Plus, you can add audio or I/O connectivity using AXIS T61 Series. It offers advanced analytics based on deep learning on the edge to deliver valuable metadata facilitating efficient forensic search capabilities in live or recorded video. And AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering.
Small and discreet
Compact and flexible in design, this varifocal dome offers flexible and discreet installation. With a wide range of accessories, it can be installed almost anywhere making it ideal for any location where discreet monitoring is needed. And it can be easily repainted to blend in seamlessly with any environment. This IK08-rated camera is protected against redirection, defocusing, and impact. A smoked dome is available as an accessory to disguise which way the camera is pointing. Furthermore, thanks to its vandal-, impact-, and dust-resistant casing you can be confident it's always safe and secure.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Built-in processor: Yes
Number of languages: 19
Languages support: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Russian, Swedish, Thai, Turkish, Vietnamese
Certification: CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP42
IK code: IK08

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.14 lx
Angle of rotation: 105°
Lens viewing angle, horizontal: 93 - 47°
Lens viewing angle, vertical: 50 - 26°
Tilt angle range: -40 - 65°
Pan range: -180 - 180°
Camera shutter speed: 1/25000 - 1/5 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Maximum aperture number: 2.6
Minimum aperture number: 1.7

Night vision

Night vision: No

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Video recording: Yes
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Privacy masking: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf)
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Mirror: Yes
Pixel counter: Yes
Digest authentication: Yes
Network access storage (NAS): Yes

Power

Power source type: PoE
Power consumption (max): 9.5 W
Power consumption (Power over Ethernet (PoE)): 4.8 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -30 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Height: 71 mm
Diameter: 12 cm
Weight: 366 g

Packaging content

Number of cameras: 1
Manual: Yes
Packaging content: Owner authentication key, virtual client license for H.264/H.265
