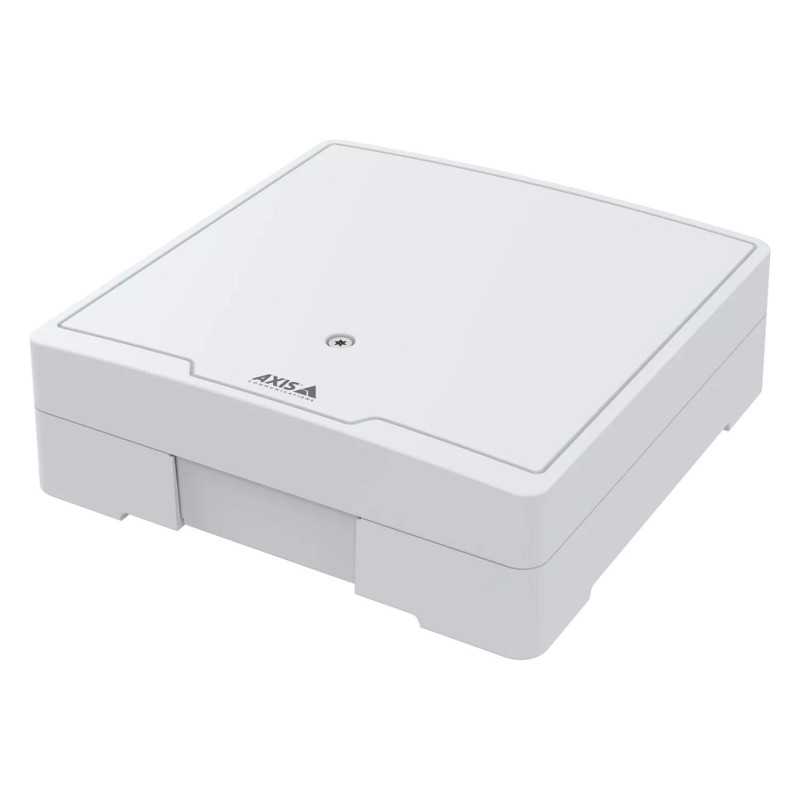

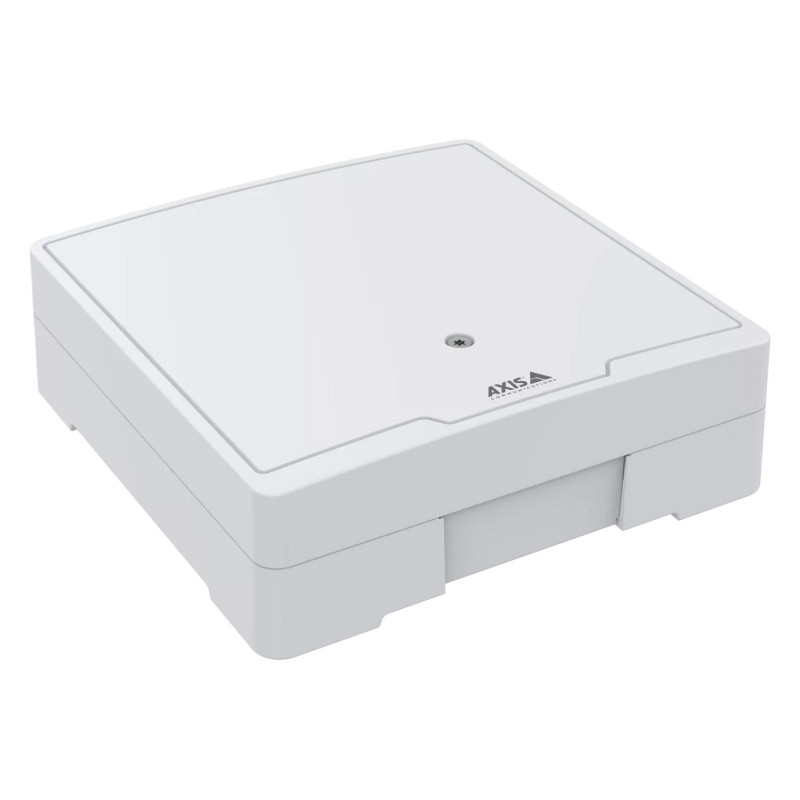

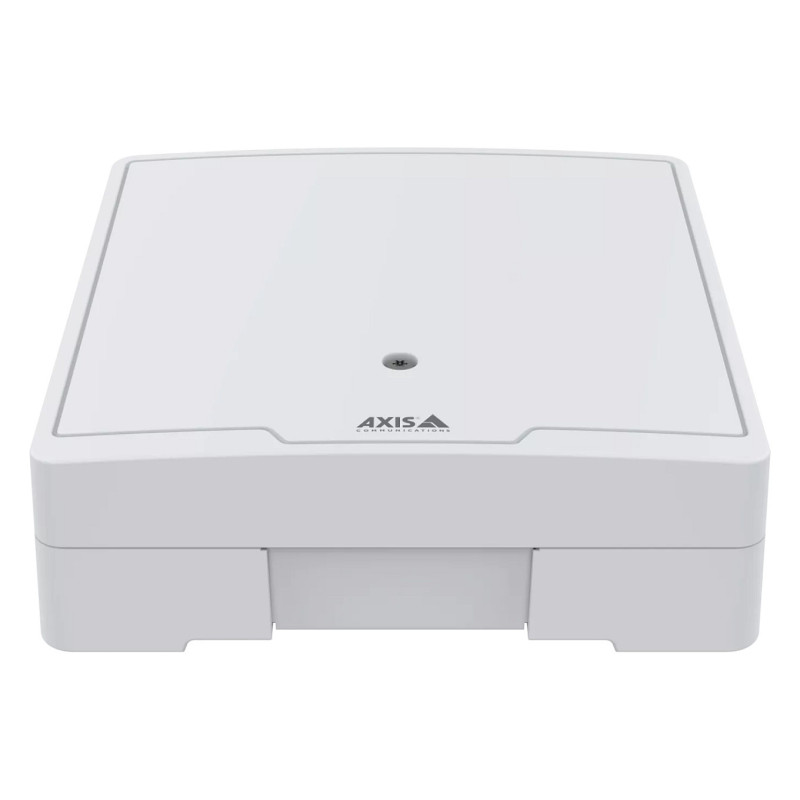

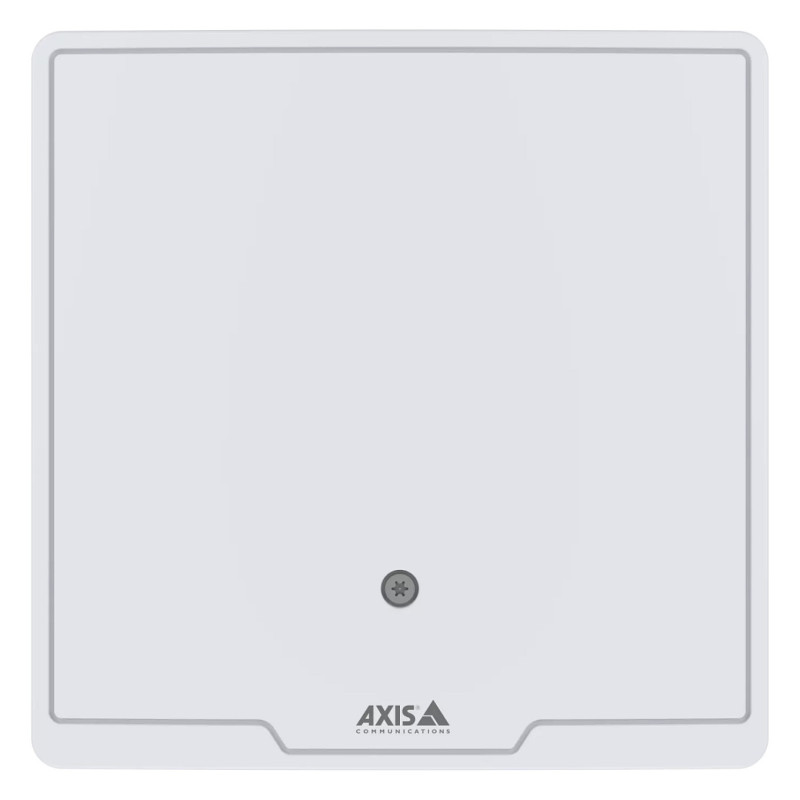

Axis 02653-001 security door controller
Product reference:
29-7331021081154
Axis 02653-001, 2 GB, Flash, 10,100 Mbit/s, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2,..., 10.5 - 28 V, -40 - 55 °C
Axis 02653-001 security door controller
Product reference:
29-7331021081154
Axis 02653-001, 2 GB, Flash, 10,100 Mbit/s, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2,..., 10.5 - 28 V, -40 - 55 °C
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 10
business days
Axis 02653-001. Internal storage capacity: 2 GB, Storage media: Flash, Ethernet LAN data rates: 10,100 Mbit/s. DC voltage range: 10.5 - 28 V. Width: 175 mm, Depth: 175 mm, Height: 60 mm
This advanced and robust solution includes everything needed to control two doors - all powered by one PoE cable. It offers fast and easy installation on walls. Plus, it's suitable for plenum spaces. Thanks to intelligence on the edge, it can internally handle all tasks related to door access - even if the network is down. Fully integrated within Axis end-to-end and partner solutions, this scalable product is optimized for both small and large installations. It includes six auxiliary I/Os for easy integration. Plus, it supports flexible authentication using different types of credentials. Furthermore, built-in cybersecurity features prevent unauthorized access and safeguard your system.
Technical details
Case design: Housing
Maximum number of doors: 2 door(s)
Interface: RJ-45 / RS-485
Relay inputs: 2
Performance
Internal storage capacity: 2 GB
Storage media: Flash
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wiegand interface
Number of Wiegand readers supported: 2
Power
DC voltage range: 10.5 - 28 V
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1
Operational conditions
Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 55 °C
Operating relative humidity (H-H): 20 - 85%
Weight & dimensions
Width: 175 mm
Depth: 175 mm
Height: 60 mm
Weight: 1.2 kg
| Gamintojo kodas | 02653-001 |
| Weight | 0 kg |
