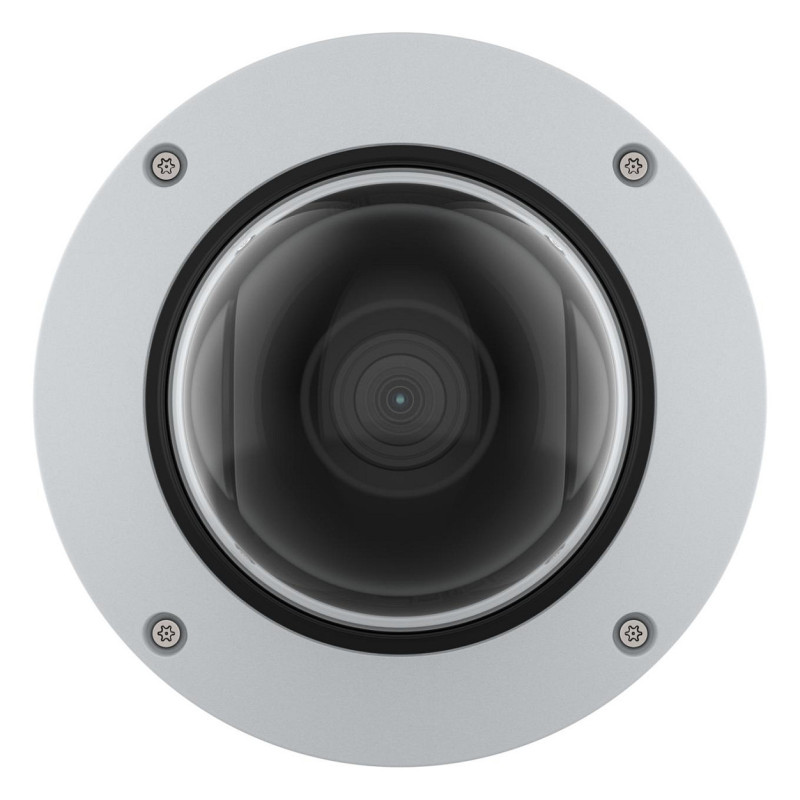

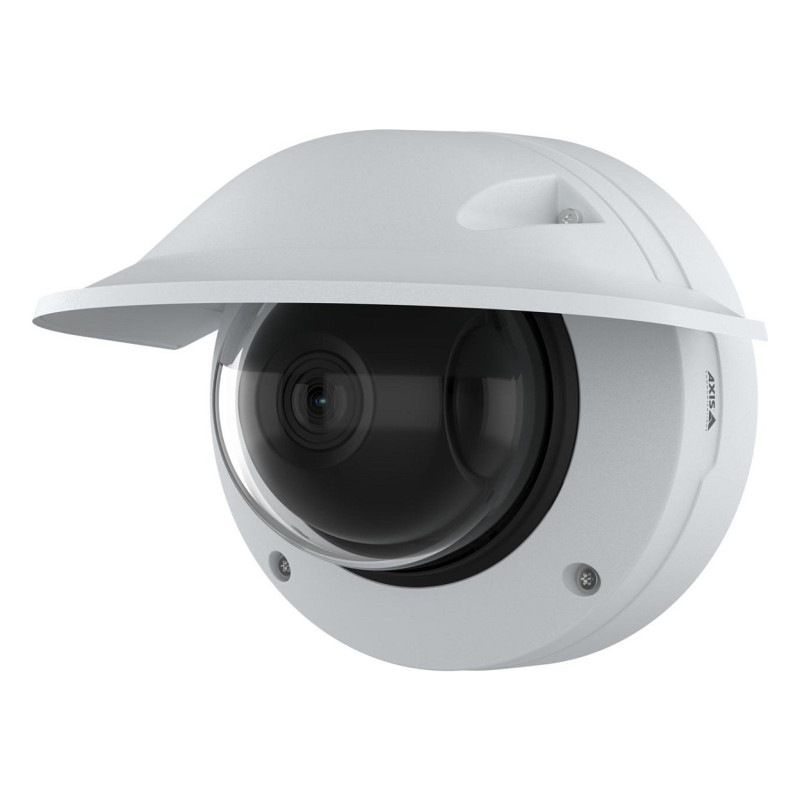

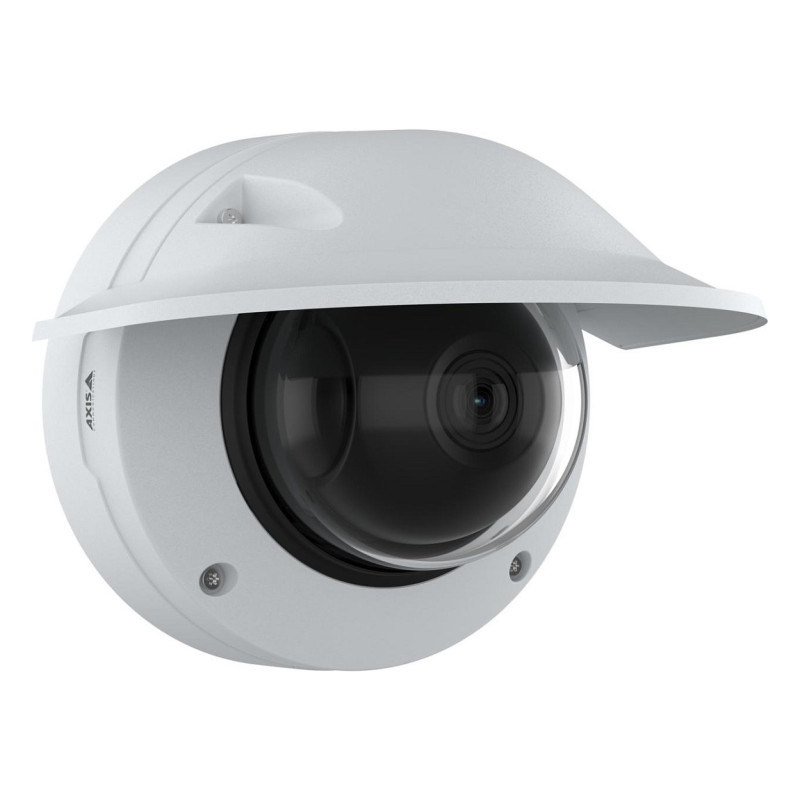

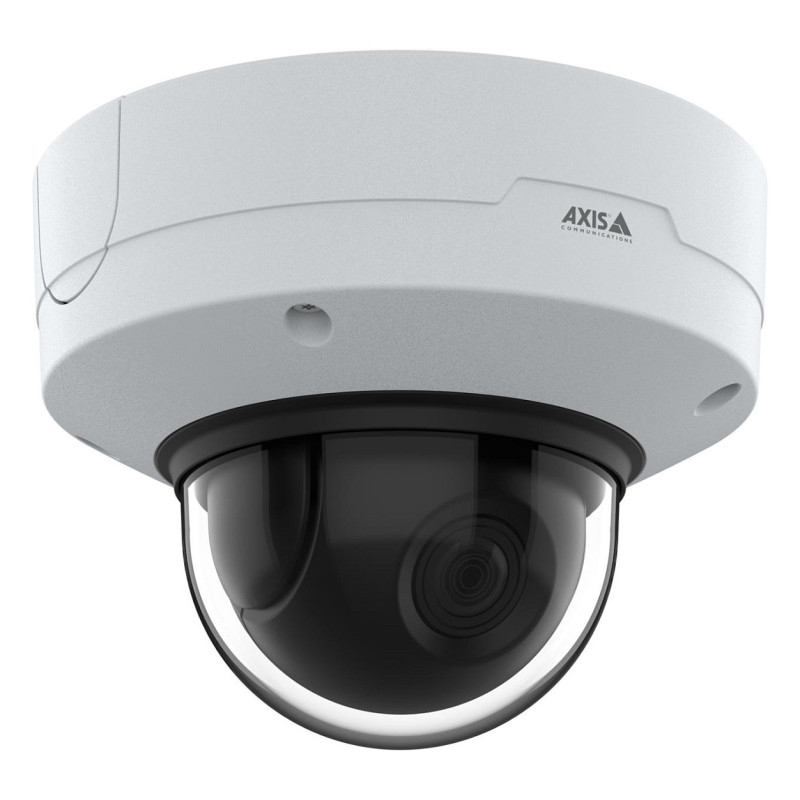

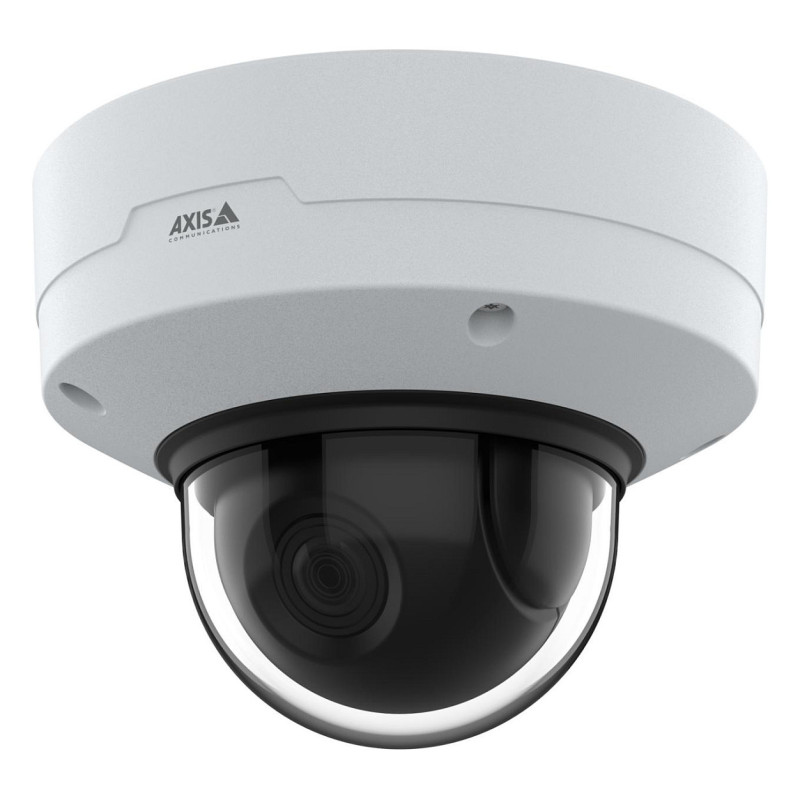

Axis 02617-001 security camera

Axis 02617-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.07 lx, Lens viewing angle, horizontal: 103 - 48, Lens viewing angle, vertical: 56.4 - 27.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it's quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.
Remotely adjust the field of view
This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.
Outstanding image quality
AXIS Q3628-VE offers outstanding image quality and forensic details in 8 MP resolution—even in low light. Plus, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before—on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.
Robust and ready for tough environments
This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Processor model: ARTPEC-8
Number of languages: 19
Languages support: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese

Design

Form factor: Dome
Mounting type: Wall/Pole
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.07 lx
Lens viewing angle, horizontal: 103 - 48
Lens viewing angle, vertical: 56.4 - 27.4°
Tilt angle range: -8 - 75°
Pan range: 0 - 190°
Camera shutter speed: 1/66500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.2 mm (1 / 1.2")
Progressive scan: Yes
Sensor type: CMOS

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

Lens system

Focal length range: 6.2-12.9
Maximum aperture number: 2.9
Minimum aperture number: 1.6

Night vision

Night vision: Yes

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 800, 2880 x 2160, 3840 x 2160
Frame rate: 30 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes

Audio

Audio system: 2-way
Audio system full duplex: Yes
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS
Sample rate: 48 kHz
Voice codecs: AGC
Audio detection: Yes

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Terminal block port: Yes
DC-in jack: Yes

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Alert notification type: E-mail
Pixel counter: Yes
Digest authentication: Yes

Power

Power source type: DC, PoE
Power consumption (typical): 8 W
Power consumption (max): 25 W
DC output voltage: 10, 28

Sustainability

Sustainability compliance: Yes
Compliance certificates: CE, KC, REACH, RoHS, UKCA

Packaging content

Number of cameras: 1
Mounting brackets included: Yes
Screws included: Yes
Manual: Yes

Other features

Doesn't contain: BFR, PVC
