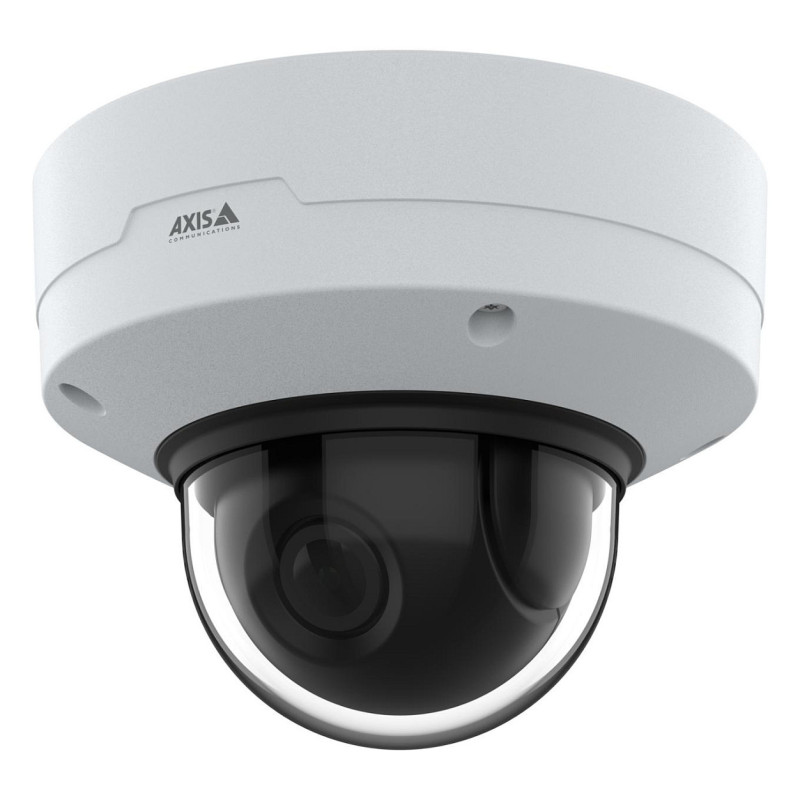

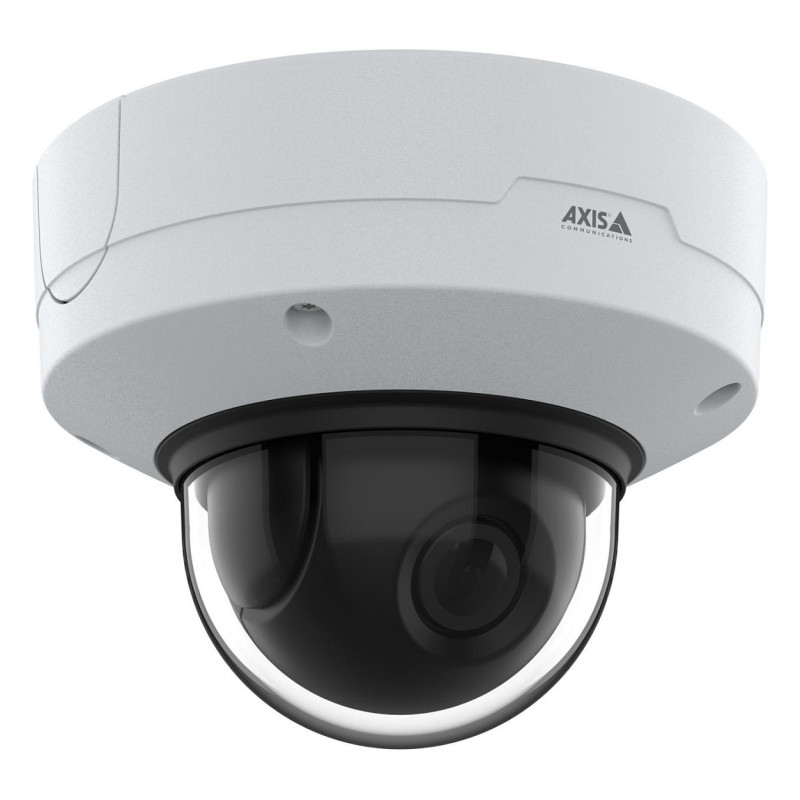

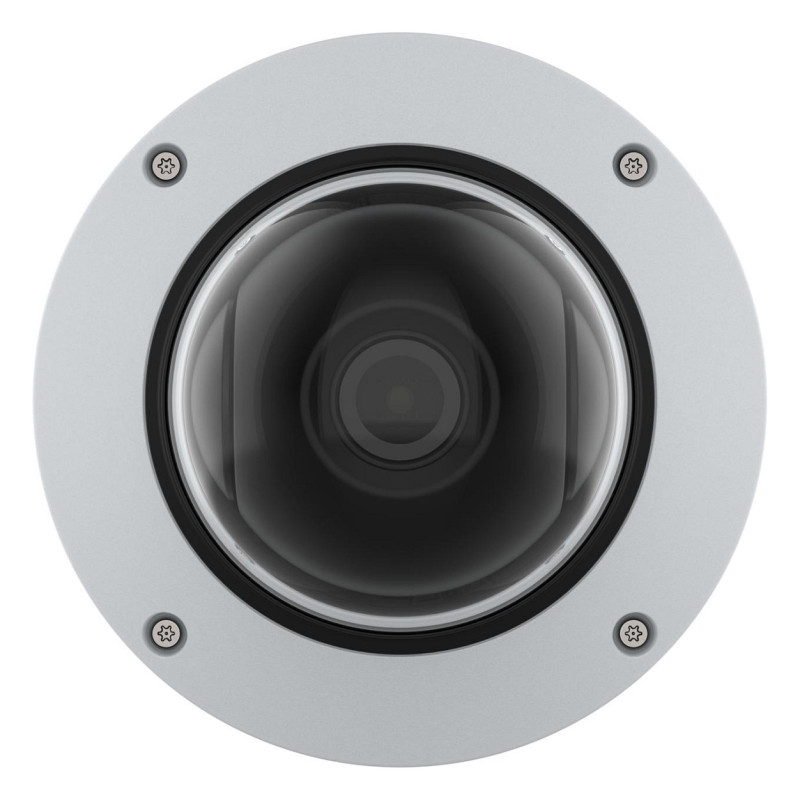

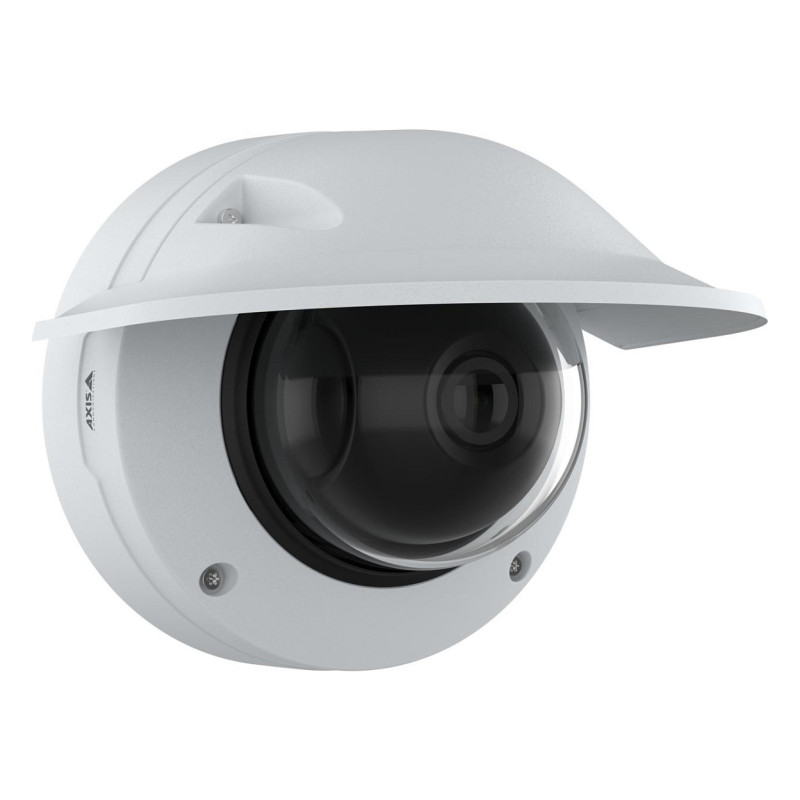

Axis 02616-001 security camera

Axis 02616-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.06 lx, Lens viewing angle, horizontal: 103 - 52°, Lens viewing angle, vertical: 56.2 - 29.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3 - 8.6 mm

This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it's quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.

Remotely adjust the field of view
This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.

Outstanding image quality
AXIS Q3626-VE offers outstanding image quality and forensic details in 4 MP resolution—even in low light. Plus, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before—on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.

Robust and ready for tough environments
This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Processor model: ARTPEC-8
Number of languages: 18

Design

Form factor: Dome
Mounting type: Wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0.06 lx
Lens viewing angle, horizontal: 103 - 52°
Lens viewing angle, vertical: 56.2 - 29.6°
Tilt angle range: -8 - 75°
Pan range: 0 - 190°
Camera shutter speed: 1/91000 - 1 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Focal length range: 4.3 - 8.6 mm
Maximum aperture number: 2.4
Minimum aperture number: 1.5

Night vision

Feature: Night vision

Video

Maximum resolution: 2688 x 1512 pixels
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 800, 2688 x 1512
Frame rate: 60 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Feature: Text caption overlay
Feature: Image stabilizer

Audio

Audio system: 2-way
Feature: Audio system full duplex
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Sample rate: 48 kHz
Voice codecs: AGC
Feature: Audio detection

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1x, IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Alert notification type: E-mail

Power

Power source type: DC, PoE
Power consumption (typical): 7 W
Power consumption (max): 25 W
DC output voltage: 10, 28

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 141 mm
Diameter: 18.4 cm
Weight: 2.1 kg

Packaging content

Number of cameras: 1
Feature: Mounting brackets included
Feature: Manual

Other features

Doesn't contain: BFR, PVC
Warranty period: 5 year(s)
