Axis 02580-001 security camera

Axis 02580-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Box. Minimum illumination: 0.02 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 49°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Focal length range: 3 - 10.5 mm

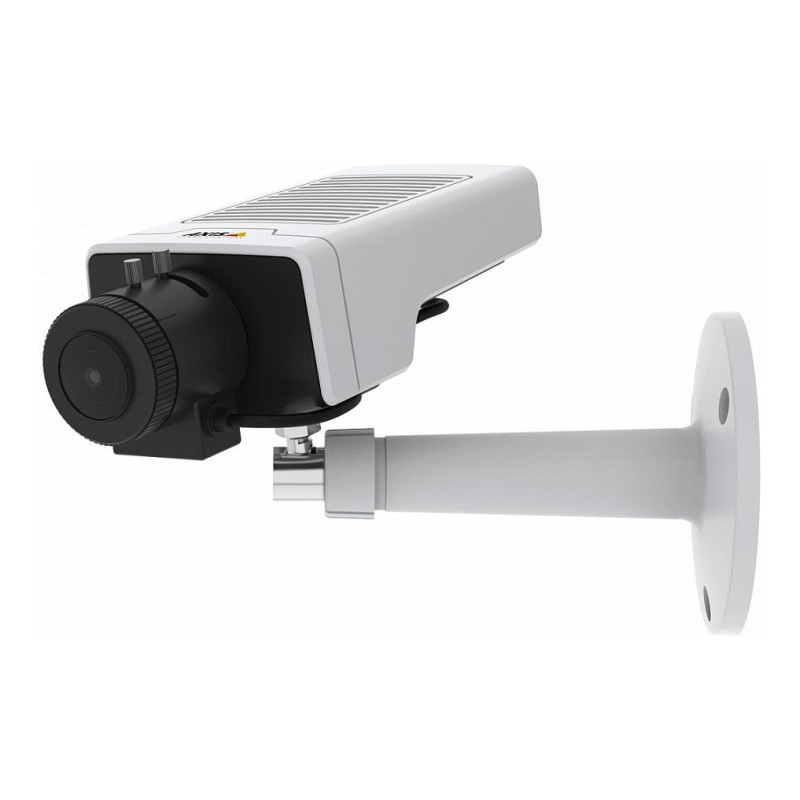

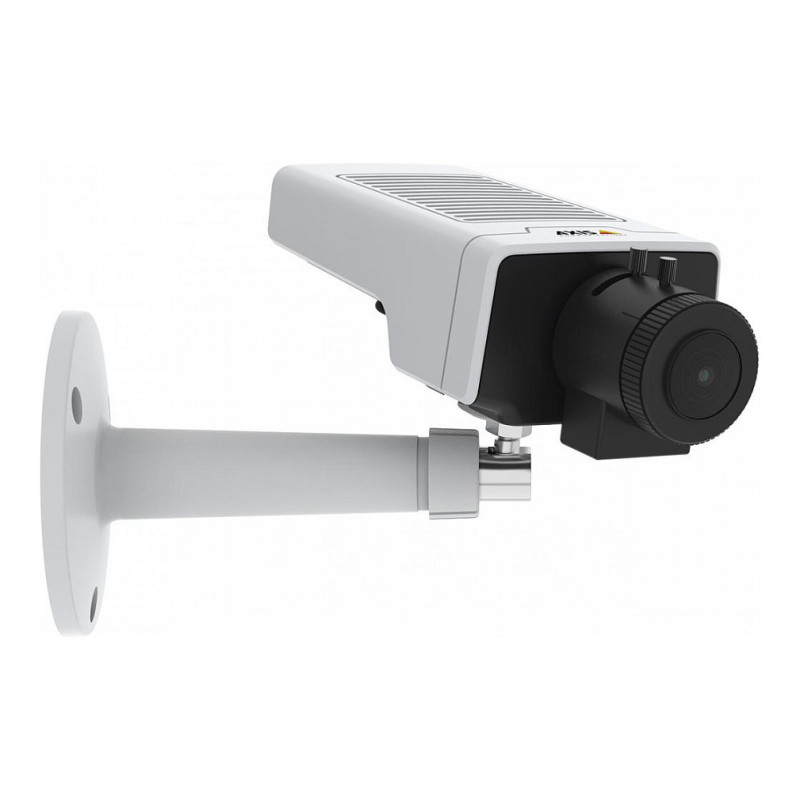

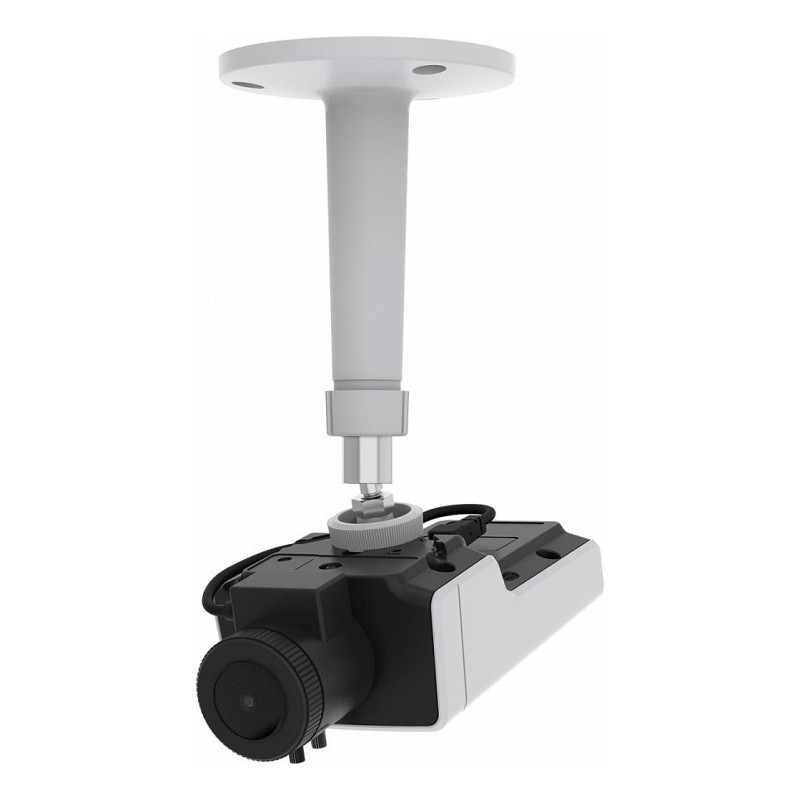

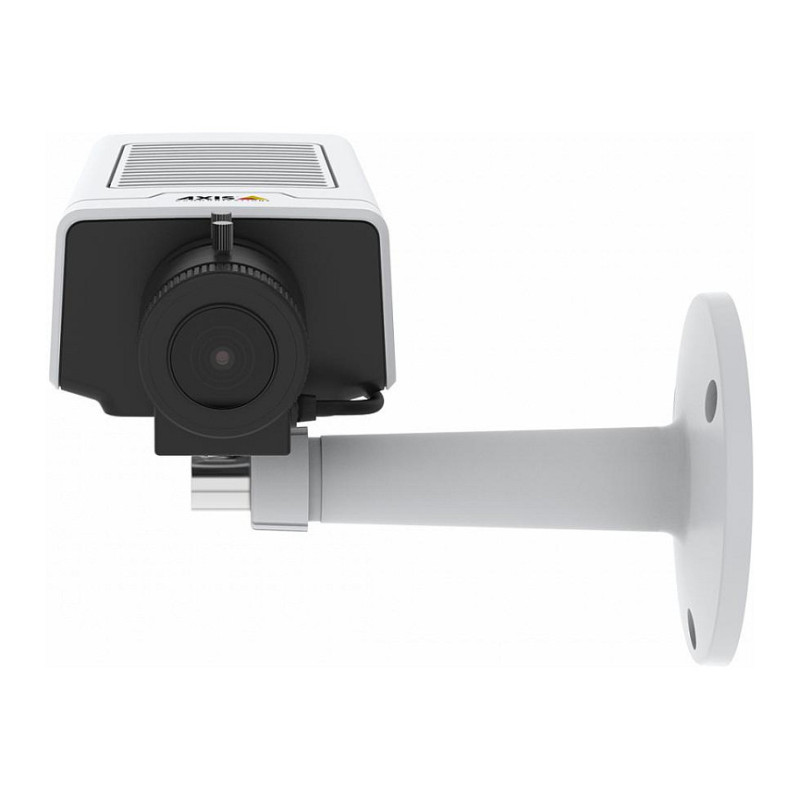

AXIS M1135 Mk II is an affordable, compact box camera that's easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it's possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian

Design

Form factor: Box
Mounting type: Ceiling/wall
Product colour: Black
LED indicators: Yes
Housing material: Polycarbonate (PC)

Camera

Minimum illumination: 0.02 lx
Lens viewing angle, horizontal: 90°
Lens viewing angle, vertical: 49°
Camera shutter speed: 1/33500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Focal length range: 3 - 10.5 mm

Night vision

Feature: Night vision

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG
Supported graphics resolutions: 160 x 90, 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Frame rate: 30 fps
Feature: Video intelligence analytic
Feature: Video streaming
Gain control type: Auto
Image quality adjustment: Brightness, Colour depth, Contrast, Sharpness
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 1-way
Audio input channels: 1.0 channels
Audio formats supported: AAC-LC, ADPCM, LPCM, PCM
Sample rate: 48 kHz
Feature: Built-in microphone
Voice codecs: G.711, G.726, OPUS
Feature: Audio detection

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Feature: Quality of Service (QoS) support
Streaming method: Multicast, Unicast

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Feature: DC-in jack

Security

Feature: Password protection
Password protection type: User
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: EAP-TLS
Feature: HTTPS encryption

Power

Power source type: DC, PoE
Power consumption (typical): 3.8 W
Power consumption (max): 6.49 W
Power consumption (Power over Ethernet (PoE)): 6.49 W
DC output voltage: 8, 28

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 70 mm
Depth: 148 mm
Height: 46 mm

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Manual
