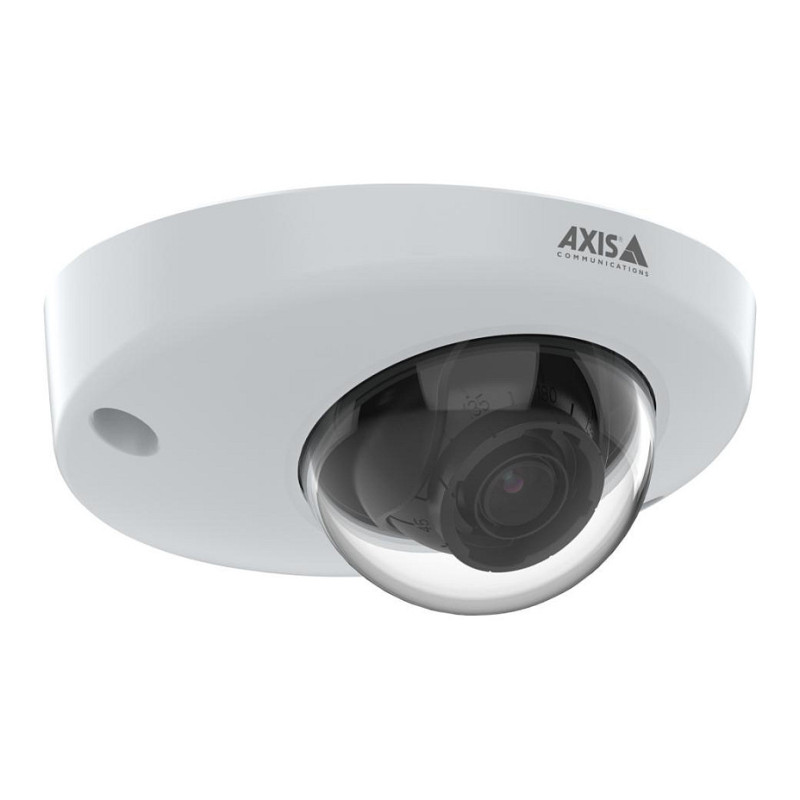

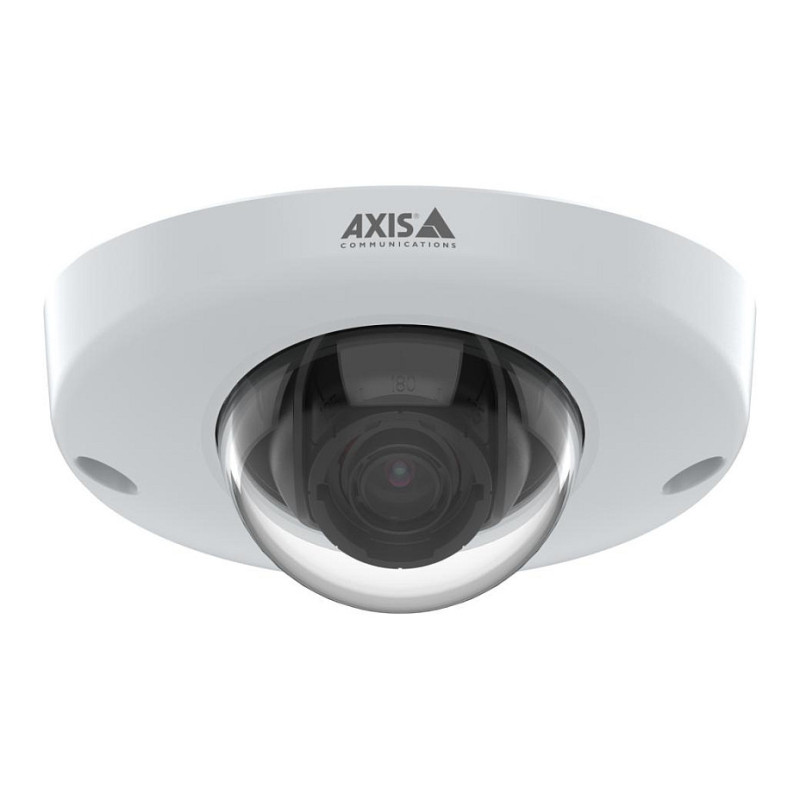

Axis 02501-001 security camera

Axis 02501-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 250°, Lens viewing angle, horizontal: 88°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Lens diameter: 3.6 mm, Closest focusing distance: 0.3 m

This compact and discreet 2 MP onboard camera complies with transportation-industry regulations including fire-safety for buses. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a bus. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Tour recording
Feature: Preset points
Feature: Wide Dynamic Range (WDR)
Processor model: S6LM55
Feature: Built-in processor
Number of languages: 18

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.04 lx
Angle of rotation: 250°
Lens viewing angle, horizontal: 88°
Lens viewing angle, vertical: 47°
Tilt angle range: 15 - 90°
Pan range: -30 - 30°
Camera shutter speed: 1/19000 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Lens system

Number of lenses: 1
Lens diameter: 3.6 mm
Maximum aperture number: 2
Closest focusing distance: 0.3 m

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, Mirror, Sharpness

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at
Streaming method: Multicast

Storage

Flash memory: 512 MB
Internal memory: 1024 MB

Security

Feature: Password protection
Feature: IP address filtering
Security algorithms: 802.1x RADIUS
Feature: HTTPS encryption
Feature: Pixel counter
Feature: Digest authentication

Power

Power source type: PoE
Power consumption (max): 3.8 W
Power consumption (Power over Ethernet (PoE)): 2.2 W

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%

Weight & dimensions

Height: 50 mm
Diameter: 11 cm
Weight: 241 g

Sustainability

Feature: Sustainability compliance
Compliance certificates: CE, KC, REACH, RoHS, Trade Agreements Act (TAA), UKCA, WEEE

Packaging content

Number of cameras: 1
Feature: Manual

Other features

Doesn't contain: BFR, PVC
