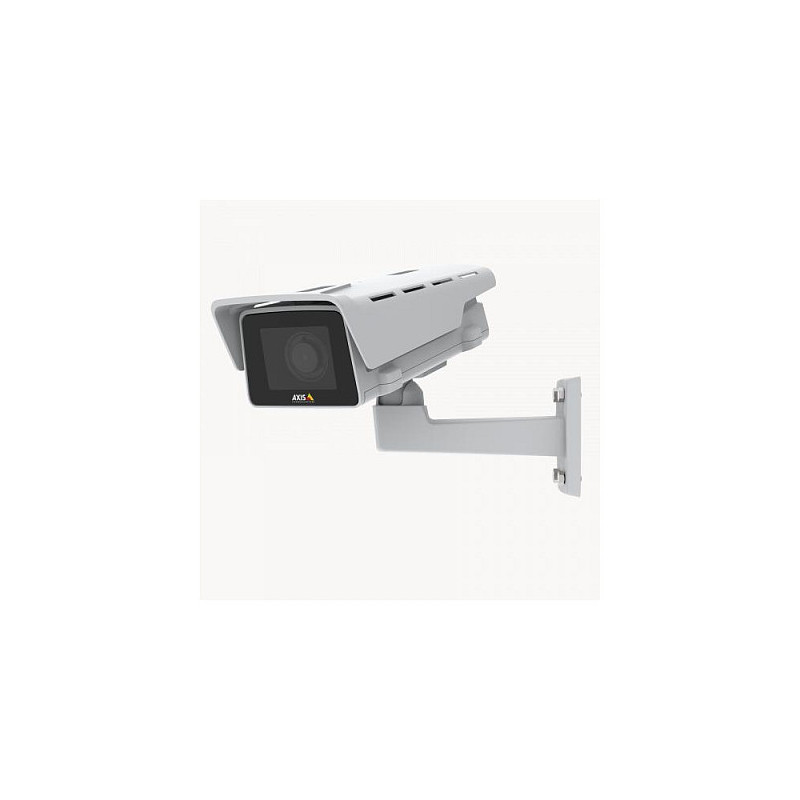

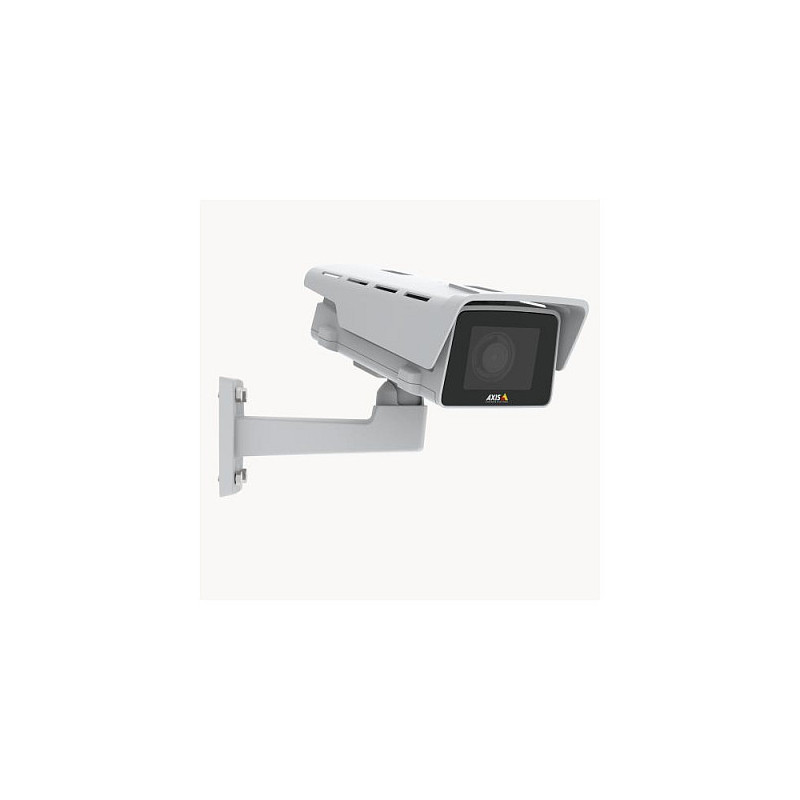

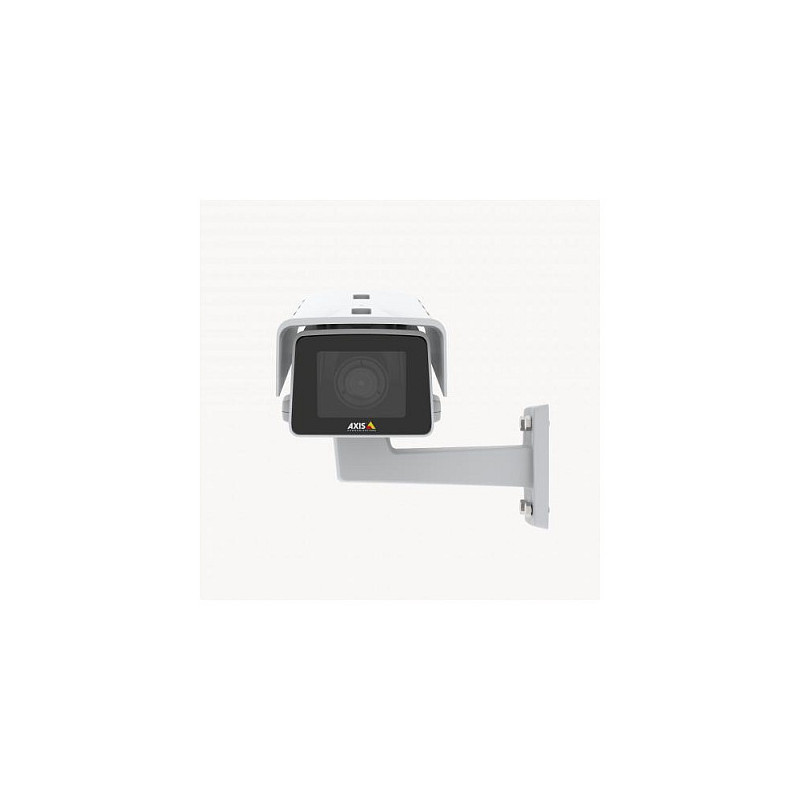

Axis 02486-001 security camera

Axis 02486-001. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.17 lx, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 82°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 13 mm
This affordable, outdoor-ready camera is easy to install and operate. With PoE and redundant DC power, it ensures your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera's CS-mount enables flexibility for exchangeable lenses. Thanks to AXIS Object Analytics you can detect and classify humans and vehicles. Furthermore, it comes enclosed in an IP66-, IK10-, and NEMA 4X-rated casing to protect against water, corrosion, dust, and impacts.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes

Design

Form factor: Box
Mounting type: Wall
Product colour: White
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0.17 lx
Lens viewing angle, horizontal: 112°
Lens viewing angle, vertical: 82°

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Focal length range: 2.8 - 13 mm

Night vision

Night vision: Yes

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 5 MP
Video formats supported: H.264, H.265
Video compression formats: H.264, H.265, MPEG4
Supported graphics resolutions: 160 x 120
Frame rate: 30 fps

Network

Networking standards: IEEE 802.3af, IEEE 802.3at

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Power source type: DC, PoE
Power consumption (typical): 4.4 W
Power consumption (max): 6.6 W
Power consumption (Power over Ethernet (PoE)): 4.5 W
DC output voltage: 10, 12, 15, 16, 24, 28

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width (with stand): 143 mm
Depth (with stand): 372 mm
Height (with stand): 240 mm
Weight (with stand): 1.8 kg

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
