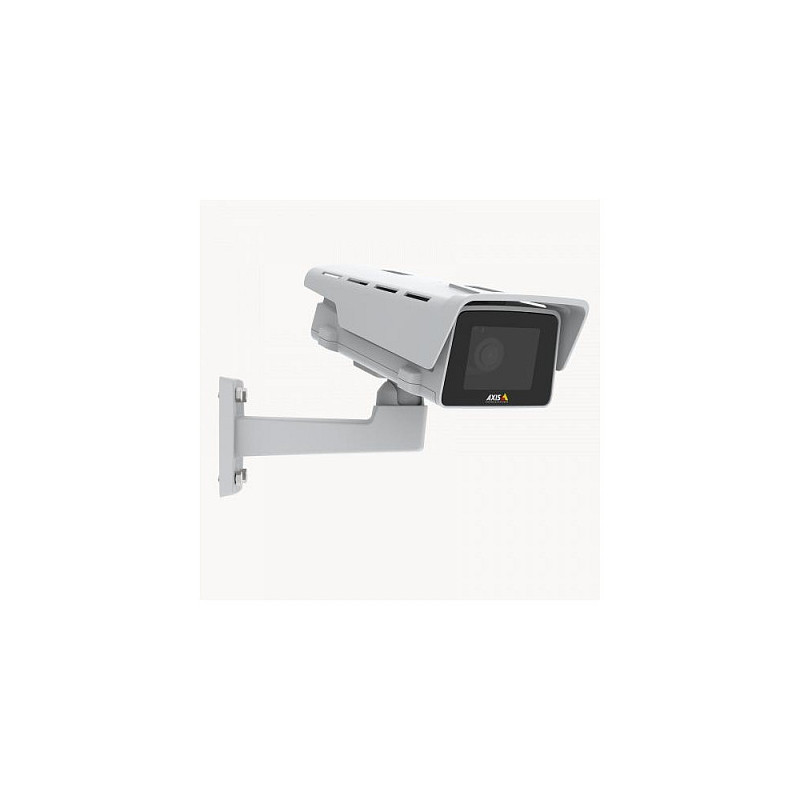

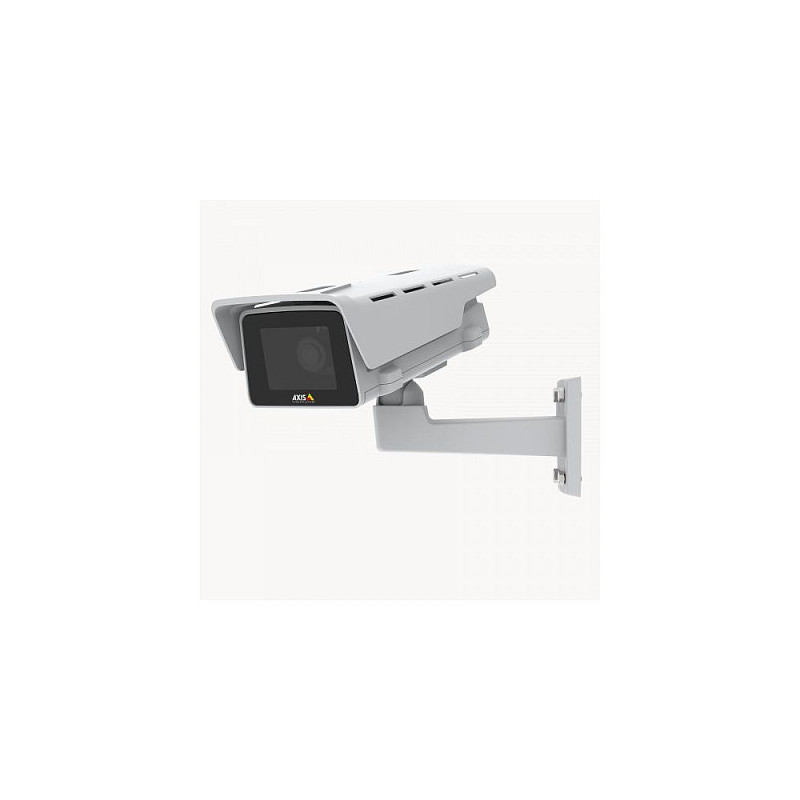

Axis 02485-001 security camera

Axis 02485-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 49°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3 - 10.5 mm

This affordable, outdoor-ready camera is easy to install and operate. Enclosed in an IP66-, IK10- and NEMA 4X-rated casing, it supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera's CS-mount enables flexibility for exchangeable lenses. With AXIS Object Analytics preinstalled, it's possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Box
Mounting type: Wall
Product colour: White
International Protection (IP) code: IP66
IK code: IK10

Camera

Minimum illumination: 0.1 lx
Lens viewing angle, horizontal: 90°
Lens viewing angle, vertical: 49°

Image sensor

Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Lens system

Focal length range: 3 - 10.5 mm

Night vision

Feature: Night vision

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: H.264, H.265
Video compression formats: H.264, H.265, MPEG4
Supported graphics resolutions: 160 x 90
Frame rate: 30 fps

Audio

Audio system: 2-way

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3af, IEEE 802.3at

Storage

Flash memory: 512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Power source type: DC, PoE
Power consumption (typical): 4.4 W
Power consumption (max): 6.6 W
Power consumption (Power over Ethernet (PoE)): 4.5 W
DC output voltage: 10, 12, 15, 16, 24, 28

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 143 mm
Depth: 317 mm
Height: 108 mm
Width (with stand): 143 mm
Depth (with stand): 372 mm
Height (with stand): 240 mm
Weight (with stand): 1.8 kg

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
