Axis 02483-001 security camera

Axis 02483-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.1 lx, Camera shutter speed: 1/33500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3 - 10.5 mm

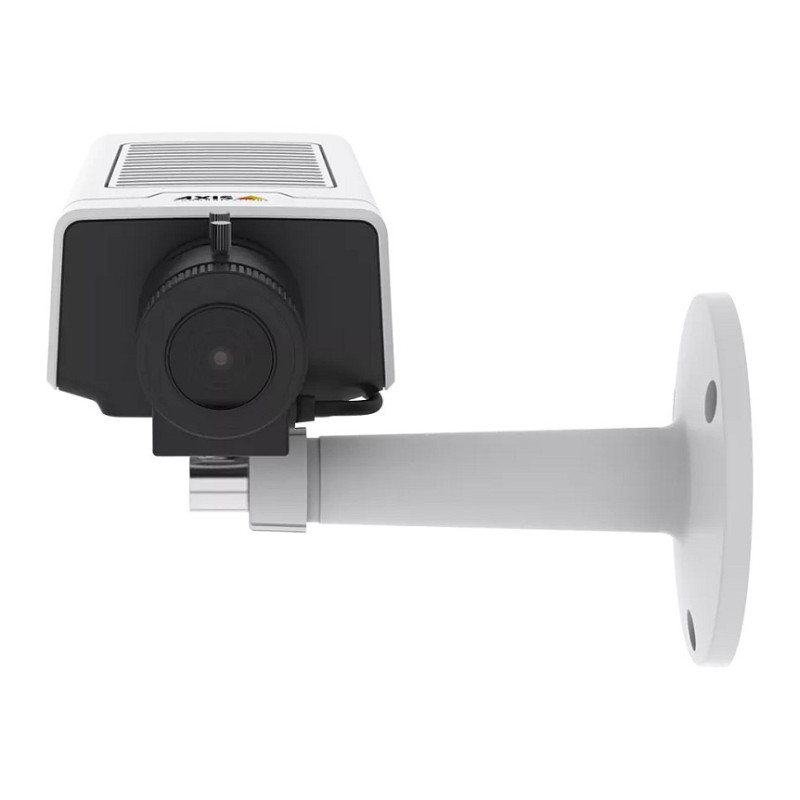

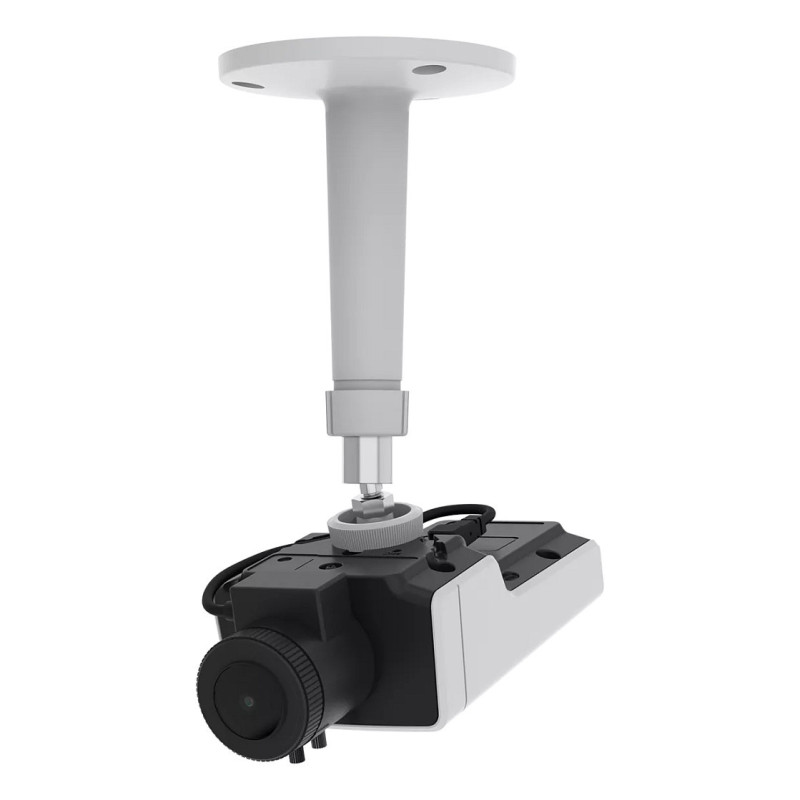

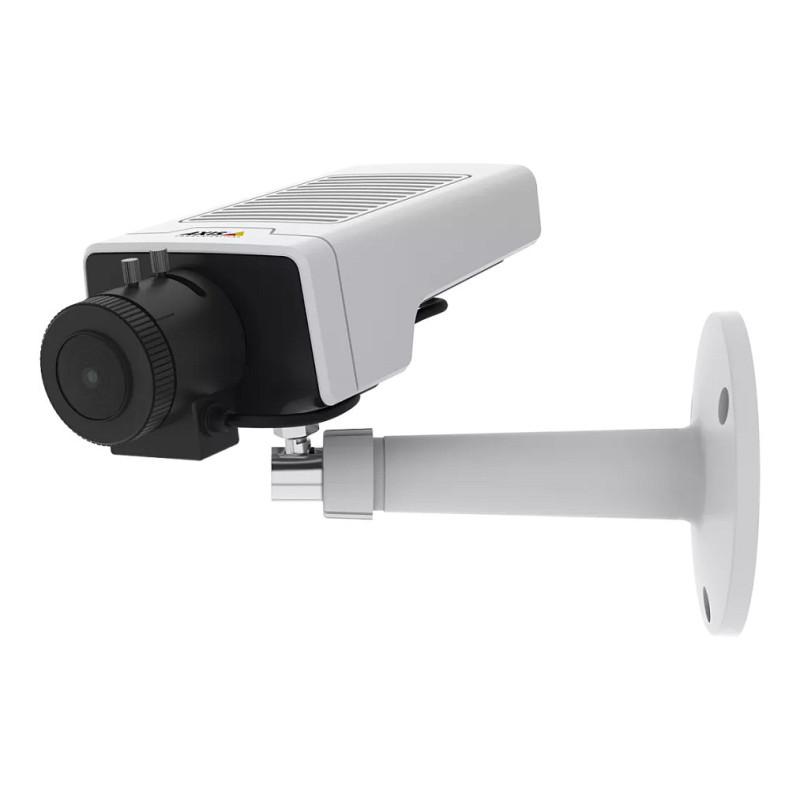

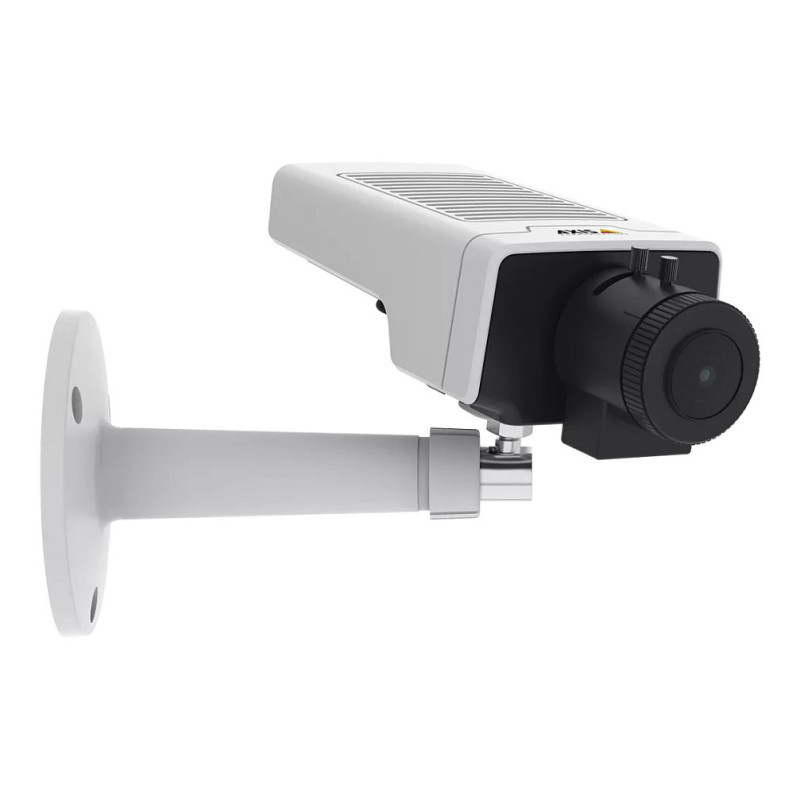

AXIS M1135 Mk II is an affordable, compact box camera that's easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it's possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.

Performance

Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Box
Mounting type: Wall
Product colour: Black, White

Camera

Minimum illumination: 0.1 lx
Camera shutter speed: 1/33500 - 2 s

Image sensor

Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Lens system

Focal length range: 3 - 10.5 mm

Night vision

Feature: Night vision

Video

Maximum resolution: 1920 x 1080 pixels
Frame rate: 30 fps

Audio

Audio system: 2-way

Network

Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Storage

Flash memory: 512 MB

Security

Feature: Active tampering alarm

Power

Power source type: DC, PoE
Power consumption (typical): 4.4 W
Power consumption (max): 6.6 W
Power consumption (Power over Ethernet (PoE)): 4.5 W
DC output voltage: 10, 12, 15, 16, 24, 28
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -20 - 50 °C

Packaging content

Number of cameras: 1

Technical details

Feature: Night mode

Logistics data

Harmonized System (HS) code: 85258900
