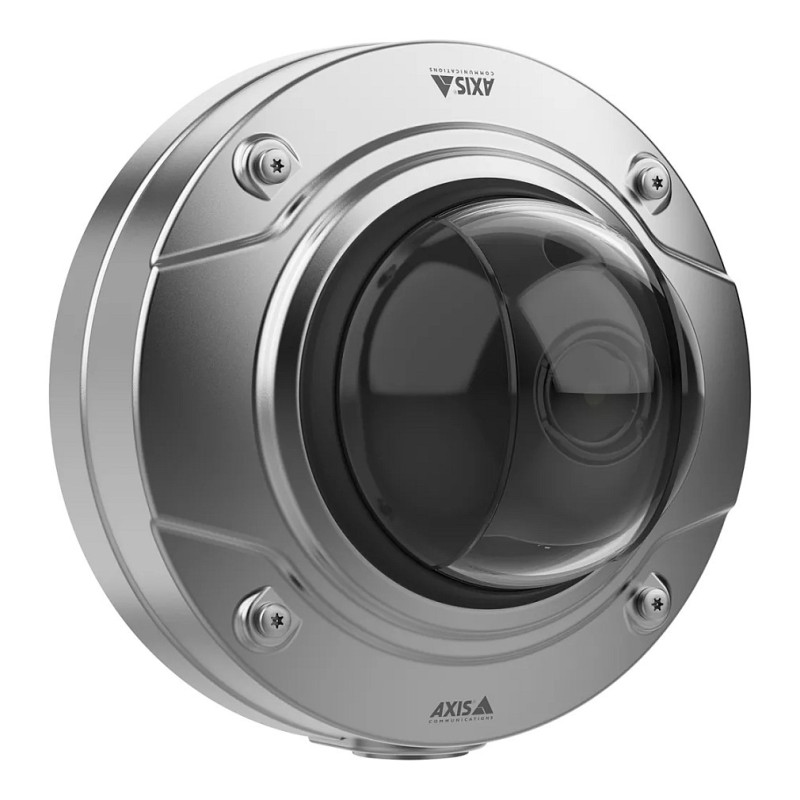

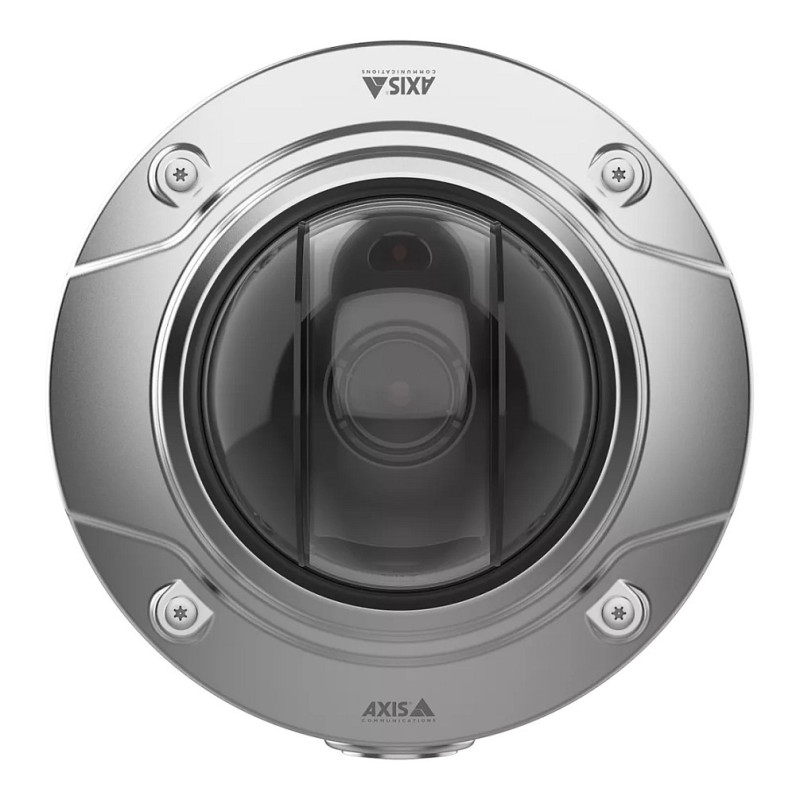

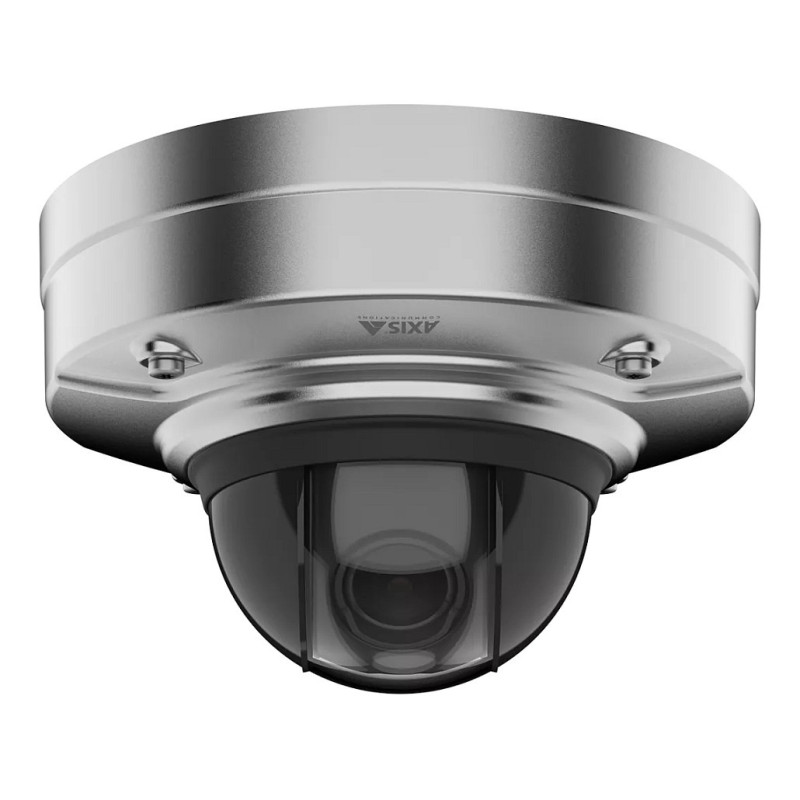

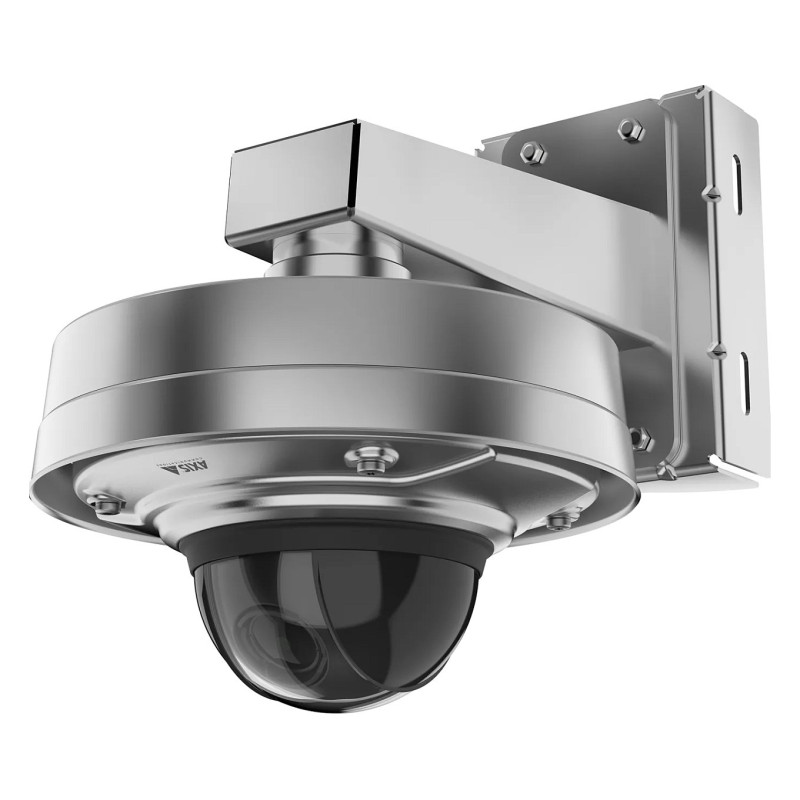

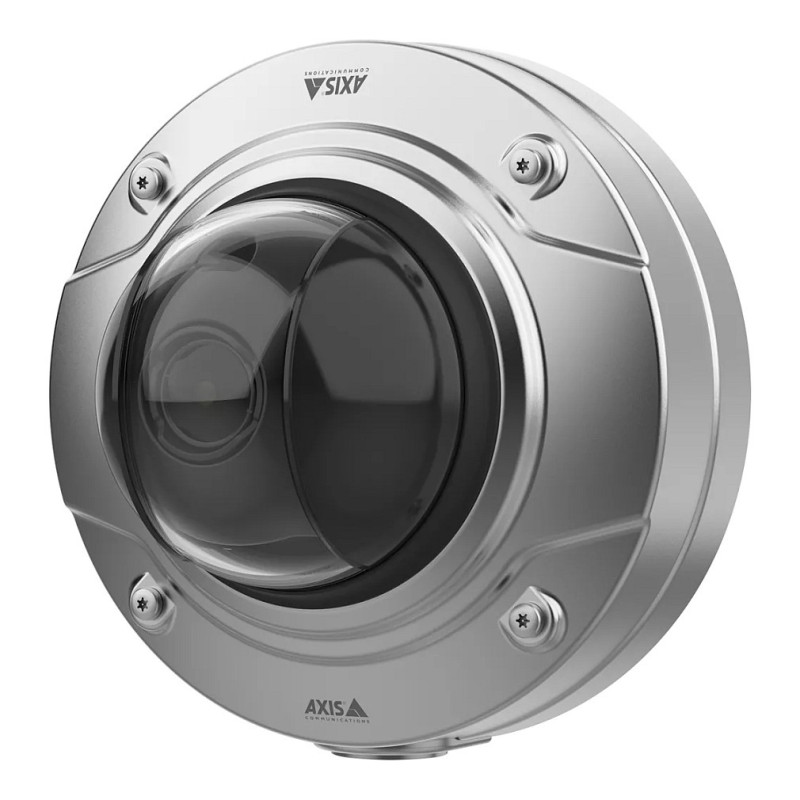

Axis 02463-001 security camera

Axis 02463-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Silver, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -43 - 80°, Camera shutter speed: 1/66500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Focal length range: 6.2 - 12.9 mm

Enclosed in marine-grade stainless steel (SS 316L), DNV-certified casing, this robust camera is resistant to the corrosive effects of sea water and cleaning chemicals. Plus, it's protected against redirection, defocusing, and impacts and can withstand wide temperatures ranges. It offers outstanding image quality in superior 4K resolution under any light conditions. Featuring a deep learning processing unit (DLPU), it supports advanced analytics based on deep learning on the edge. And, thanks to AXIS Object Analytics, it can detect and classify people, and different types of vehicles—all tailored to specific needs. Furthermore, built-in cybersecurity features help safeguard your system.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Silver
International Protection (IP) code: IP66, IP69K
IK code: IK10+
Feature: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.07 lx
Tilt angle range: -43 - 80°
Camera shutter speed: 1/66500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.2 mm (1 / 1.2")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 1
Focal length range: 6.2 - 12.9 mm

Night vision

Feature: Night vision
LED type: IR

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264, H.265
Feature: Video recording
Frame rate: 60 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking

Audio

Audio formats supported: AAC-LC, G.711, G.726, OPUS
Feature: Built-in microphone
Feature: Audio detection

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8194 MB
Internal memory: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Alert notification type: E-mail
Feature: Pixel counter
Feature: Human and vehicle targets classification

Power

Power source type: PoE
Power consumption (typical): 9 W
Power consumption (max): 23 W

Operational conditions

Operating temperature (T-T): -50 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Mounting brackets included
Feature: Drilling template included
Feature: Manual
