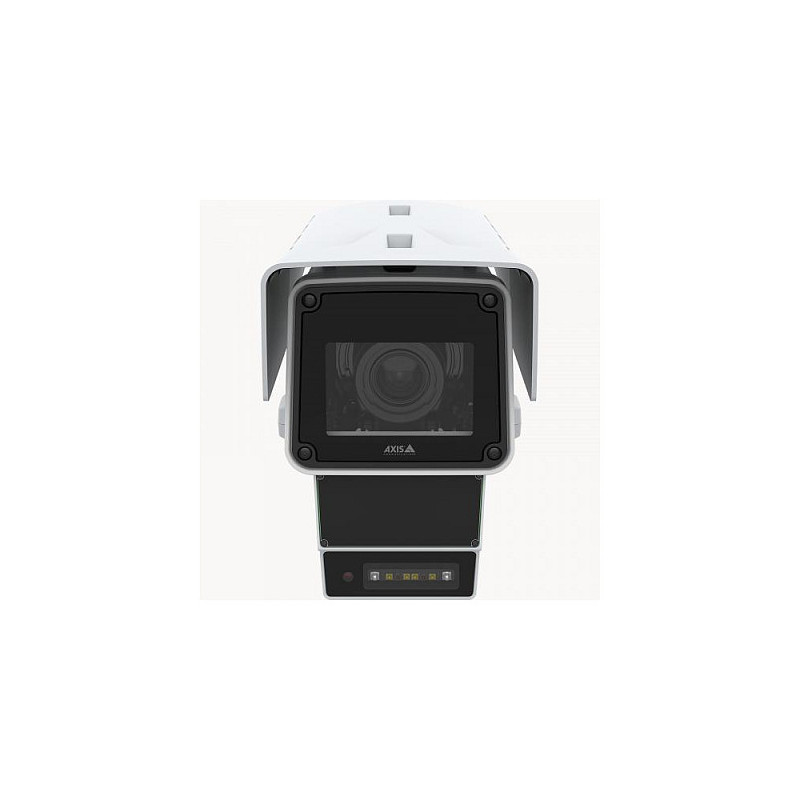

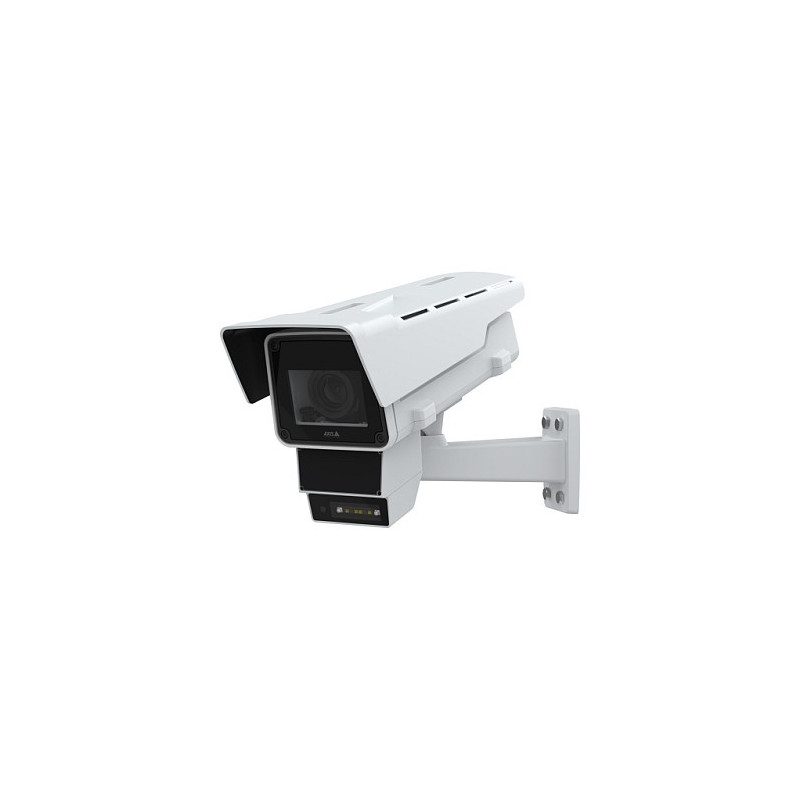

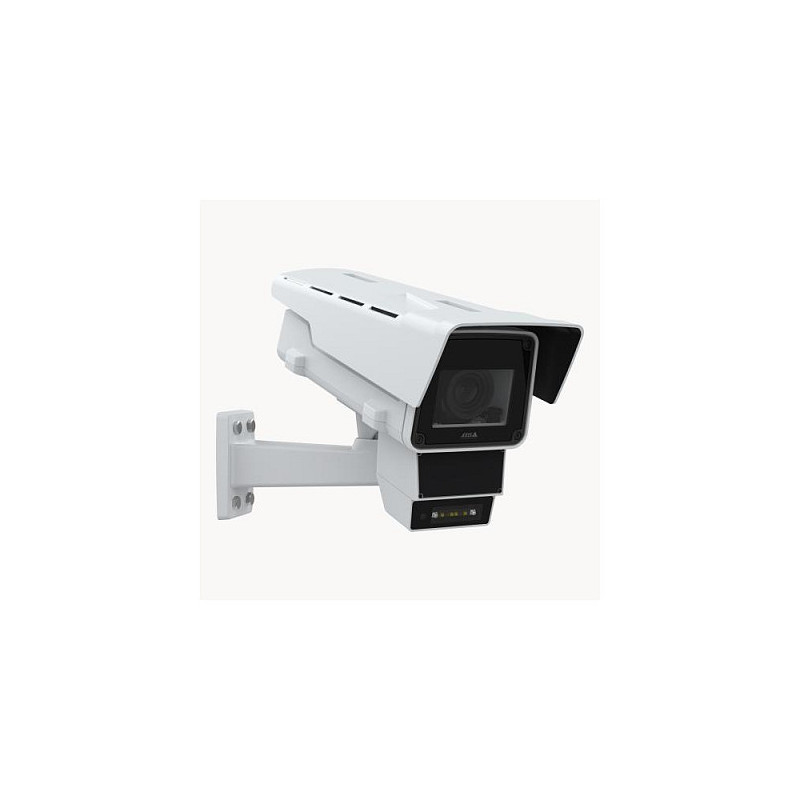

Axis 02420-001 security camera

Axis 02420-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.05 lx, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.5x, Focal length range: 3.9 - 10 mm, Normal focusing range: 0.5 m
This unique device fuses two powerful technologies to deliver next-level detection and visualization for reliable wide-area intrusion protection 24/7. Video and radar analytics come together in AXIS Object Analytics to provide precise localization and object classification powered by deep learning and distance and speed measurements based on an object's radar signature and movement characteristics. By default, our intelligent fusion system handles notifications in the most advantageous way depending on what best suits the circumstances. Or, if you prefer, you can choose between minimizing false notifications or never missing a thing.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
PTZ protocols: Pelco-D
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification: CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Design

Form factor: Box
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Yes
International Protection (IP) code: IP66
IK code: IK08

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.05 lx
Camera shutter speed: 1/47500 - 1 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 2.5x
Number of lenses: 4
Focal length range: 3.9 - 10 mm
Auto focus: Yes
Normal focusing range: 0.5 m

Night vision

Night vision: Yes
Night vision distance: 50 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265
Video recording: Yes
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation
Flip mirror: Yes
Privacy masking: Yes
Text caption overlay: Yes
Bit rate: Configurable bit rate

Audio

Audio system full duplex: Yes
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio detection: Yes

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog
Quality of Service (QoS) support: Yes

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Flash memory: 8194 MB
Internal memory: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Terminal block port: Yes

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
Security algorithms: EAP-TLS
HTTPS encryption: Yes
Alert notification type: E-mail, Text alert message
Pixel counter: Yes
Digest authentication: Yes

Power

Power source type: PoE
AC input voltage: 10 - 28 V
Power consumption (typical): 9.5 W
Power consumption (max): 25.5 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Packaging content

Number of cameras: 1

Other features

Doesn't contain: BFR, PVC
