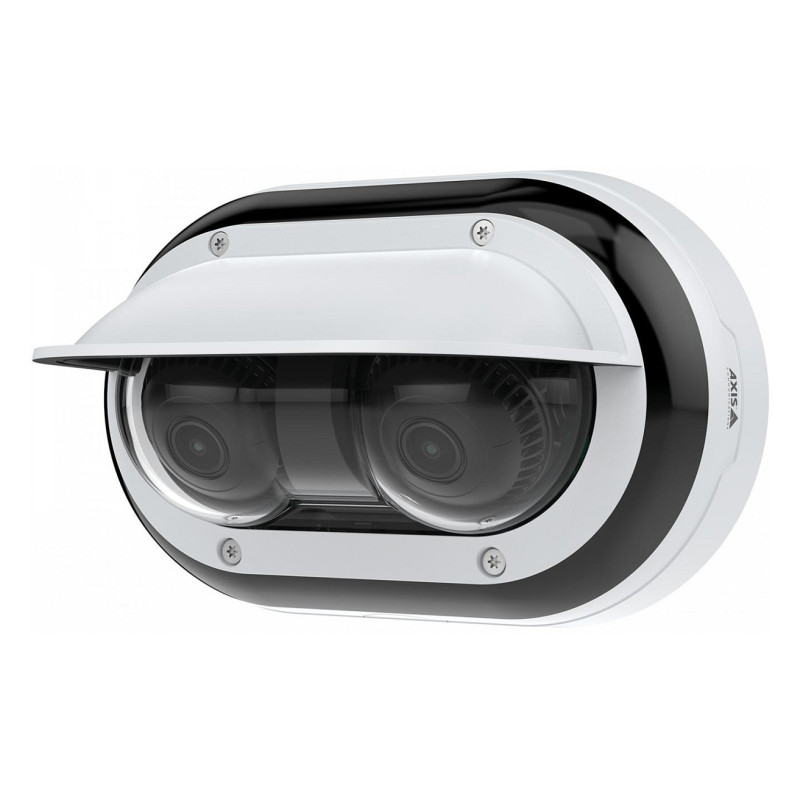

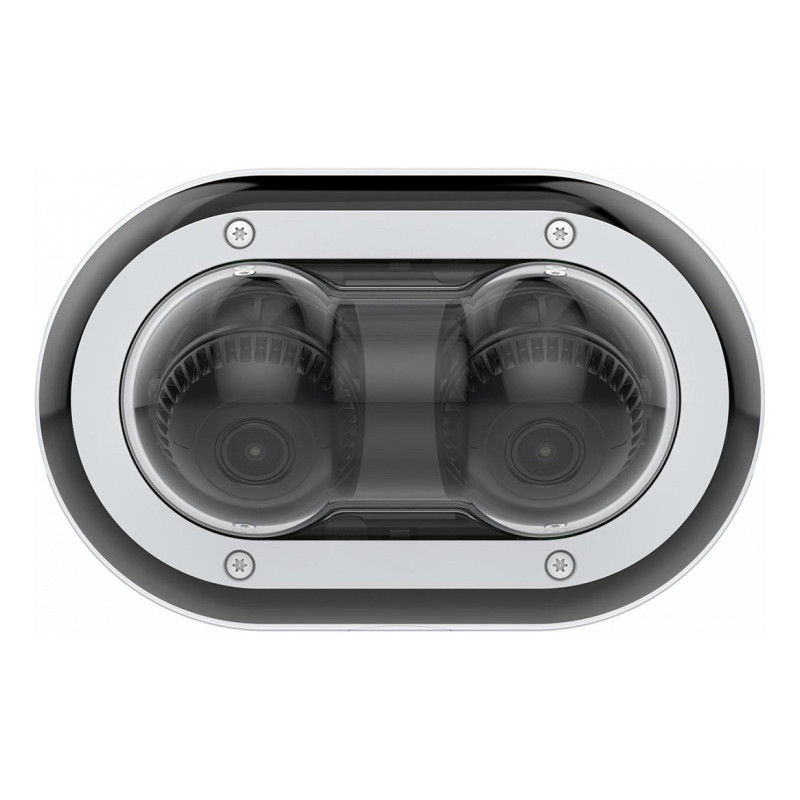

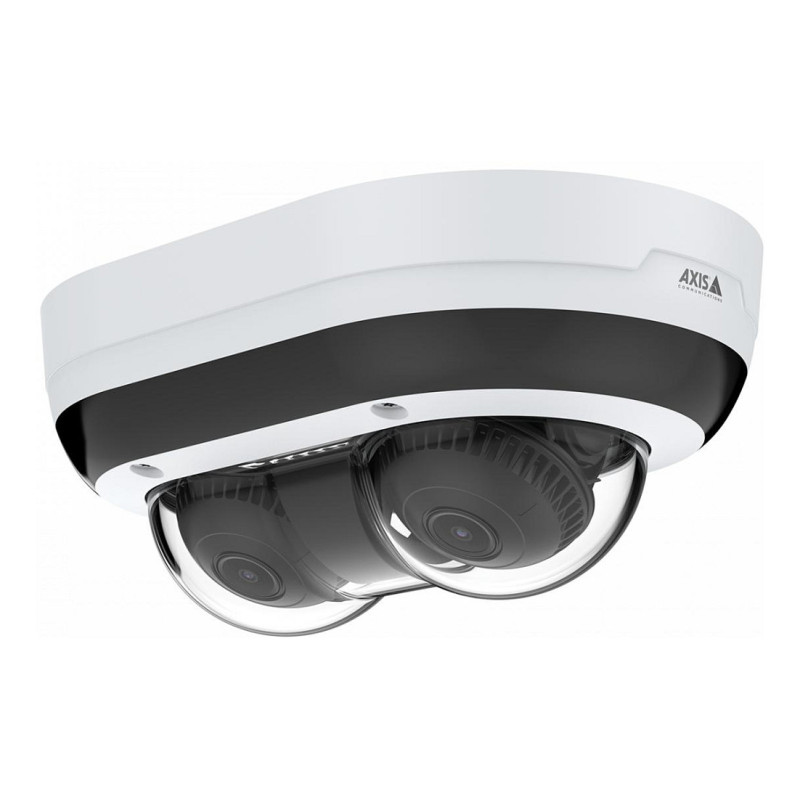

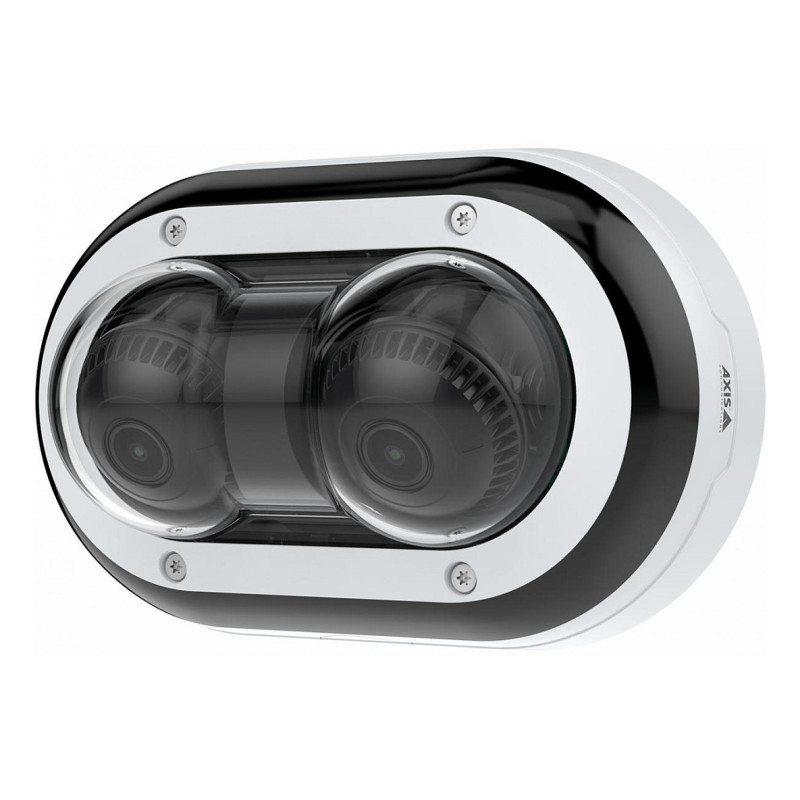

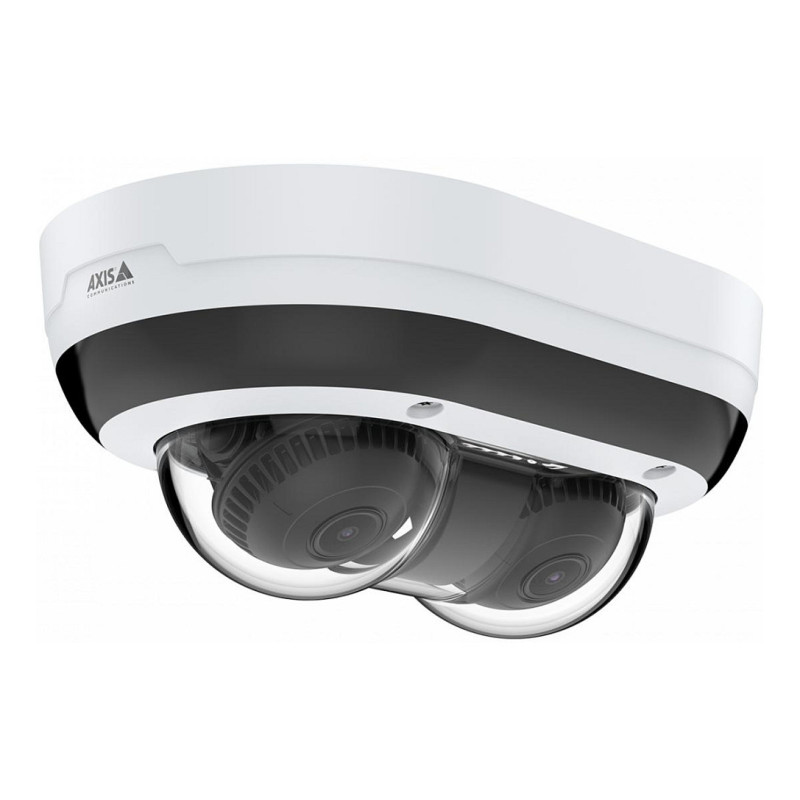

Axis 02416-001 security camera

Axis 02416-001. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bulb. Angle of rotation: 170°, Lens viewing angle, horizontal: 98 - 36°, Lens viewing angle, vertical: 69 - 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Sensor type (panoramic camera): CMOS, Optical sensor size (panoramic camera): 25.4 / 2.7 mm (1 / 2.7"), Camera shutter speed (panoramic camera): 1/33500 - 1/5 s
This dual-sensor, multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes

Design

Form factor: Bulb
Mounting type: Ceiling/wall
Product colour: Black, White
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Angle of rotation: 170°
Lens viewing angle, horizontal: 98 - 36°
Lens viewing angle, vertical: 69 - 27°
Lens viewing angle, diagonal: 133 - 46°
Tilt angle range: -75 - 75°
Pan range: -100 - 110°
Camera shutter speed: 1/33500 - 1/5 s

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Panoramic camera

Sensor type (panoramic camera): CMOS
Optical sensor size (panoramic camera): 25.4 / 2.7 mm (1 / 2.7")
Camera shutter speed (panoramic camera): 1/33500 - 1/5 s
Minimum illumination (panoramic camera): 0.19 lx
Focal length range (panoramic camera): 3.26 - 8.12 mm

Lens system

Zoom capability: Yes
Number of lenses: 1
Focal length range: 3.26 - 8.12 mm
Auto focus: Yes

Night vision

Night vision: Yes
LED type: IR

Video

Maximum resolution: 2592 x 1944 pixels
Total megapixels: 2.5 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 2560 x 1440, 2592 x 1944
Frame rate: 30 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Sharpness
Privacy masking: Yes

Audio

Built-in speaker(s): Yes
Audio system: 2-way
Audio codecs: 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes
Live view: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes

Security

Password protection: Yes
IP address filtering: Yes
Security algorithms: HTTPS

Power

Power source type: PoE
Power consumption (Power over Ethernet (PoE)): 7.9 W

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 133 mm
Depth: 208 mm
Height: 88 mm
Weight: 975 g

Packaging content

Number of cameras: 2

Other features

Doesn't contain: BFR, PVC
