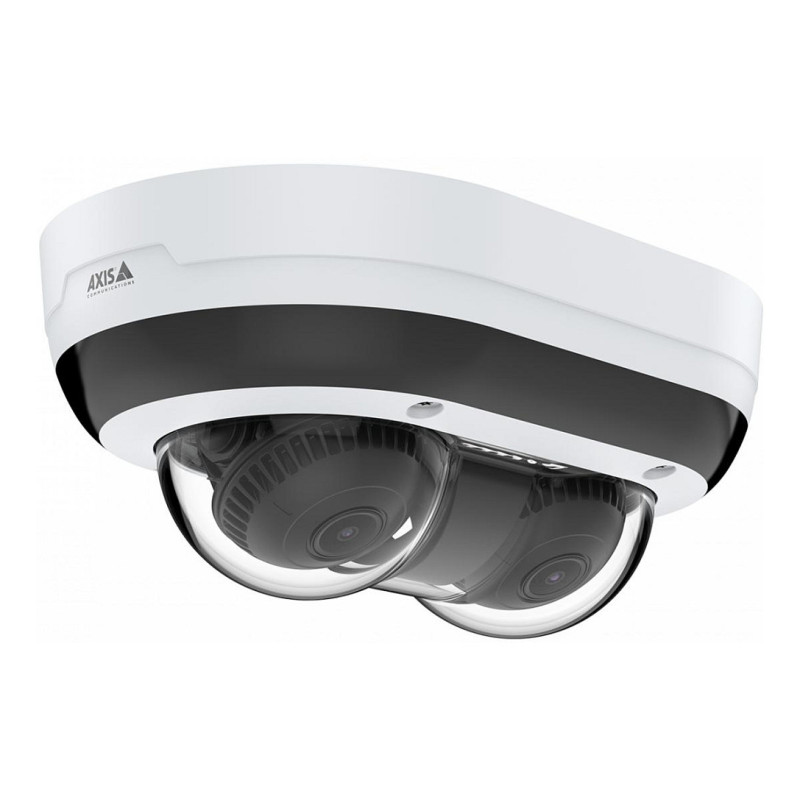

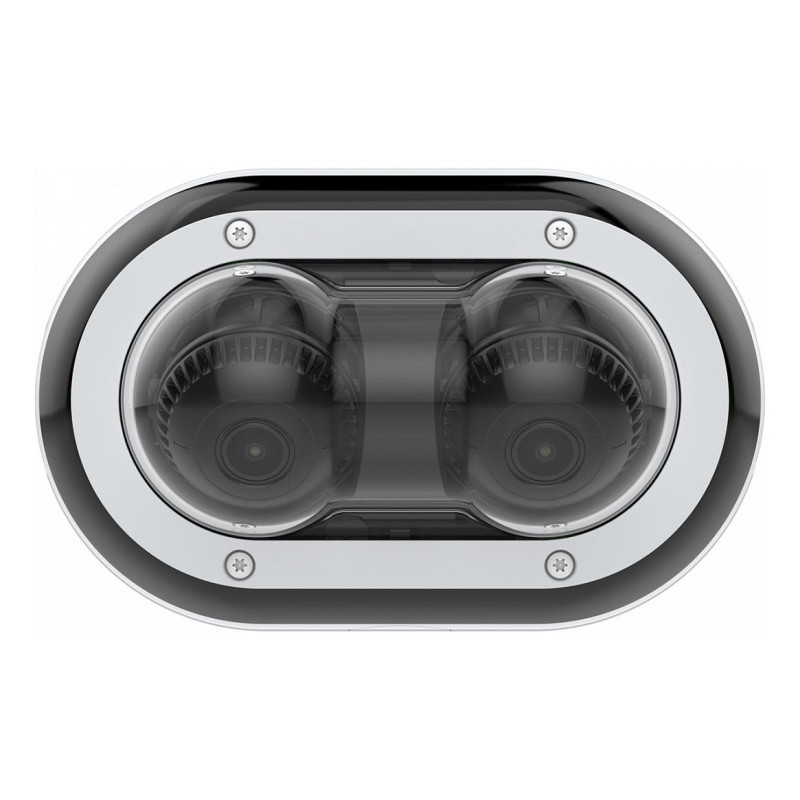

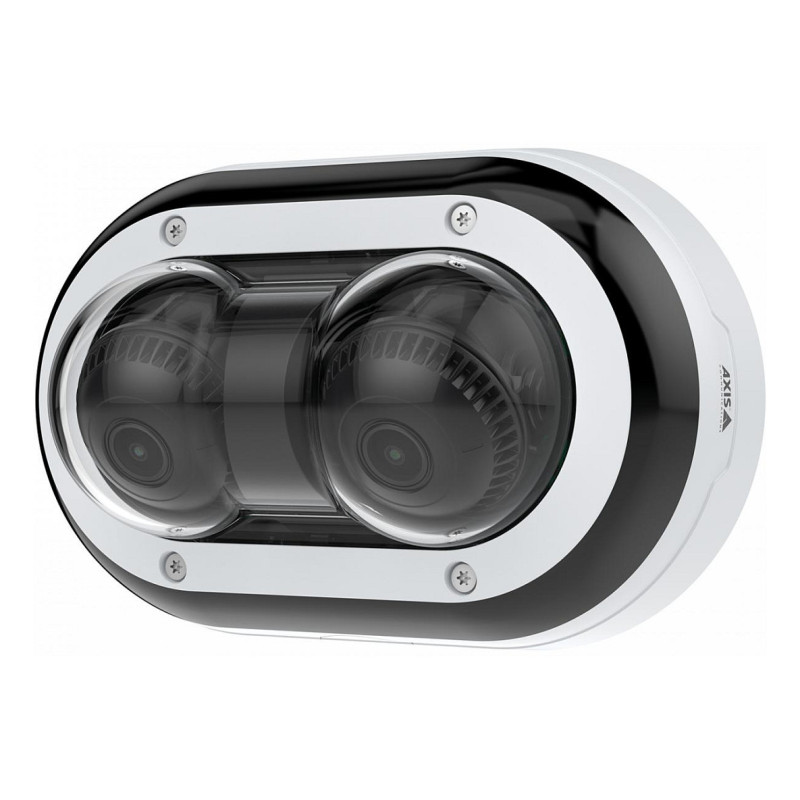

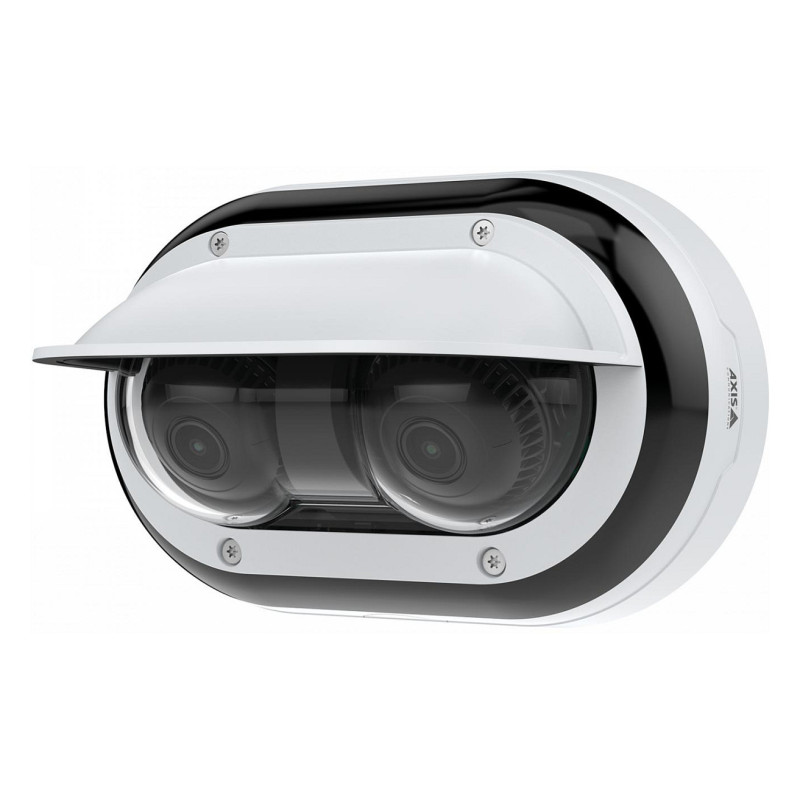

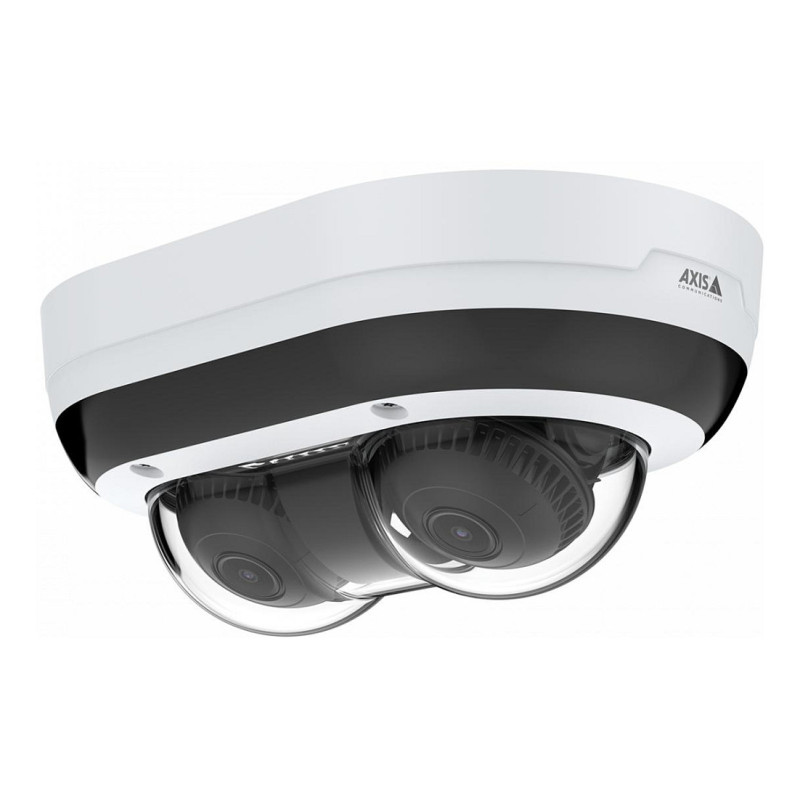

Axis 02415-001 security camera

Axis 02415-001. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bulb. Angle of rotation: 170°, Lens viewing angle, horizontal: 107 - 39°, Lens viewing angle, vertical: 55 - 22°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS, Optical sensor size (panoramic camera): 25.4 / 2.8 mm (1 / 2.8"), Camera shutter speed (panoramic camera): 1/20000 - 1.5 s
This dual-sensor, multidirectional camera offers 2*2 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Bulb
Mounting type: Ceiling/wall
Product colour: Black, White
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Angle of rotation: 170°
Lens viewing angle, horizontal: 107 - 39°
Lens viewing angle, vertical: 55 - 22°
Lens viewing angle, diagonal: 131 - 45°
Tilt angle range: -75 - 75°
Pan range: -100 - 110°
Camera shutter speed: 1/20000 - 1.5 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Panoramic camera

Sensor type (panoramic camera): CMOS
Optical sensor size (panoramic camera): 25.4 / 2.8 mm (1 / 2.8")
Camera shutter speed (panoramic camera): 1/20000 - 1.5 s
Minimum illumination (panoramic camera): 0.1 lx

Lens system

Feature: Zoom capability
Number of lenses: 1
Focal length range: 3.3 - 8.1
Feature: Auto focus

Night vision

Feature: Night vision
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 640 x 360, 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Frame rate: 60 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Sharpness

Audio

Feature: Built-in speaker(s)
Audio system: 2-way

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at
Feature: Quality of Service (QoS) support
Feature: Live view

Storage

Feature: Card reader integrated

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: IP address filtering
Security algorithms: HTTPS

Power

Power source type: PoE
Power consumption (Power over Ethernet (PoE)): 7.9 W

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 133 mm
Depth: 208 mm
Height: 88 mm
Weight: 975 g

Packaging content

Number of cameras: 2

Other features

Doesn't contain: BFR, PVC
