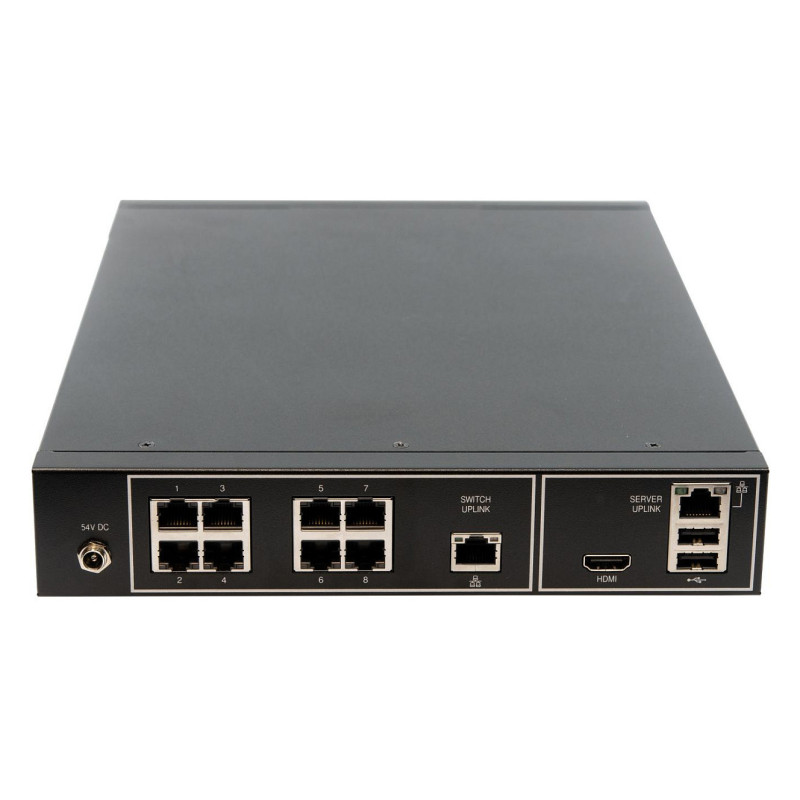

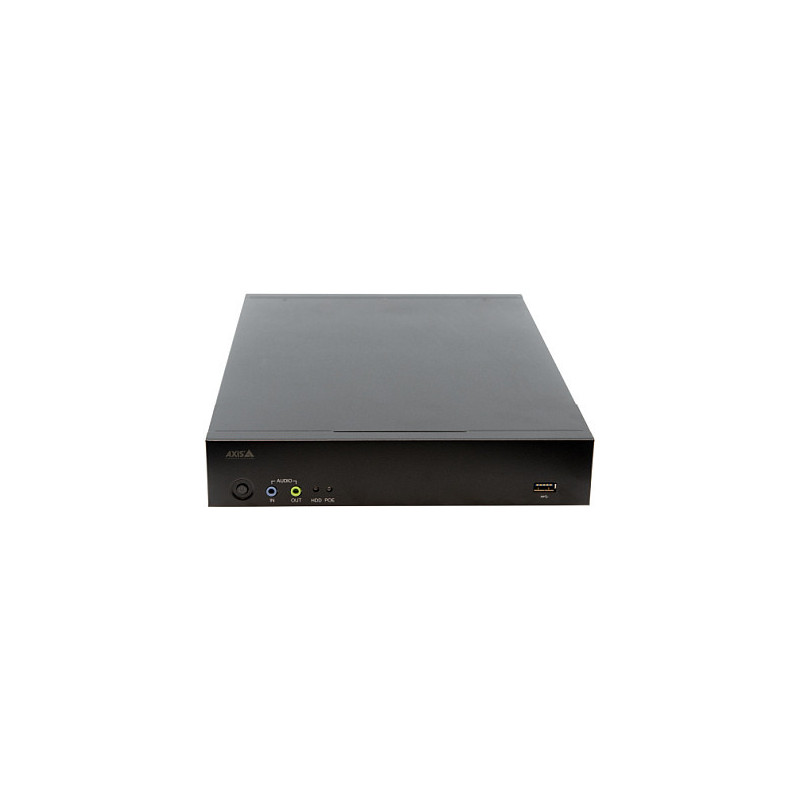

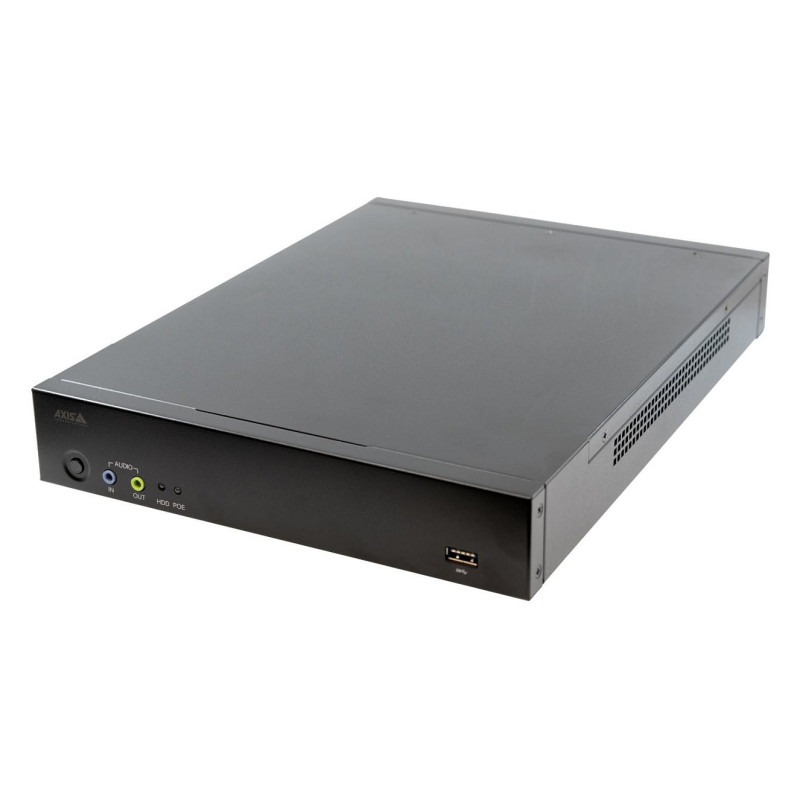

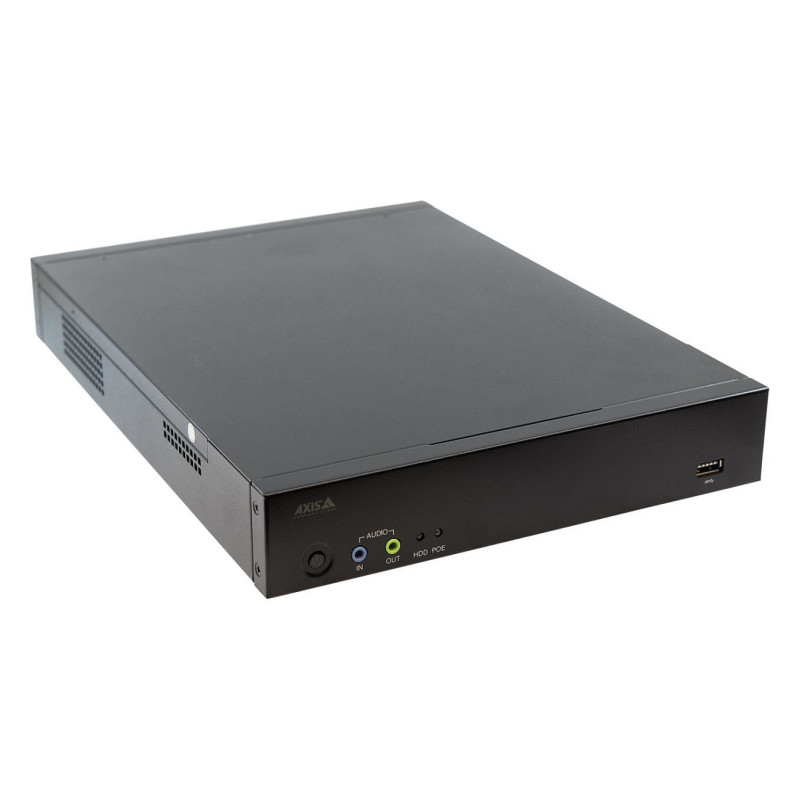

Axis 02403-002 network video recorder

Axis 02403-002. Video input channels: 8 channels, Maximum resolution: 1920 x 1080 pixels, Number of simultaneously playbacked channels: 9 channels. HDD capacity: 2 TB, Total installed storage capacity: 2 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Brand compatibility: Axis, LED indicators: HDD, PoE, Product colour: Black. Power consumption (max): 30 W, Power consumption (typical): 27 W, AC input voltage: 100 - 240 V

This affordable, all-in-one appliance includes a VMS client/server, storage, and an integrated PoE switch—all validated to meet the demands for reliable, basic surveillance up to 1080p. Designed to fit almost everywhere, AXIS S2108 is one of the most compact recorders on the market. It comes preloaded with AXIS Camera Station and preconfigured software licenses, so out-of-the-box you get seamless and reliable integration to all your Axis network cameras. Extensively tested with a wide range of Axis products, this smart appliance is easy to install, use, and maintain. Furthermore, it includes an advanced replacement service and a 5-year hardware warranty.

Performance

Video input channels: 8 channels
Number of simultaneously playbacked channels: 9 channels
Video recording modes: 720p, 1080p
Maximum resolution: 1920 x 1080 pixels
Internal memory: 8192 MB
Operating system installed: Windows 10 IoT Enterprise

Hard drive

Number of HDDs installed: 1
HDD capacity: 2 TB
Number of HDDs supported: 1
Total installed storage capacity: 2 TB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 10
Feature: Power over Ethernet (PoE)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity: 8
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Feature: Line-in
Audio output: 1
Networking standards: IEEE 802.3at

Features

Brand compatibility: Axis
LED indicators: HDD, PoE
Product colour: Black

Processor

Feature: Built-in processor

Power

Power consumption (max): 30 W
Power consumption (typical): 27 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power: 180 W
Output current: 2.3 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Technical details

Compliance certificates: RoHS

Weight & dimensions

Width: 310 mm
Depth: 230 mm
Height: 44 mm
Weight: 3.5 kg

Packaging content

Cables included: AC
Feature: AC adapter included
Feature: Quick installation guide
