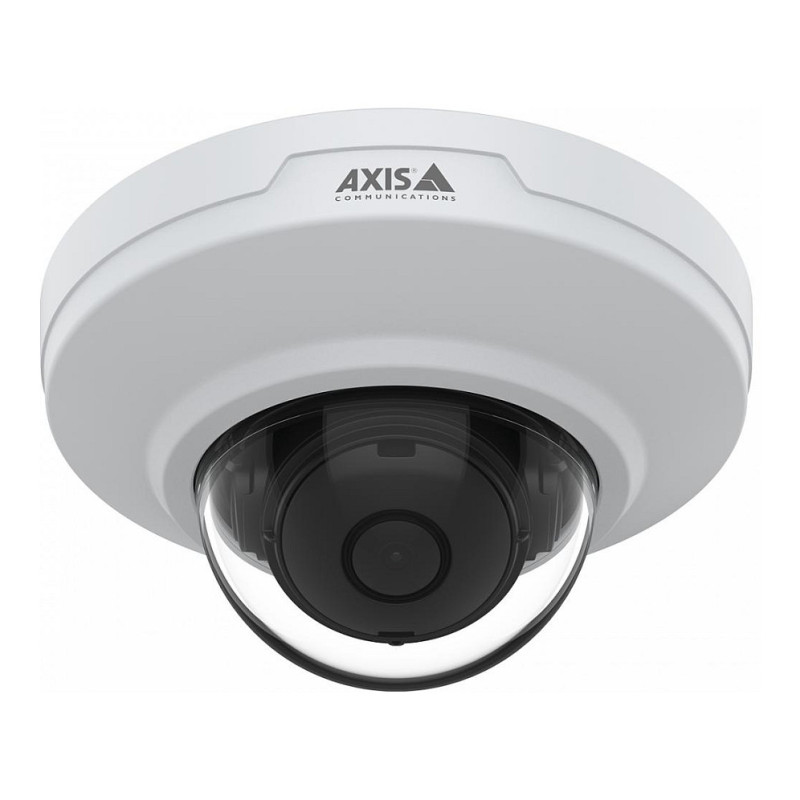

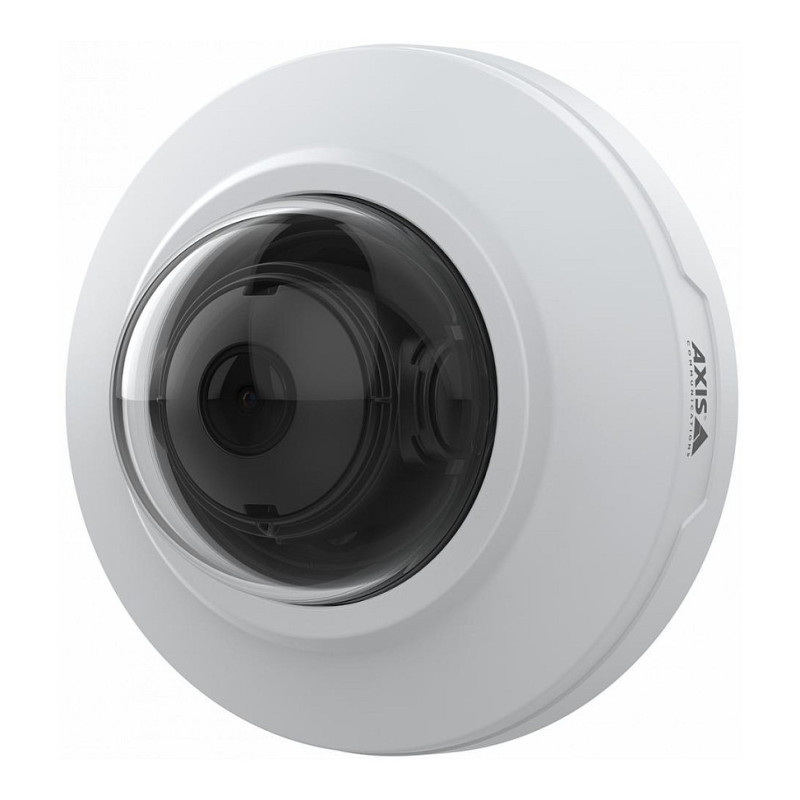

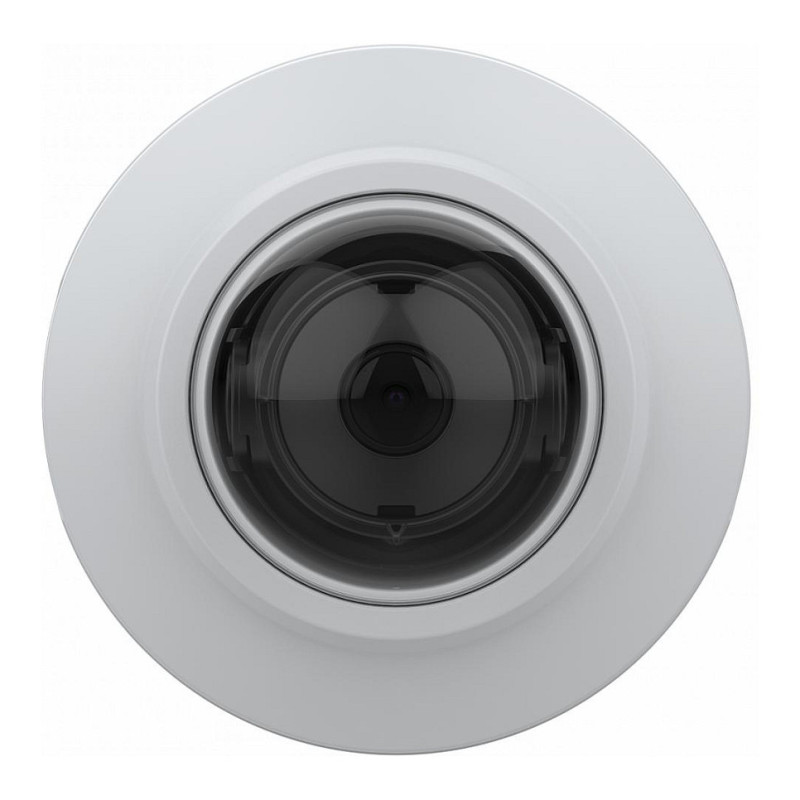

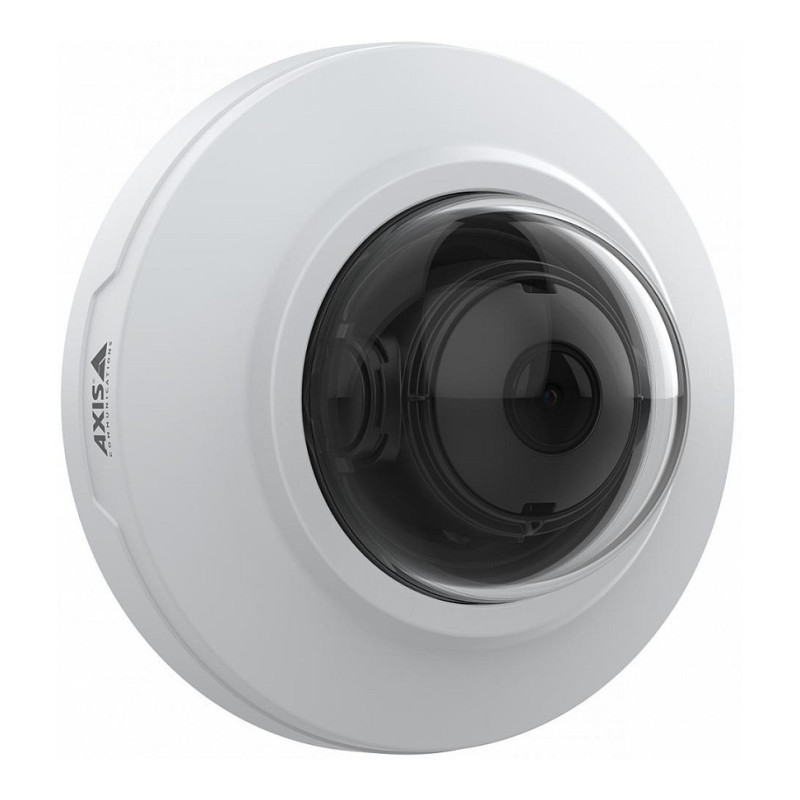

Axis 02375-001 security camera

Axis 02375-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.25 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 109°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.9 mm

This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there's both dark and light areas in the scene. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. Plus, AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering. This compact, easy-to-install, vandal-resistant camera comes factory focused so there's no manual focusing required. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: PTZ control
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Number of languages: 18

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Protection features: Dust resistant, Impact resistant, Water resistant
International Protection (IP) code: IP42
IK code: IK08

Camera

Minimum illumination: 0.25 lx
Angle of rotation: 175°
Lens viewing angle, horizontal: 109°
Lens viewing angle, vertical: 56°
Tilt angle range: 0 - 80°
Pan range: 0 - 175°
Camera shutter speed: 1/71500 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Focal length range: 2.9 mm

Night vision

Feature: Night vision

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265, M-JPEG, MPEG4
Frame rate: 15 fps
Image quality adjustment: Brightness, Contrast, Sharpness
Feature: Privacy masking

Audio

Audio system: 2-way

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Number of users: 1 user(s)
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Feature: Pixel counter
Feature: Digest authentication
Feature: Network access storage (NAS)

Power

Power source type: PoE
Power consumption (typical): 3.6 W
Power consumption (max): 4.2 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 56 mm
Diameter: 10.1 cm
Weight: 150 g

Packaging content

Number of cameras: 1
Feature: Manual

Other features

Doesn't contain: BFR, PVC
Warranty period: 5 year(s)
