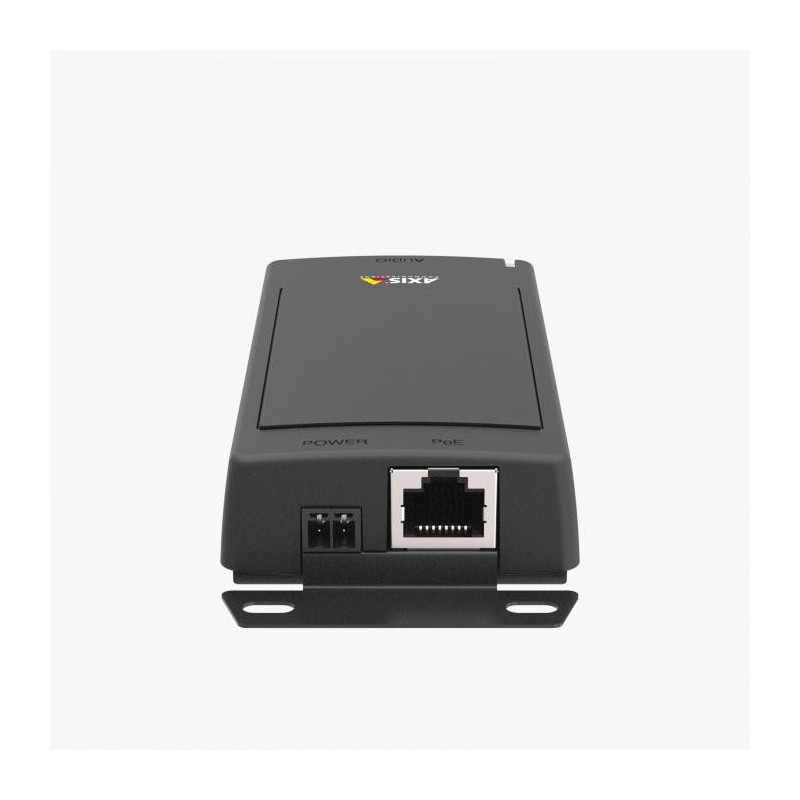

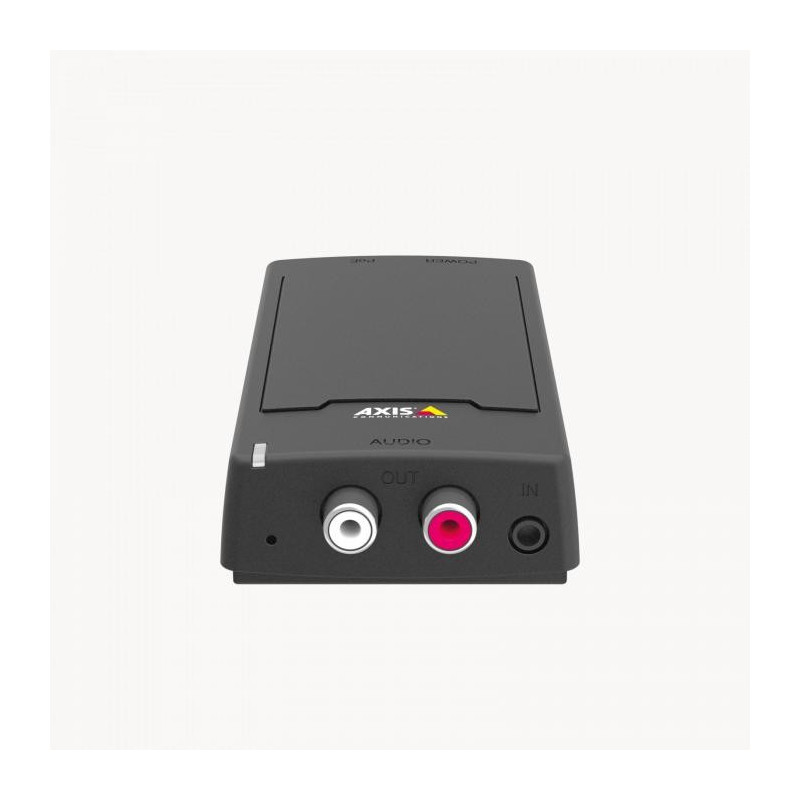

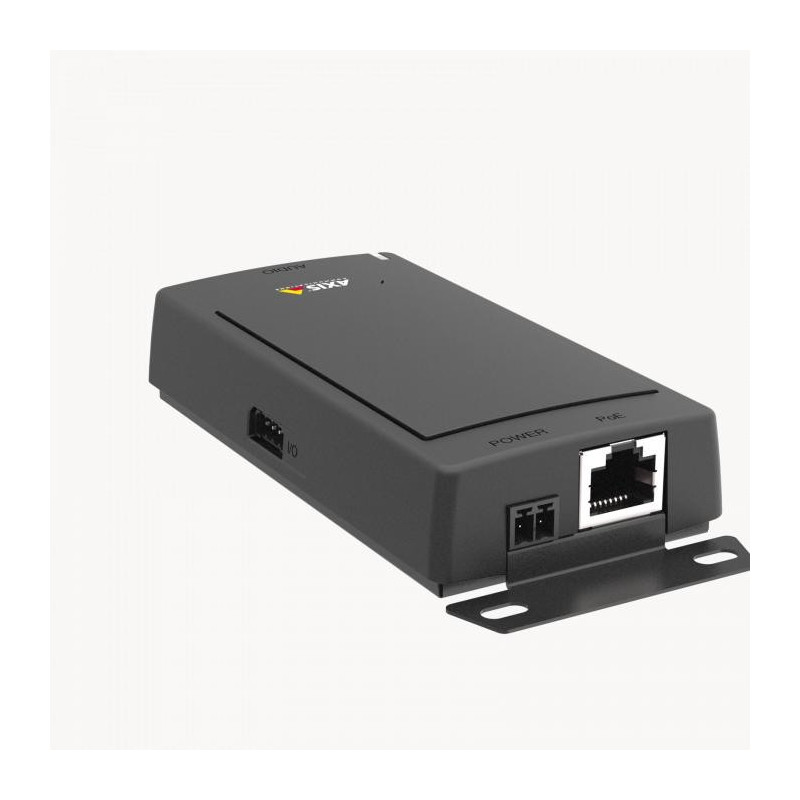

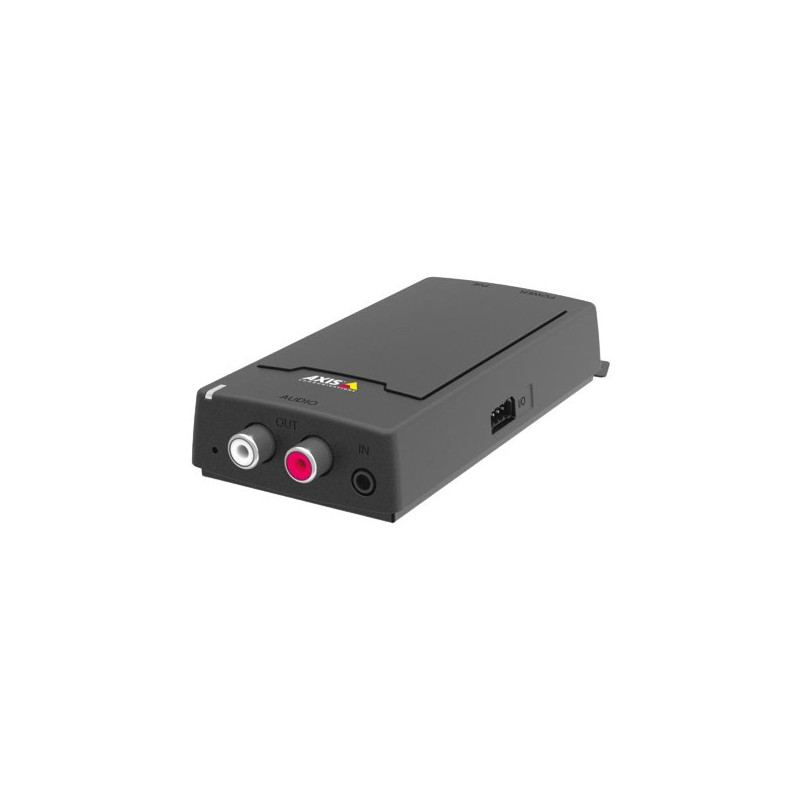

Axis 02370-001 bridge / repeater

Axis 02370-001. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.1x, IEEE 802.3at, Cabling technology: 10/100Base-T(X). Connectivity technology: Wired. Product type: Network bridge, Mounting type: Shelf/wall-mounted, Product colour: Black. Power source type: DC, PoE, DC input voltage: 8 - 28 V, Power consumption (typical): 1.85 W. Certification: CISPR 35, CISPR 32 Class B, EAC, EN 55035, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, FCC Part...

AXIS C8110 Network Audio Bridge is a smart solution based on open standards for connecting and combining analog and digital audio systems. Thanks to the built-in AXIS Audio Manager Edge application you can get functionalities like zone management and content scheduling in existing analog systems. With SIP support it is possible to connect an IP telephony system for callouts in analog speakers. With analog audio input you can easily integrate your intercom system or music streaming box with network speakers from Axis.

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.1x, IEEE 802.3at
Cabling technology: 10/100Base-T(X)

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Features

Product type: Network bridge
Mounting type: Shelf/wall-mounted
Product colour: Black
LED indicators: Yes

Power

Power source type: DC, PoE
DC input voltage: 8 - 28 V
Power consumption (typical): 1.85 W
Power consumption (max): 4 W

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 10 - 85%
Storage temperature (T-T): -40 - 65 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 128 mm
Depth: 56 mm
Height: 24 mm
Weight: 107 g

Packaging content

Feature: Quick installation guide

Other features

Warranty period: 5 year(s)

Packaging data

Quantity per pack: 1 pc(s)
