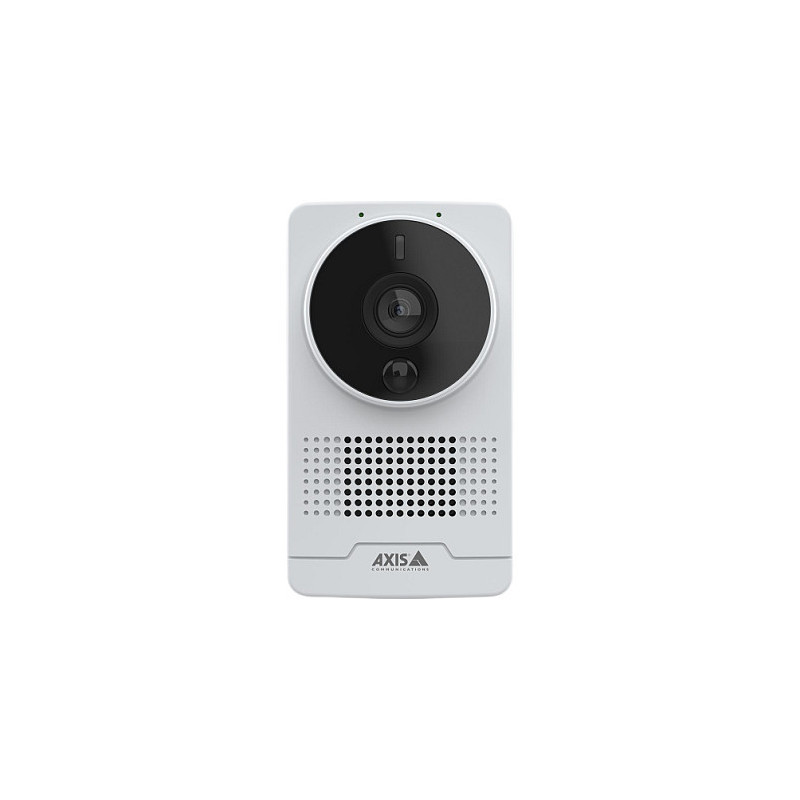

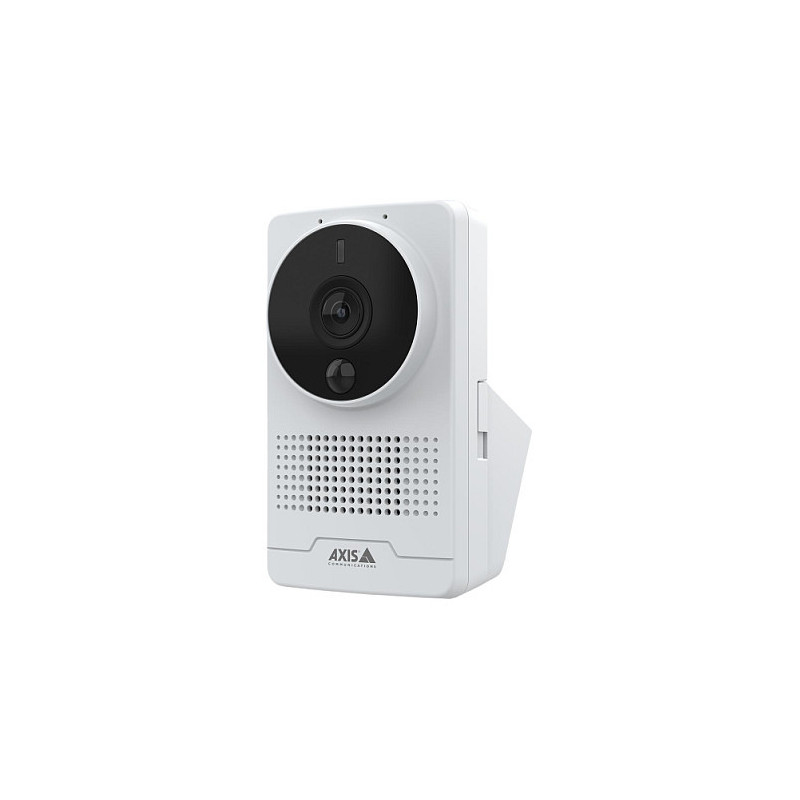

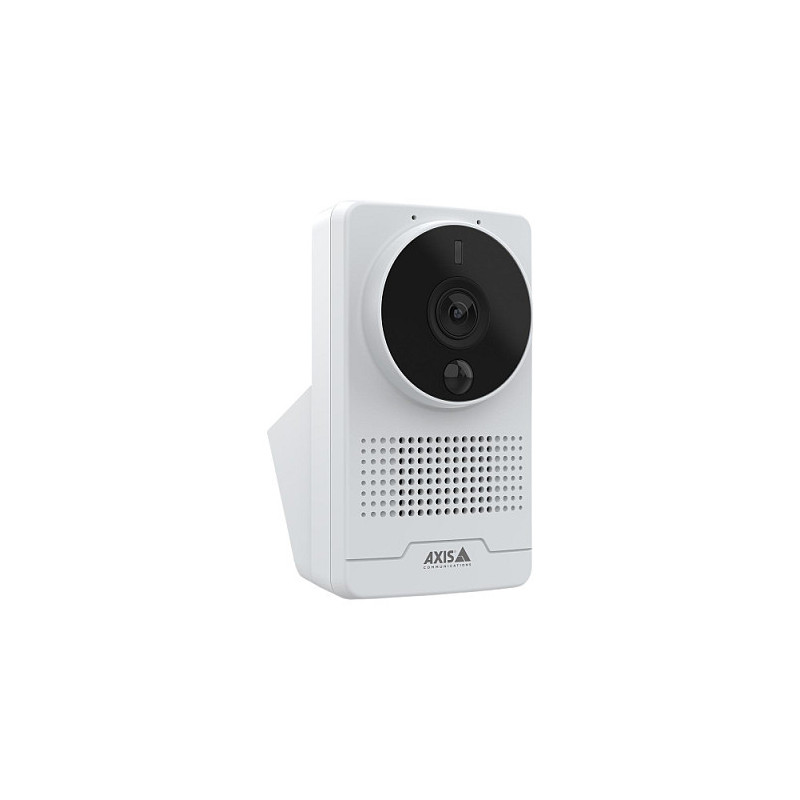

Axis 02350-001 security camera

Axis 02350-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3.16 mm, Fixed focal length: 2 mm
AXIS M1075-L offers excellent two-way audio communication and an IR-corrected lens to deliver professional-quality video both day-and-night. It includes a tally LED to indicate video streaming or recording. And, a passive infrared (PIR) sensor can detect movement even in total darkness. This compact camera includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Built-in cybersecurity features prevent unauthorized access and safeguard your system. Furthermore, it includes a HDMI port and with support for Session Initiation Protocol (SIP), it's easy to integrate with IP-systems. Optional wireless kit available.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: EMCEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,VCCI Class ASafetyCAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3,IEC 62471 (exempt)NetworkNIST SP500-267

Design

Form factor: Box
Mounting type: Wall
Product colour: White
Housing material: Aluminium, Plastic

Camera

Minimum illumination: 0.03 lx
Lens viewing angle, horizontal: 103°
Lens viewing angle, vertical: 55°
Camera shutter speed: 1/19000 - 1/5 s

Image sensor

Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Focal length range: 3.16 mm
Fixed focal length: 2 mm

Night vision

Night vision: Yes
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Video formats supported: H.264
Video compression formats: H.264, H.265, MPEG4
Frame rate: 30 fps
Video streaming: Yes
Privacy masking: Yes

Audio

Audio system full duplex: Yes
Built-in microphone: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, SIP, LLDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Flash memory: 512 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB port: Yes

Security

Security algorithms: EAP-TLS, TLS
HTTPS encryption: Yes

Power

Power source type: PoE
Power consumption (typical): 5.4 W
Power consumption (max): 12.95 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 93 mm
Depth: 60 mm
Height: 105 mm
Weight: 153 g

Packaging content

Number of cameras: 1
