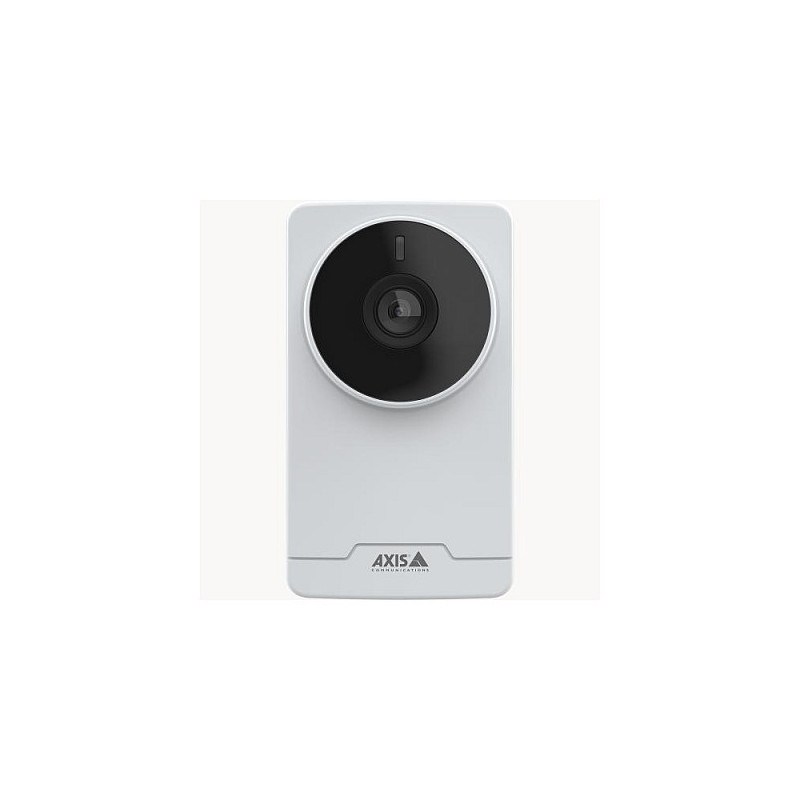

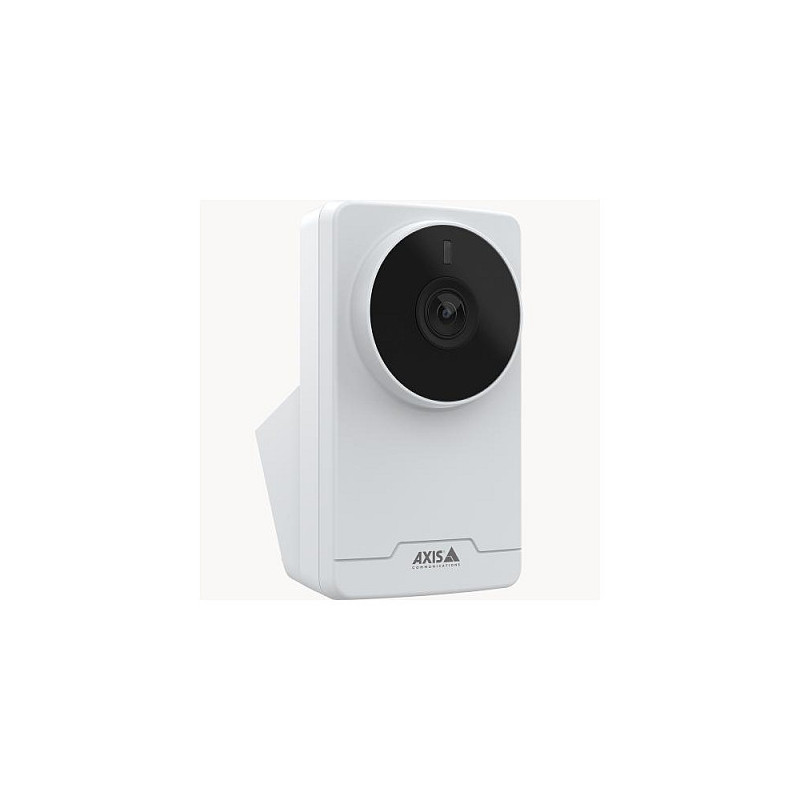

Axis 02349-001 security camera

Axis 02349-001. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 3.16 mm
Offering an IR-corrected lens, this compact, easy-to-install camera delivers professional-quality video both day-and-night. It features a tally LED to indicate video streaming or recording. And AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. A deep learning processing unit enables advanced features and powerful analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Design

Form factor: Box
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Yes
Housing material: Aluminium, Plastic

Camera

Minimum illumination: 0.03 lx
Lens viewing angle, horizontal: 103°
Lens viewing angle, vertical: 55°
Camera shutter speed: 1/19000 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Sensor type: CMOS

Lens system

Number of lenses: 1
Fixed focal length: 3.16 mm

Night vision

Night vision: Yes

Video

Maximum resolution: 1920 x 1080 pixels
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG
Supported graphics resolutions: 320 x 240, 640 x 360, 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Frame rate: 30 fps
Video intelligence analytic: Yes
Video streaming: Yes
Image quality adjustment: Brightness, Colour depth, Contrast, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Bit rate control: Variable Bit Rate (VBR)

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.1x
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQTT v3.1.1, Syslog, Link-Local-Adresse (ZeroConf)
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash), MicroSDHC
Flash memory: 512 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

IP address filtering: Yes
Security algorithms: EAP-TLS, HTTPS, SNMP

Power

Power source type: PoE
Power consumption (typical): 2.2 W
Power consumption (max): 4.3 W
Power consumption (Power over Ethernet (PoE)): 4.3 W
DC output voltage: 12
DC output current: 2.5 A

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 60 mm
Depth: 93 mm
Height: 105 mm
Weight: 137 g

Packaging content

Number of cameras: 1
