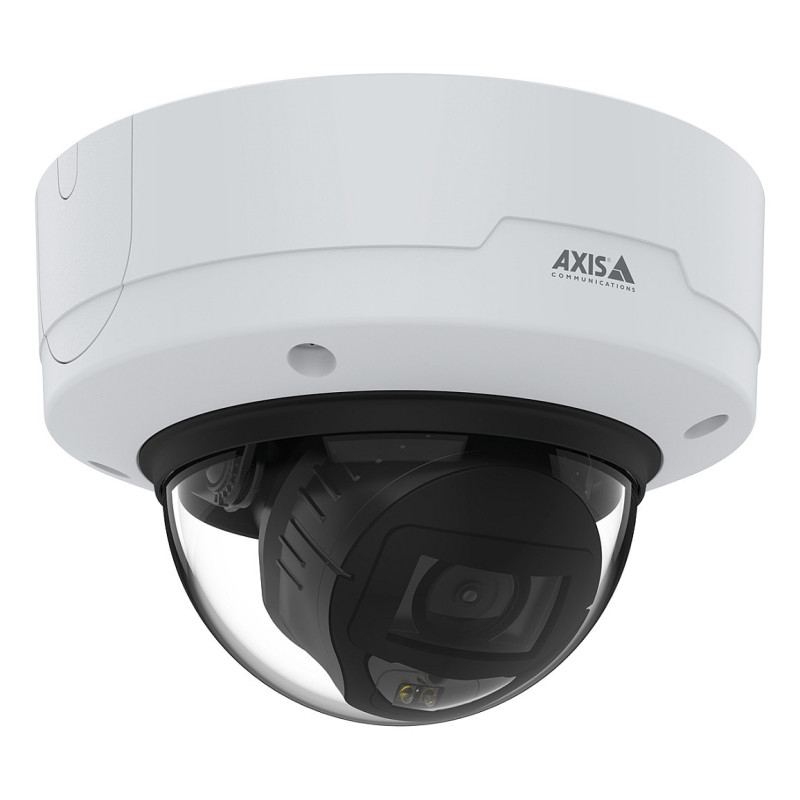

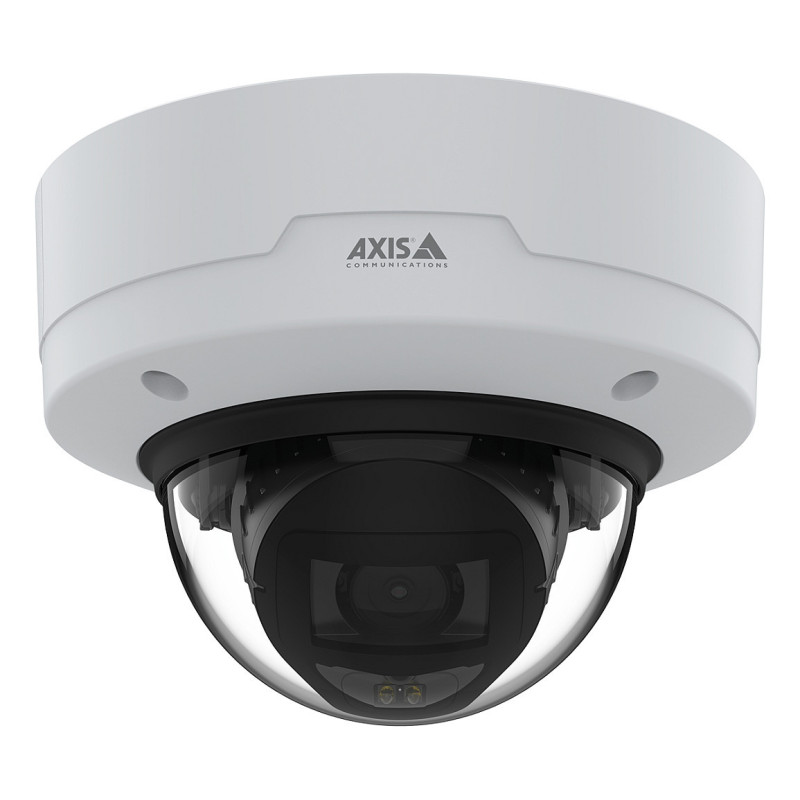

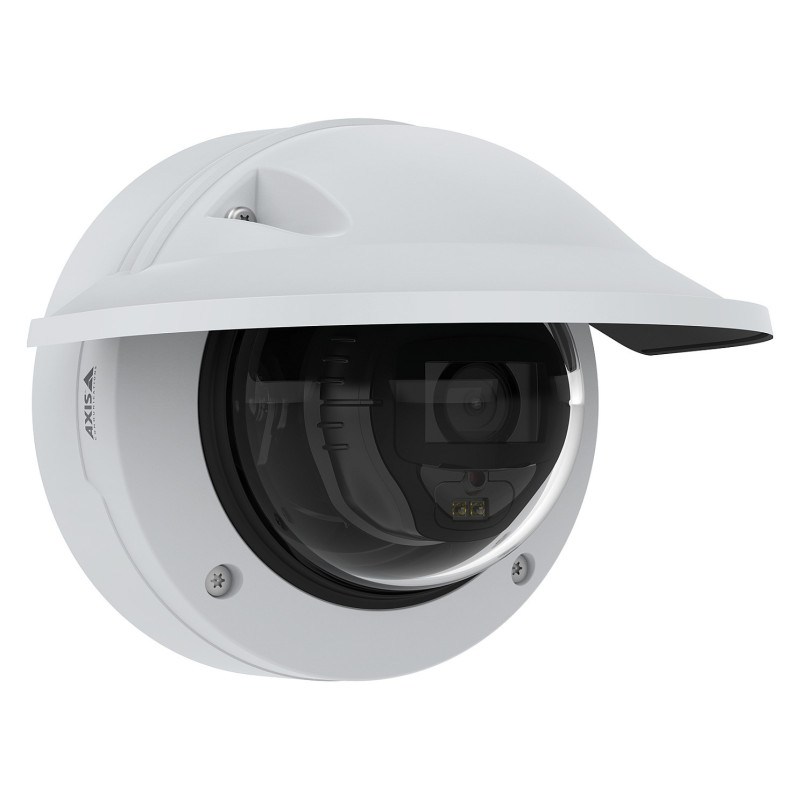

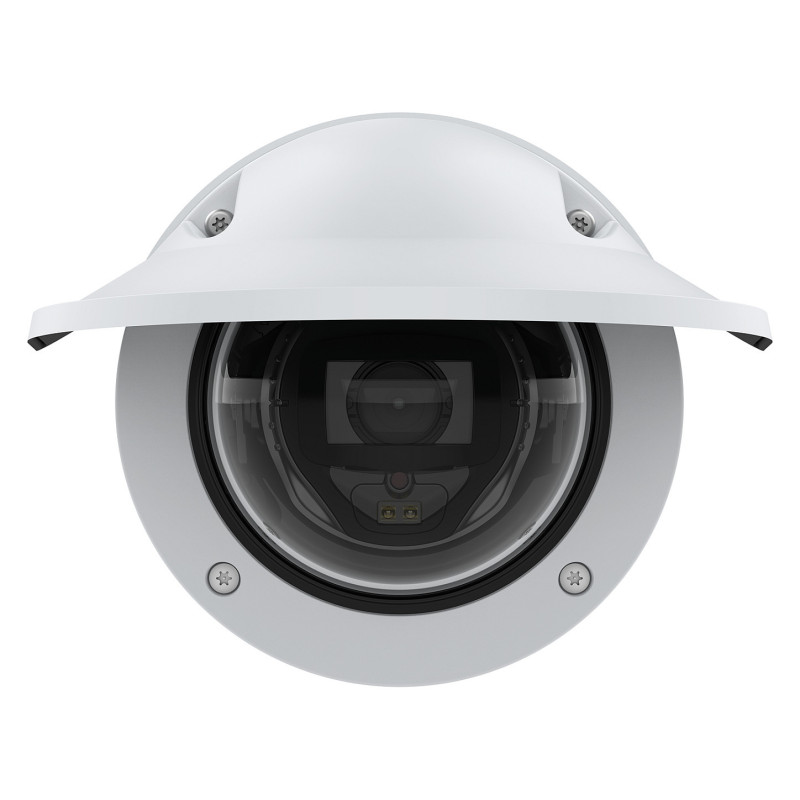

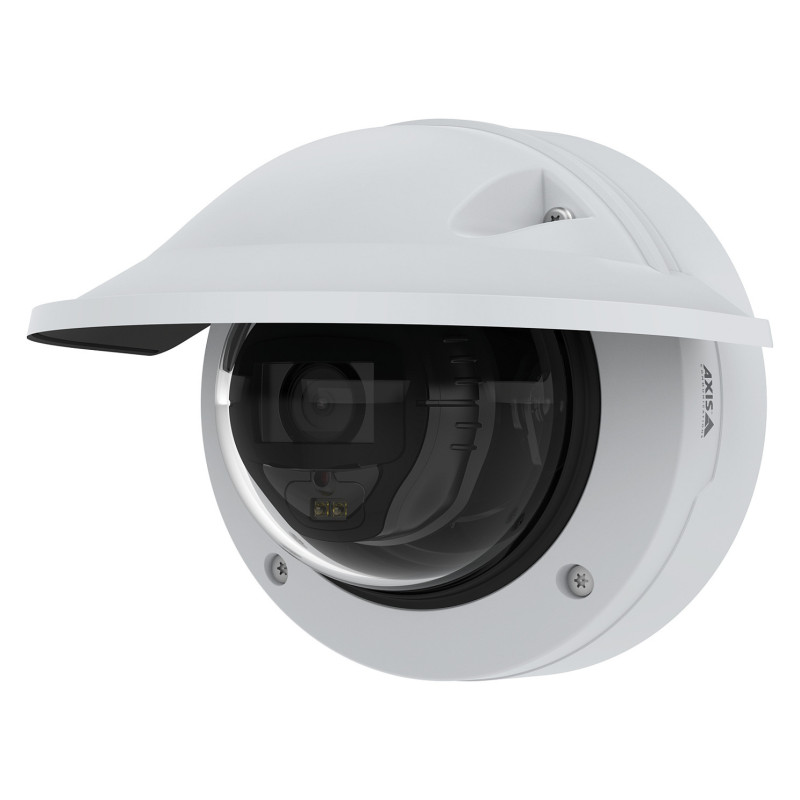

Axis 02332-001 security camera

Axis 02332-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.14 lx, Angle of rotation: 190°, Tilt angle range: -10 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 4.3-8.6, Normal focusing range: 0.5 m
Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P3268-LVE delivers excellent image quality under any light conditions. Based on the latest Axis system-on-chip (SoC), it includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate equipment and extend the value of your system. Furthermore, this robust, IK10-rated, outdoor-ready camera includes built-in cybersecurity to help prevent unauthorized access and safeguard your system.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ modes: Digital PTZ
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification: EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2,EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A,VCCI Class A

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.14 lx
Angle of rotation: 190°
Tilt angle range: -10 - 80°
Pan range: -190 - 190°
Camera shutter speed: 1/8500 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Number of lenses: 1
Focal length range: 4.3-8.6
Normal focusing range: 0.5 m

Night vision

Night vision: Yes
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.265
Video recording: Yes
Frame rate: 30 fps
Video streaming: Yes
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Flip mirror: Yes
Privacy masking: Yes
Text caption overlay: Yes
Bit rate control: Variable Bit Rate (VBR)
Smart IR: Yes

Audio

Audio detection: Yes

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 8192 MB
Internal memory: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Terminal block port: Yes

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Alert notification type: E-mail

Power

Power source type: PoE
Power consumption (typical): 5.5 W
Power consumption (max): 11.2 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Height: 107 mm
Diameter: 14.9 cm
Weight: 900 g

Packaging content

Number of cameras: 1
Drilling template included: Yes
Manual: Yes
