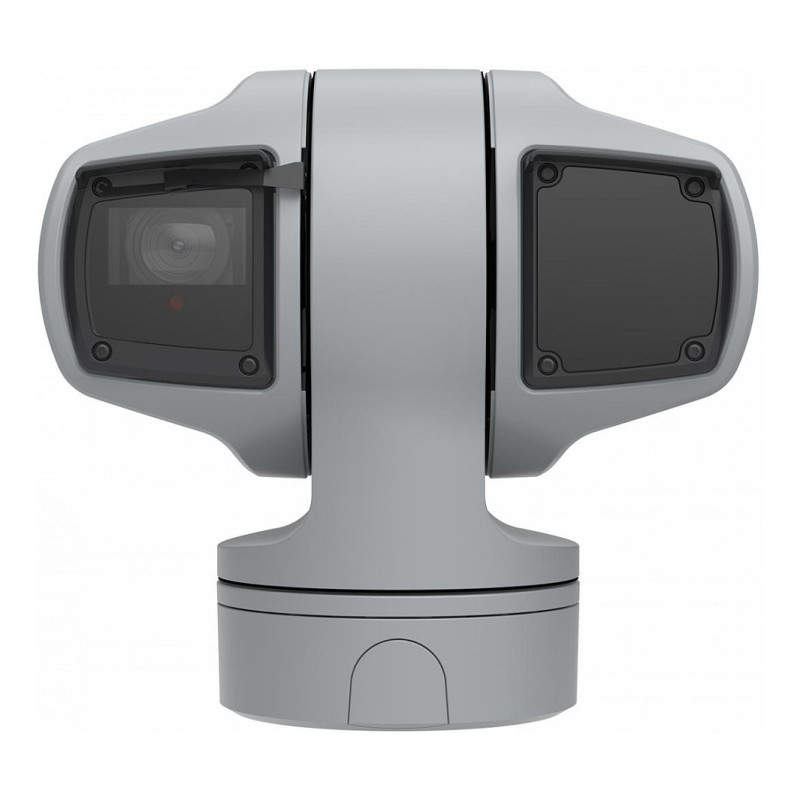

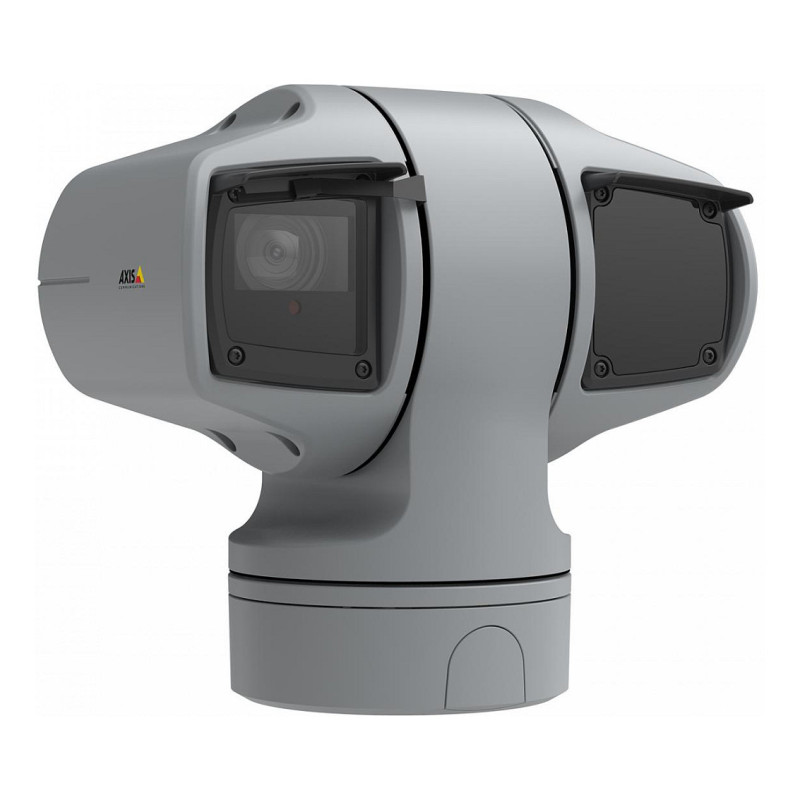

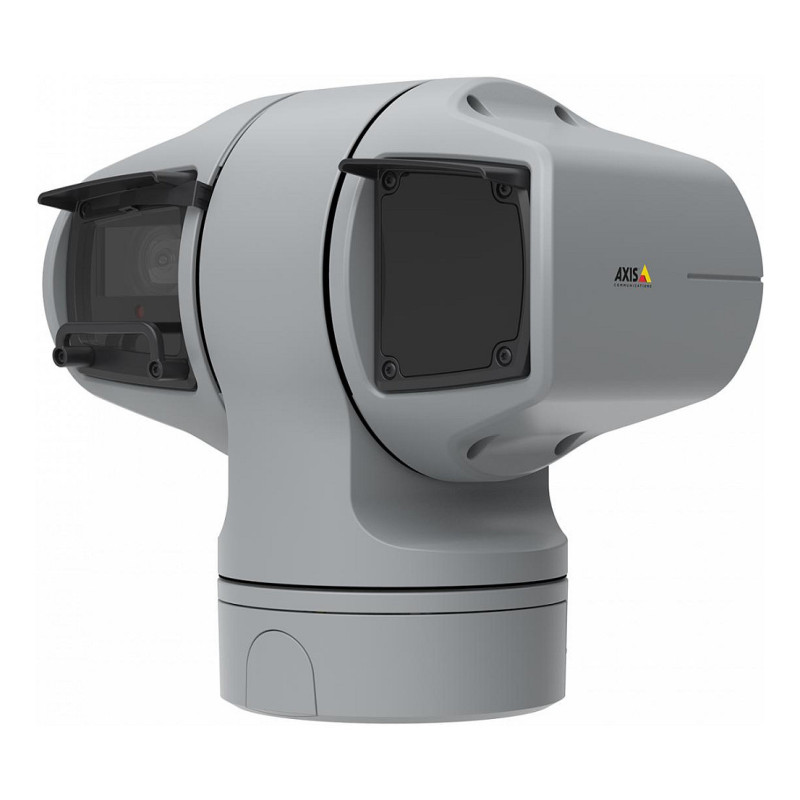

Axis 02316-003 security camera

Axis 02316-003. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Grey, Form factor: Box. Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 63.8°, Lens viewing angle, vertical: 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. It offers HDTV 1080p resolution and a 1/2" sensor with 31x optical zoom. Featuring Lightfinder, Forensic WDR, and OptimizedIR it ensures sharp, clear images in any light conditions. This vandal-resistant, IK10-rated camera is resistant to both impacts and harsh weather conditions including wind speed up to 245 km/h (150 mph). It comes with built-in analytics preinstalled to alert you when needed. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
Auto-tracking: Yes
Tour recording: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Processor model: ARTPEC-7
Built-in processor: Yes
Number of languages: 18
Languages support: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Certification: EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835

Design

Form factor: Box
Mounting type: Wall
Product colour: Grey
Housing material: Aluminium
International Protection (IP) code: IP66, IP68
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.05 lx
Lens viewing angle, horizontal: 63.8°
Lens viewing angle, vertical: 37°
Tilt angle range: -90 - 90°
Tilt speed: 150 °/sec
Pan speed: 150 °/sec
Camera shutter speed: 1/111000 - 1/2 s

Image sensor

Optical sensor size: 25.4 / 2 mm (1 / 2")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 31x
Digital zoom: 12x
Focal length range: 6.91 - 214.64 mm
Auto focus: Yes
Maximum aperture number: 4.6
Minimum aperture number: 1.36

Night vision

Night vision: Yes
Night vision distance: 400 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Video compression formats: H.264, H.265, M-JPEG
Video recording: Yes
Frame rate: 50 fps
Video streaming: Yes
Privacy masking: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3bt
Supported network protocols: IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, NTCIP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Pixel counter: Yes
Digest authentication: Yes
Network access storage (NAS): Yes

Power

Power source type: PoE
AC input voltage: 100 - 240 V
Power consumption (typical): 25 W
Power consumption (max): 71 W

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%

Weight dimensions

Width: 313 mm
Depth: 210 mm
Height: 330 mm
Weight: 8.7 kg

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Manual: Yes
Packaging content: Windows decoder 1-user license, IK10 bumper, High PoE Midspan 1-port
