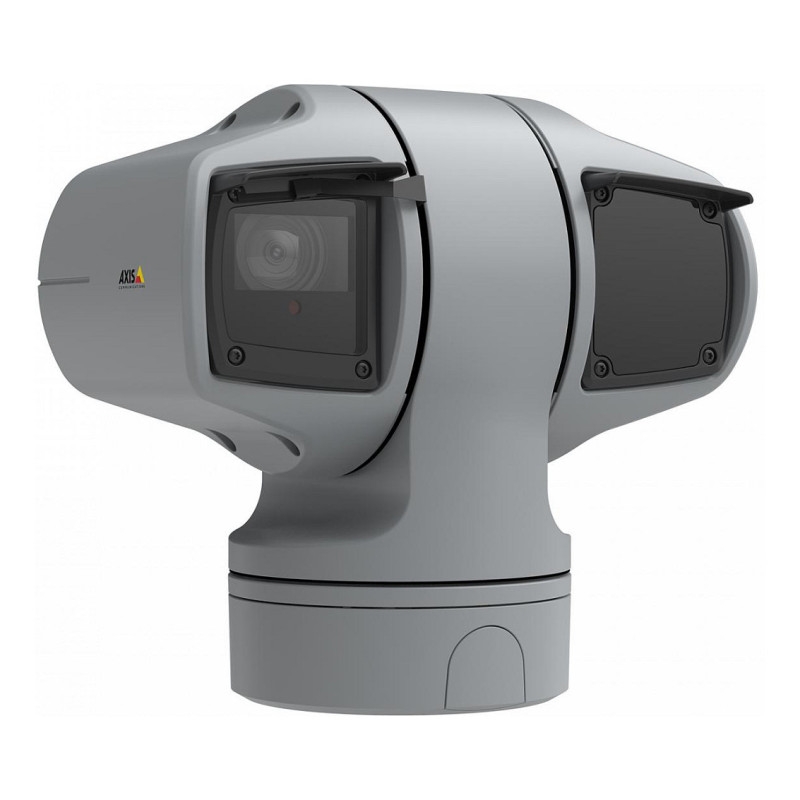

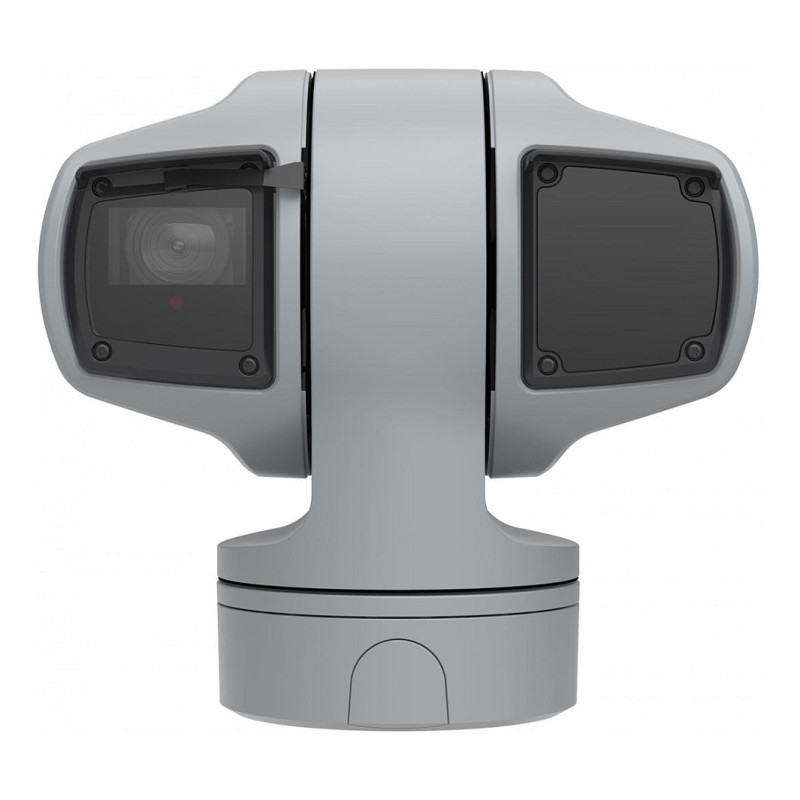

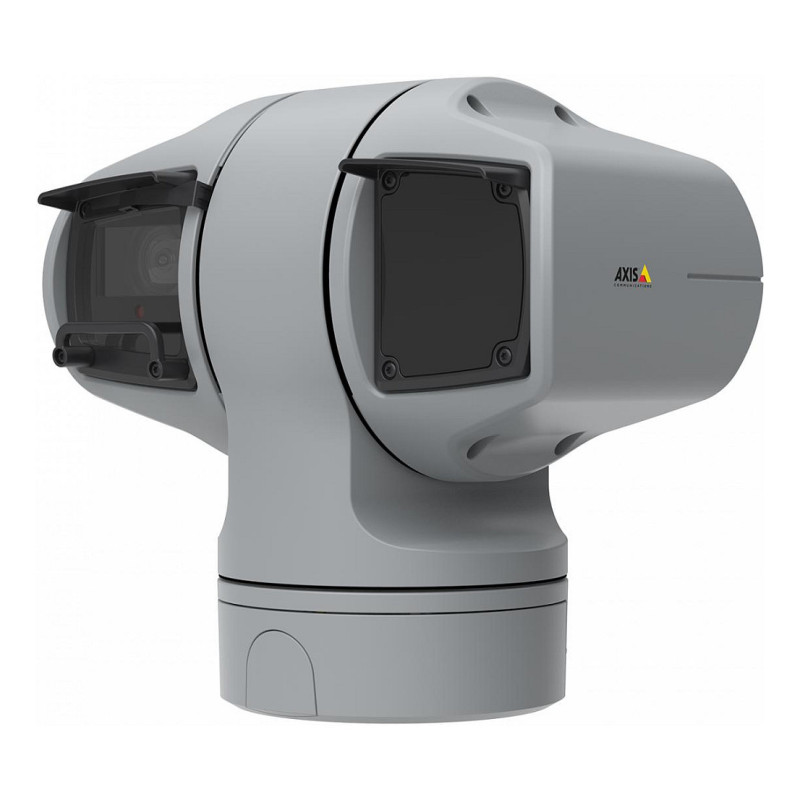

Axis 02316-002 security camera

Axis 02316-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Grey, Form factor: Box. Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 63.8°, Lens viewing angle, vertical: 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm

This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. It offers HDTV 1080p resolution and a 1/2" sensor with 31x optical zoom. Featuring Lightfinder, Forensic WDR, and OptimizedIR it ensures sharp, clear images in any light conditions. This vandal-resistant, IK10-rated camera is resistant to both impacts and harsh weather conditions including wind speed up to 245 km/h (150 mph). It comes with built-in analytics preinstalled to alert you when needed. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Auto-tracking
Feature: Tour recording
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Processor model: ARTPEC-7
Feature: Built-in processor
Number of languages: 18

Design

Form factor: Box
Mounting type: Wall
Product colour: Grey
Housing material: Aluminium
International Protection (IP) code: IP66, IP68
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.05 lx
Lens viewing angle, horizontal: 63.8°
Lens viewing angle, vertical: 37°
Tilt angle range: -90 - 90°
Tilt speed: 150 °/sec
Pan speed: 150 °/sec
Camera shutter speed: 1/111000 - 1/2 s

Image sensor

Optical sensor size: 25.4 / 2 mm (1 / 2")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 31x
Digital zoom: 12x
Focal length range: 6.91 - 214.64 mm
Feature: Auto focus
Maximum aperture number: 4.6
Minimum aperture number: 1.36

Night vision

Feature: Night vision
Night vision distance: 400 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Video compression formats: H.264, H.265, M-JPEG
Feature: Video recording
Frame rate: 50 fps
Feature: Video streaming
Feature: Privacy masking

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3bt
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Feature: Pixel counter
Feature: Digest authentication
Feature: Network access storage (NAS)

Power

Power source type: PoE
AC input voltage: 100 - 240 V
Power consumption (typical): 25 W
Power consumption (max): 71 W

Operational conditions

Operating temperature (T-T): -50 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%

Weight & dimensions

Width: 313 mm
Depth: 210 mm
Height: 330 mm
Weight: 8.7 kg

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Feature: Manual
Packaging content: Windows decoder 1-user license, IK10 bumper, High PoE Midspan 1-port
