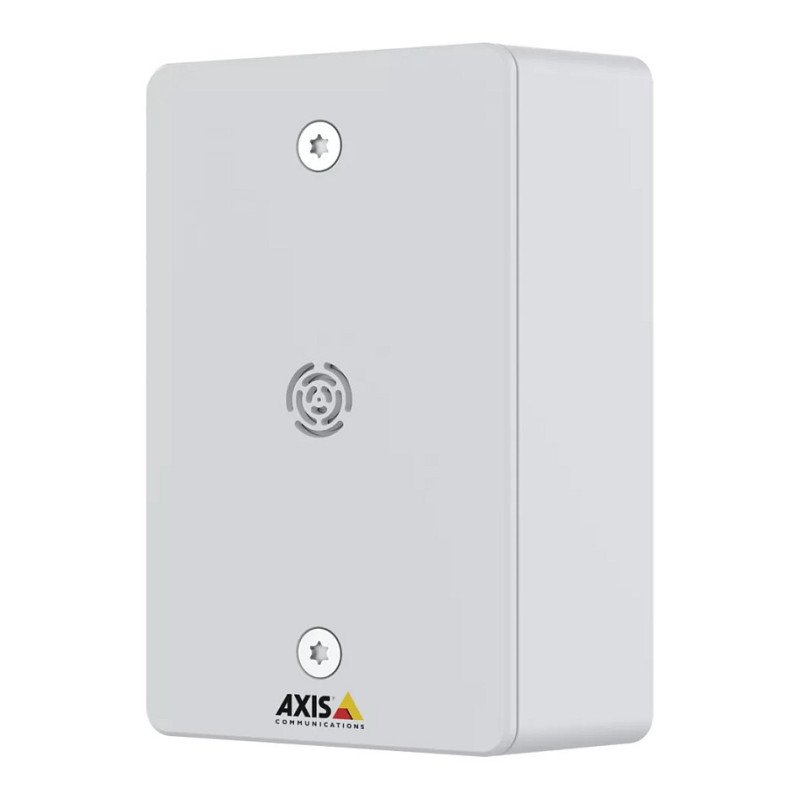

Axis 02269-001 microphone

Axis 02269-001. Microphone sensitivity: -32.1 dB, Microphone frequency: 20 - 20000 Hz, Microphone Signal-to-Noise Ratio (SNR): 71.4 dB. Connectivity technology: Wired, Device interface: 3.5 mm (1/8"). Product colour: White, Housing material: Aluminium, Certification: 55035, FCC Part 15 Subpart B Class B, IEC/EN 62368-1, IEC/EN 60529 IP66, IEC/EN 62262 IK10. Input voltage: 2-10 V. Doesn't contain: PVC
AXIS TU1001-VE Microphone is a robust outdoor-ready microphone. It's vandal-proof and IK66-rated. The microphone needs to be connected to a network device with support for audio-in 3.5mm jack, such as a camera, an audio module or an audio bridge. AXIS TU1001-VE can be wall or ceiling mounted and it's possible to attach conduits using an AXIS ACI Conduit Adapter.

Microphone

Microphone sensitivity: -32.1 dB
Microphone frequency: 20 - 20000 Hz
Microphone Signal-to-Noise Ratio (SNR): 71.4 dB

Ports interfaces

Connectivity technology: Wired
Device interface: 3.5 mm (1/8")

Performance

Product colour: White
Housing material: Aluminium
Certification: 55035, FCC Part 15 Subpart B Class B, IEC/EN 62368-1, IEC/EN 60529 IP66, IEC/EN 62262 IK10

Power

Input voltage: 2-10 V

Sustainability

Doesn't contain: PVC

Weight dimensions

Width: 75 mm
Depth: 51 mm
Height: 119 mm
Microphone weight: 409 g

Logistics data

Harmonized System (HS) code: 85181000

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 100%
