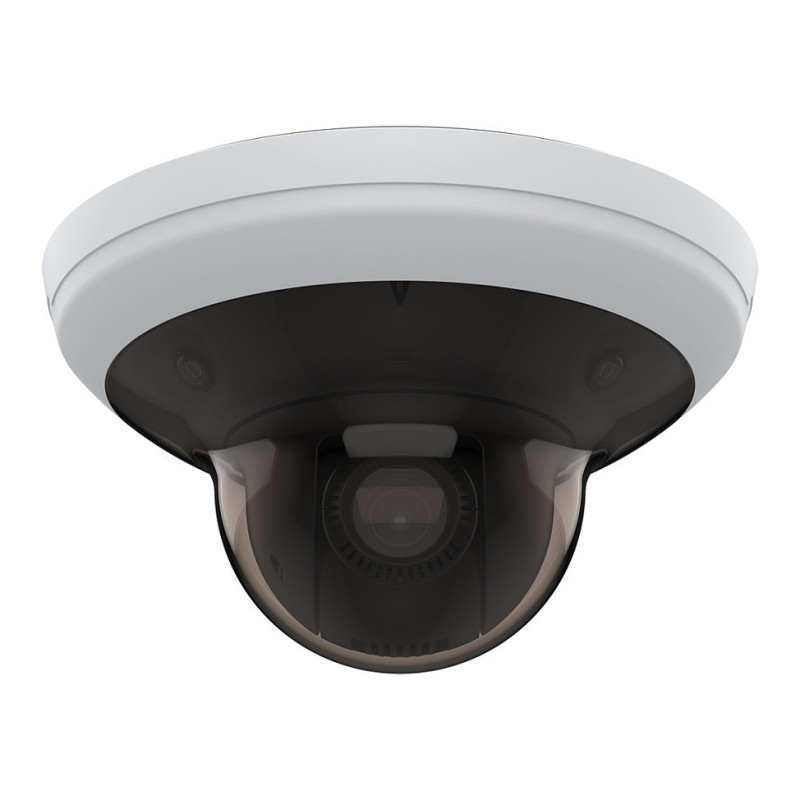

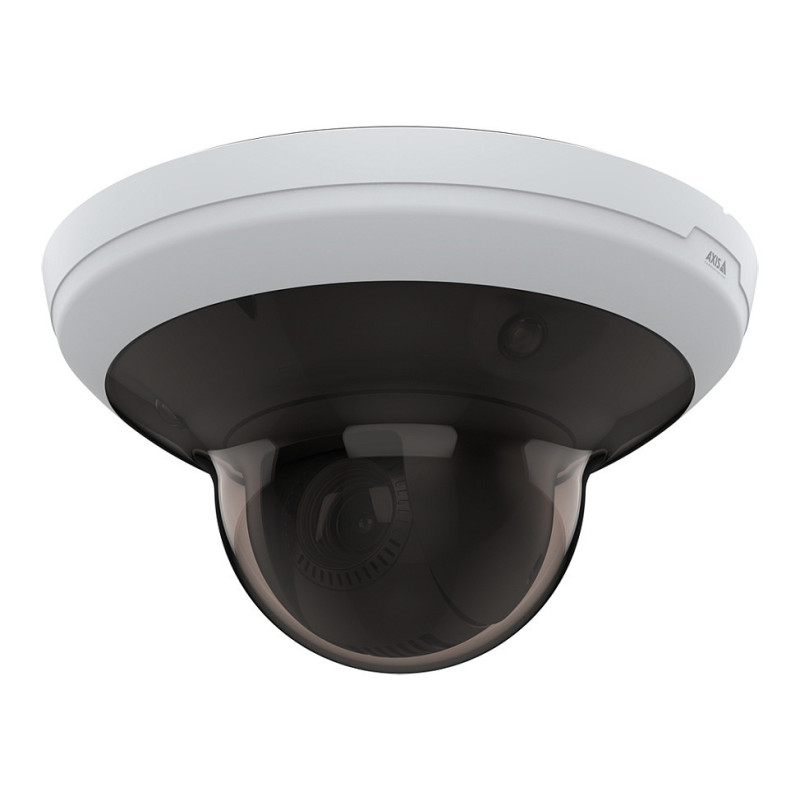

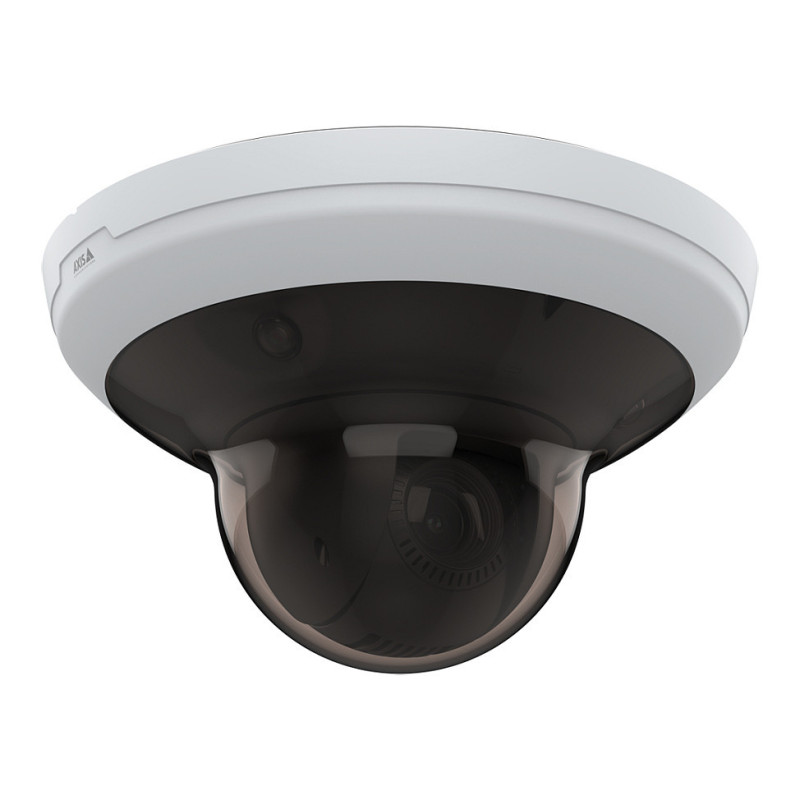

Axis 02187-002 security camera

Axis 02187-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Tilt angle range: 0 - 180°, Pan range: 0 - 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range (panoramic camera): 4.7 - 47 mm, Viewing angle, vertical (panoramic camera): 36.3°, Viewing angle, horizontal (panoramic camera): 61.8°

AXIS M5000-G PTZ Camera features three 5 MP sensors and one PTZ camera with 10x optical zoom for total situational awareness of indoor areas up to 400 m2 (4300 ft2). With everything displayed on one monitor, you can move from overview to detailed views in a single click. It offers wireless I/O connectivity with Z-Wave Plus® devices to communicate with up to six devices in a system setup for instance monitor temperatures in freezers or turn lights on/off. With AXIS M5000-G, you get the benefits of four cameras while installing just one camera.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired & Wireless
Feature: PTZ control
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,VCCI Class A, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A)

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
International Protection (IP) code: IP51

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.1 lx
Tilt angle range: 0 - 180°
Pan range: 0 - 360°
Camera shutter speed: 1/66500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Panoramic camera

Focal length range (panoramic camera): 4.7 - 47 mm
Viewing angle, vertical (panoramic camera): 36.3°
Viewing angle, horizontal (panoramic camera): 61.8°

Lens system

Feature: Zoom capability
Optical zoom: 10x
Digital zoom: 12x
Number of lenses: 3

Night vision

Feature: Night vision

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 5 MP
Video formats supported: H.264, H.265, M-JPEG
Frame rate: 30 fps
Feature: Video streaming
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Bit rate control: Variable Bit Rate (VBR)

Audio

Feature: Audio detection

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Compatible memory cards: SD, SDHC, SDXC
Flash memory: 512 MB
Internal memory: 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port

Security

Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Security algorithms: 802.1x RADIUS
Feature: HTTPS encryption
Alert notification type: E-mail
Feature: Pixel counter
Feature: Digest authentication

Power

Power source type: PoE
Power consumption (typical): 7.6 W
Power consumption (max): 13.4 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 10 - 85 °C
Operating relative humidity (H-H): -40 - 65%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 138 mm
Diameter: 24.7 cm
Weight: 1.95 kg

Packaging content

Number of cameras: 1
Feature: Drilling template included
Feature: Manual
