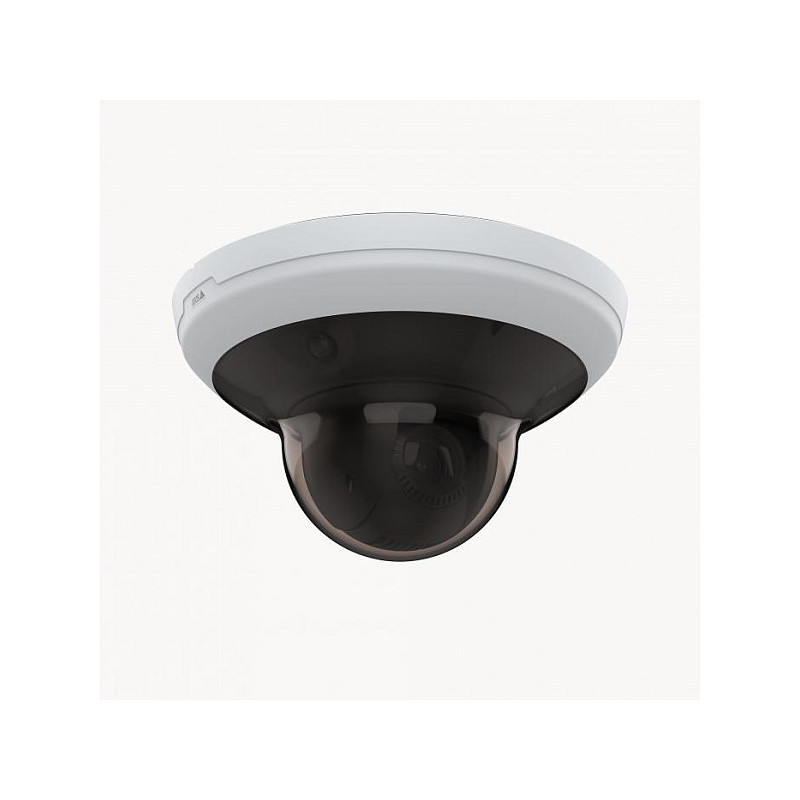

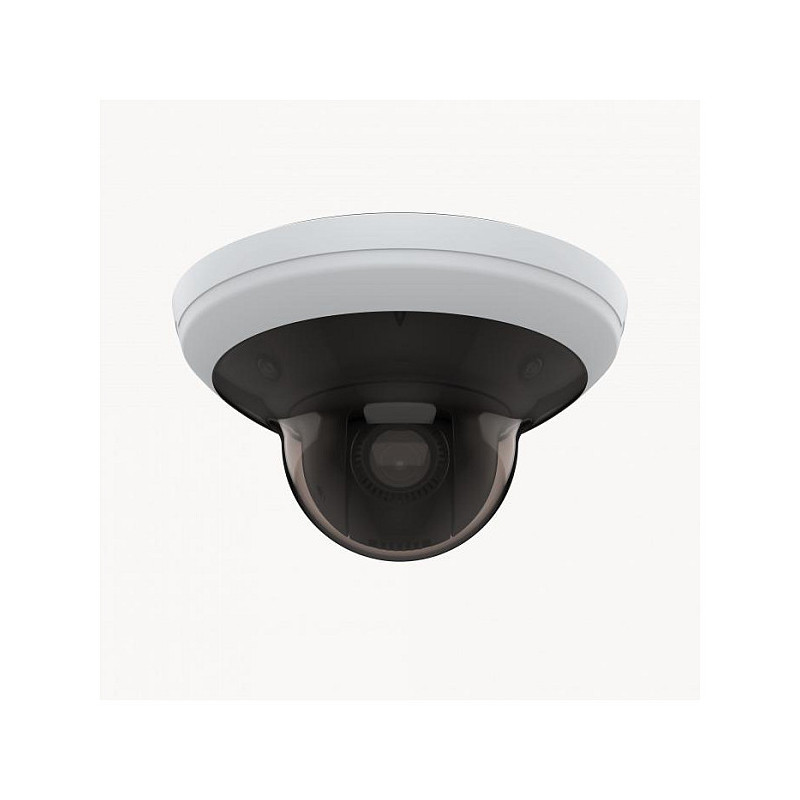

Axis 02187-001 security camera

Axis 02187-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Bulb. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 61.8°, Lens viewing angle, vertical: 36.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 10x, Digital zoom: 12x, Focal length range: 4.7 - 47 mm

AXIS M5000 PTZ features three 5 MP sensors and one PTZ camera with 10x optical zoom for total situational awareness of indoor areas up to 400 m2 (4300 ft2). With everything displayed on one monitor, you can move from overview to detailed views in a single click. It features autofocus capabilities and day/night functionality. This cost-effective camera offers the benefits of four cameras while installing just one camera. Furthermore, edge storage lets you record directly to an onboard memory card.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Bulb
Mounting type: Ceiling
Product colour: Black, White
International Protection (IP) code: IP51

Camera

Feature: Camera tilt control
Minimum illumination: 0.01 lx
Lens viewing angle, horizontal: 61.8°
Lens viewing angle, vertical: 36.3°
Tilt angle range: 0 - 180°
Pan range: 0 - 360°

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 10x
Digital zoom: 12x
Focal length range: 4.7 - 47 mm
Maximum aperture number: 3
Minimum aperture number: 1.6

Night vision

Feature: Night vision

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 15 MP
Video formats supported: H.264, H.265
Video compression formats: H.264, H.265

Audio

Audio system: 2-way
Feature: Audio detection

Network

Networking standards: IEEE 802.1x

Security

Feature: Video motion detection
Feature: HTTPS encryption

Power

Power source type: DC, PoE
Power consumption (typical): 6.5 W
Power consumption (max): 13 W
Power consumption (Power over Ethernet (PoE)): 7.4 W
DC output voltage: 24, 28

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
