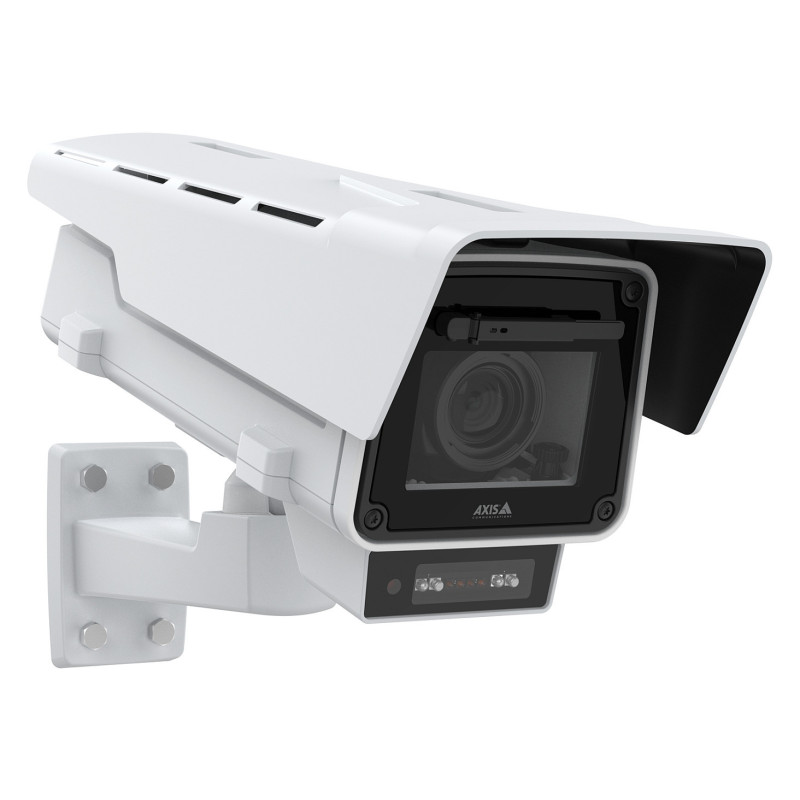

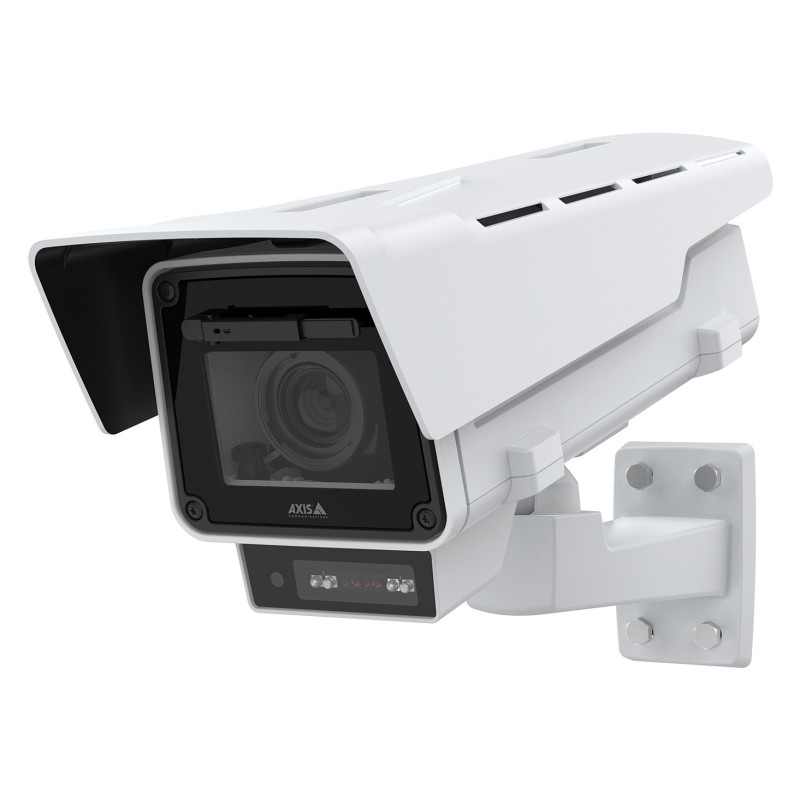

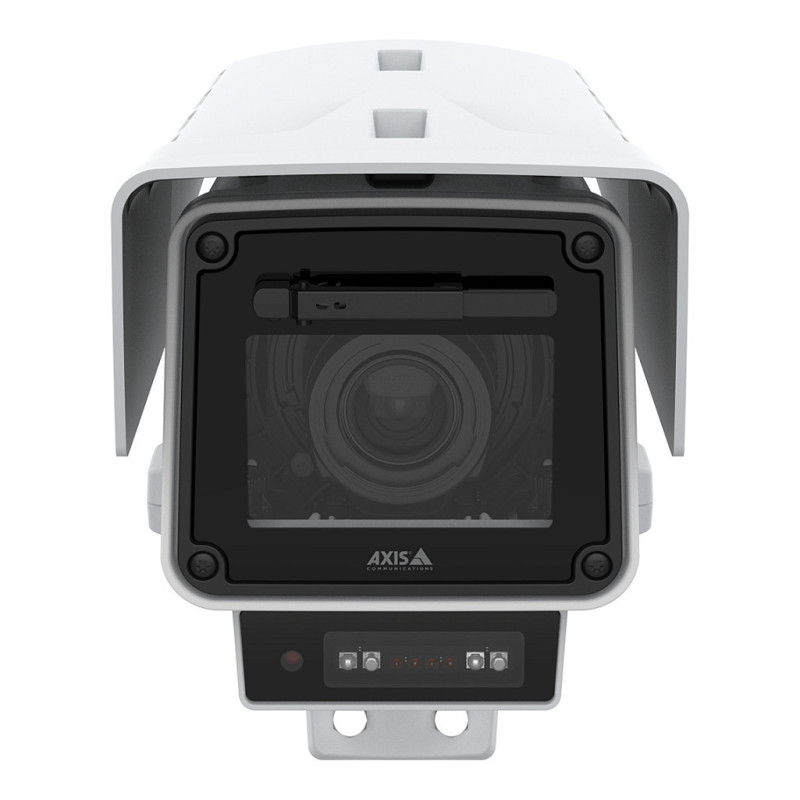

Axis 02168-001 security camera

Axis 02168-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.05 lx, Camera shutter speed: 1/47500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.5x, Focal length range: 3.9 - 10 mm, Normal focusing range: 0.5 m
With 4 MP resolution at up to 60 fps, a 1/1.8" sensor, and Lightfinder 2.0, AXIS Q1656-LE delivers exceptional video quality even in poor light conditions. Plus, a built-in wiper ensures great images in all weather conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and powerful applications based on deep learning on the edge. And, AXIS Object Analytics offers highly nuanced object classification. This outdoor-ready camera includes premium Q-line functionality and support for PoE and redundant DC power. Furthermore, enhanced security functionality prevents unauthorized access and safeguards your system.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ modes: Digital PTZ
PTZ protocols: Pelco-D
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification: CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), EN 50121-4,IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835,KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Design

Form factor: Box
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Yes
International Protection (IP) code: IP66, IP67
IK code: IK10

Camera

Camera pan control: Yes
Minimum illumination: 0.05 lx
Camera shutter speed: 1/47500 - 1 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 2.5x
Number of lenses: 1
Focal length range: 3.9 - 10 mm
Auto focus: Yes
Normal focusing range: 0.5 m

Night vision

Night vision: Yes
Night vision distance: 50 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265
Video recording: Yes
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Gain control type: Auto
Flip mirror: Yes
Privacy masking: Yes
Text caption overlay: Yes
Bit rate: Configurable bit rate

Audio

Audio system full duplex: Yes
Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio detection: Yes

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Built-in SSD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Flash memory: 8194 MB
Internal memory: 2048 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Terminal block port: Yes

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
Security algorithms: EAP-TLS
HTTPS encryption: Yes
Alert notification type: E-mail, Text alert message

Power

Power source type: PoE
Power consumption (typical): 11.8 W
Power consumption (max): 25.5 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

System requirements

Windows operating systems supported: Yes

Weight dimensions

Width: 404 mm
Depth: 159 mm
Height: 182 mm
Weight: 4.4 kg

Packaging content

Number of cameras: 1

Other features

Doesn't contain: BFR, PVC
