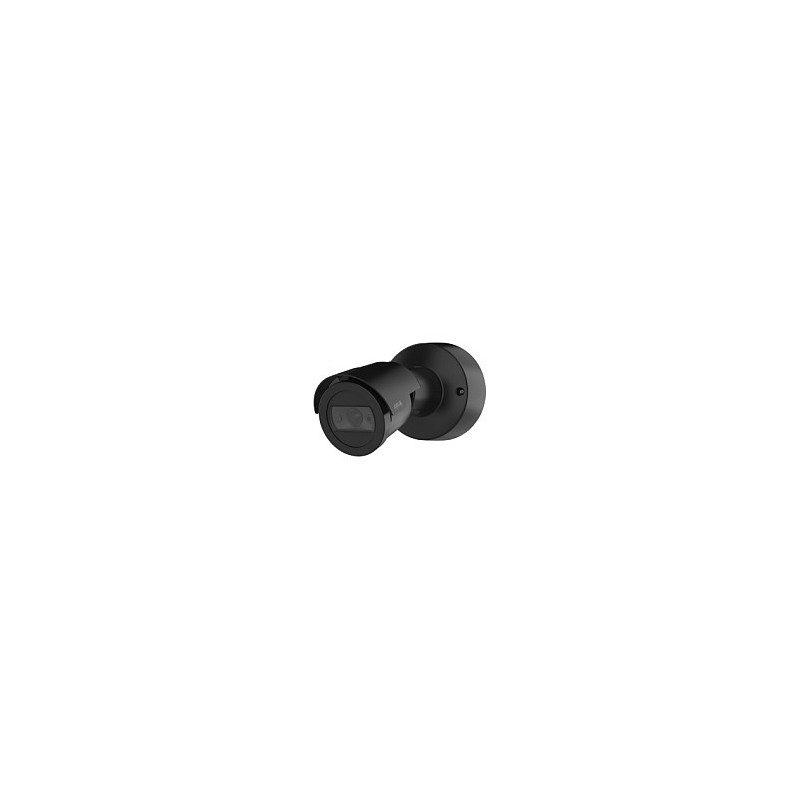

Axis 02134-001 security camera

Axis 02134-001. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 81°, White balance: Auto. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.4 mm, Closest focusing distance: 0.5 m
Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ modes: Digital PTZ
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification: CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35,RCM AS/NZS CISPR 32 Class A, VCCI Class AIEC/EN 62368-1, IEC 62471, IS 13252IEC 60068-2-X, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK08NIST SP500-267

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Black
Housing material: Aluminium, Plastic
International Protection (IP) code: IP66, IP67
IK code: IK08

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 130°
Lens viewing angle, vertical: 81°
White balance: Auto
Camera shutter speed: 1/38500 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Maximum aperture number: 2.1
Fixed focal length: 2.4 mm
Closest focusing distance: 0.5 m

Night vision

Night vision: Yes
Night vision distance: 20 m
LED type: IR
Infra-red wavelength: 855 nm

Video

Maximum resolution: 2304 x 1728 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 2304 x 1728, 2668 x 1512
Supported video modes: 1440p
Video recording: Yes
Frame rate: 30 fps
Video intelligence analytic: Yes
Video streaming: Yes
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Security algorithms: 802.1x RADIUS, EAP-TLS, HTTPS, SSH
HTTPS encryption: Yes
Alert notification type: E-mail

Power

Power source type: PoE
Power consumption (typical): 5 W
Power consumption (max): 12.95 W

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Diameter: 10.1 cm
Length: 170 mm
Weight: 491 g

Packaging content

Number of cameras: 1

Other features

Doesn't contain: BFR, PVC
