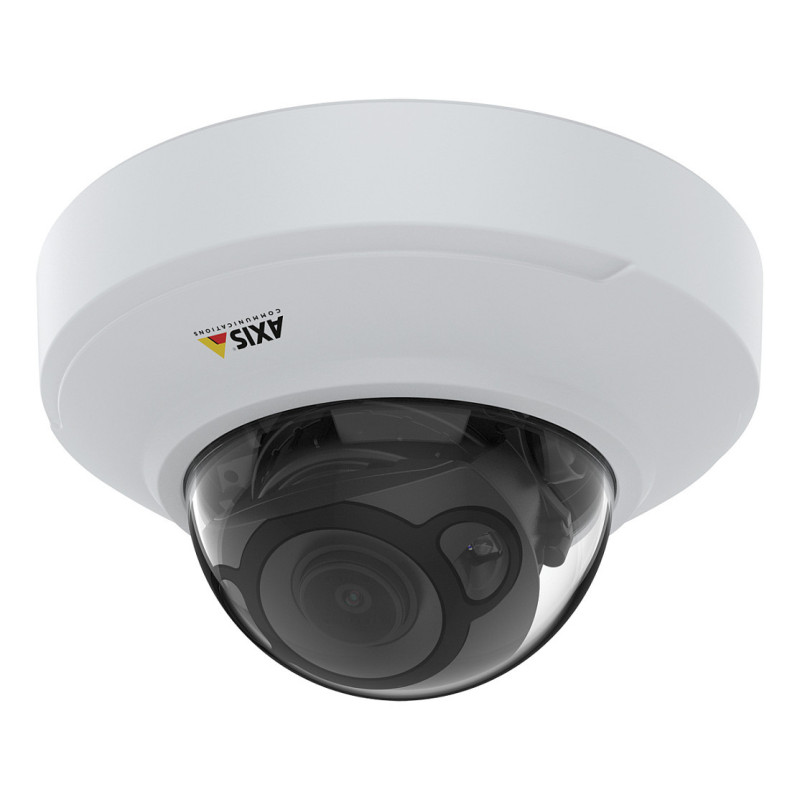

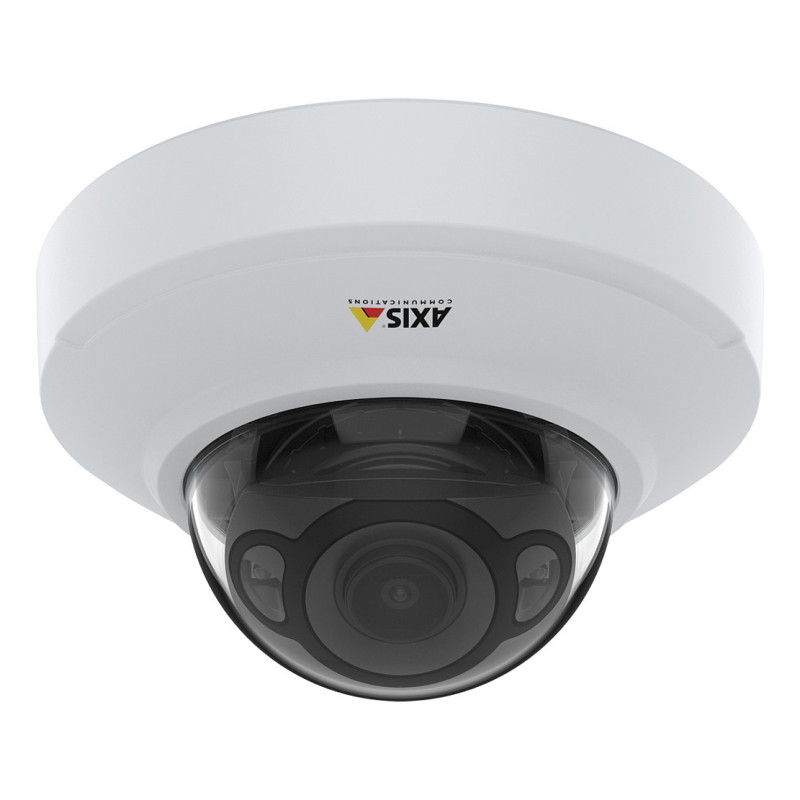

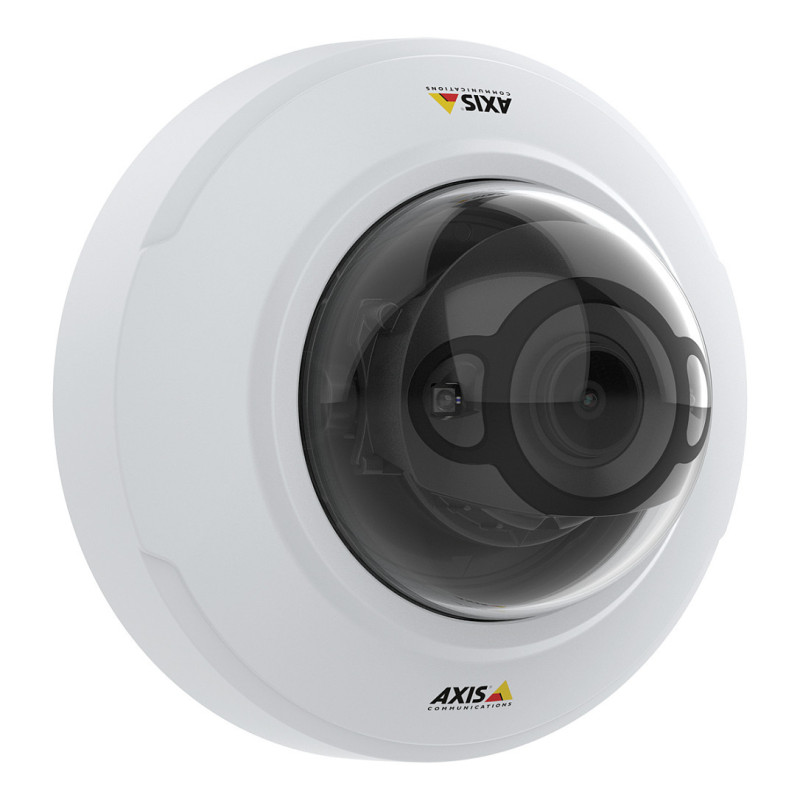

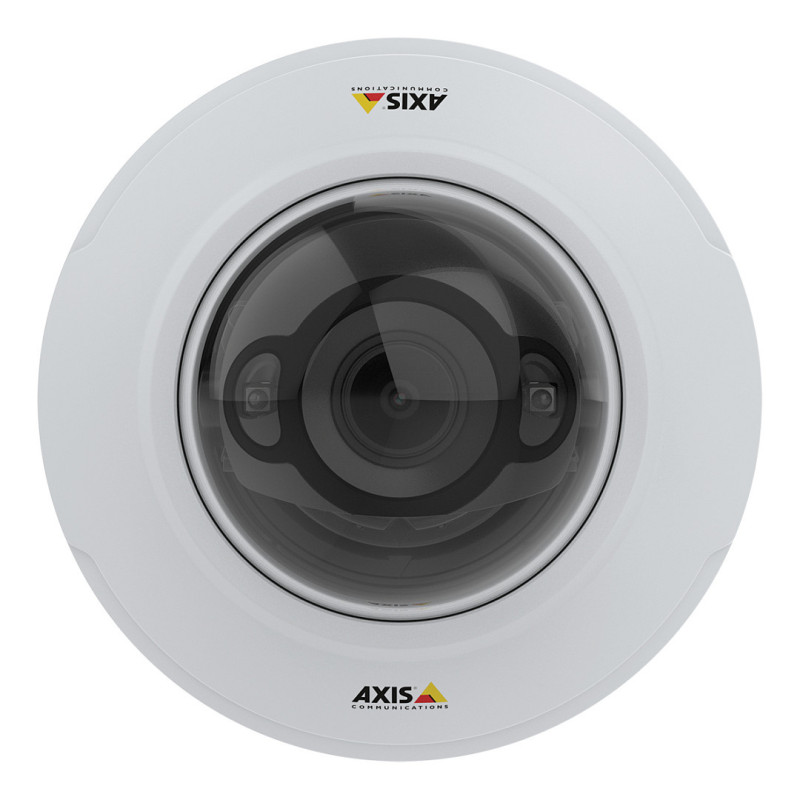

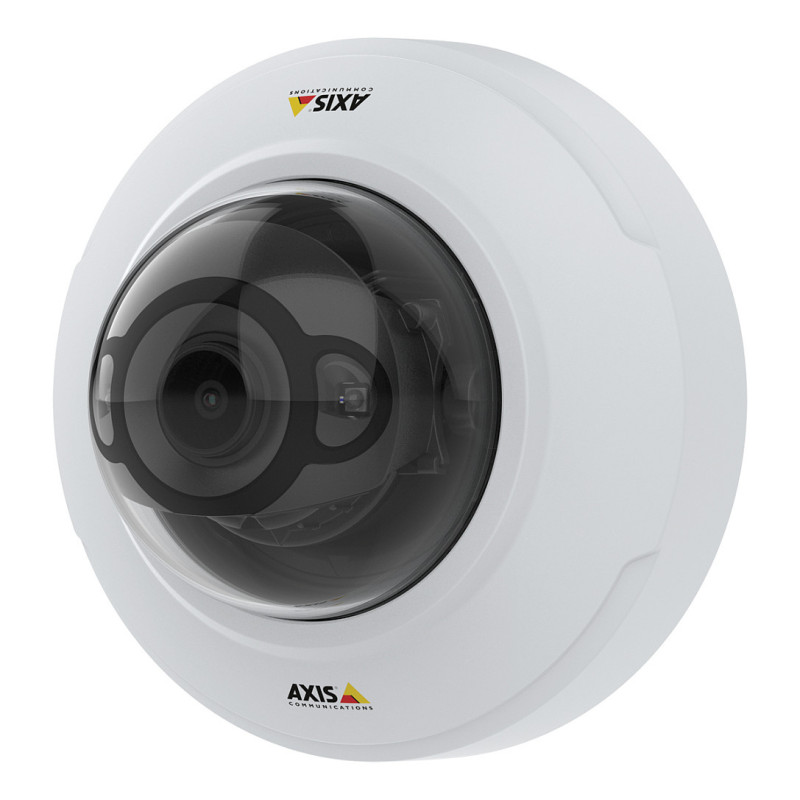

Axis 02113-001 security camera

Axis 02113-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.18 lx, Tilt angle range: -40 - 65°, Pan range: -180 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 3 - 6 mm
The compact and discreet AXIS M4216-LV delivers great images, day and night. With a deep learning processing unit (DLPU), it's possible to take advantage of intelligent applications based on deep learning on the edge. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Designed to blend seamlessly into any environment, the camera can be repainted and offers a wide range of accessories for discreet monitoring. It features an HDMI port and offers the flexibility to add audio and I/O connectivity using accessories.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ modes: Digital PTZ
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 11
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP42
IK code: IK08

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.18 lx
Tilt angle range: -40 - 65°
Pan range: -180 - 180°
Camera shutter speed: 1/37500 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Number of lenses: 1
Focal length range: 3 - 6 mm

Night vision

Night vision: Yes
Night vision distance: 20 m
LED type: IR
Infra-red wavelength: 855 nm

Video

Maximum resolution: 2304 x 1728 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.265
Supported video modes: 720p, 1080p
Frame rate: 30 fps
Video streaming: Yes
Flip mirror: Yes
Privacy masking: Yes
Text caption overlay: Yes

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP, CDP, MQTT v3.1.1
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Built-in SSD: No
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Flash memory: 512 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1

Security

Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Security algorithms: EAP-TLS
HTTPS encryption: Yes
Alert notification type: E-mail, Text alert message

Power

Power source type: PoE
Power consumption (typical): 5 W
Power consumption (max): 9.7 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%

System requirements

Windows operating systems supported: Yes

Weight dimensions

Height: 71 mm
Diameter: 12.1 cm
Weight: 375 g

Packaging content

Number of cameras: 1

Other features

Doesn't contain: BFR, PVC
