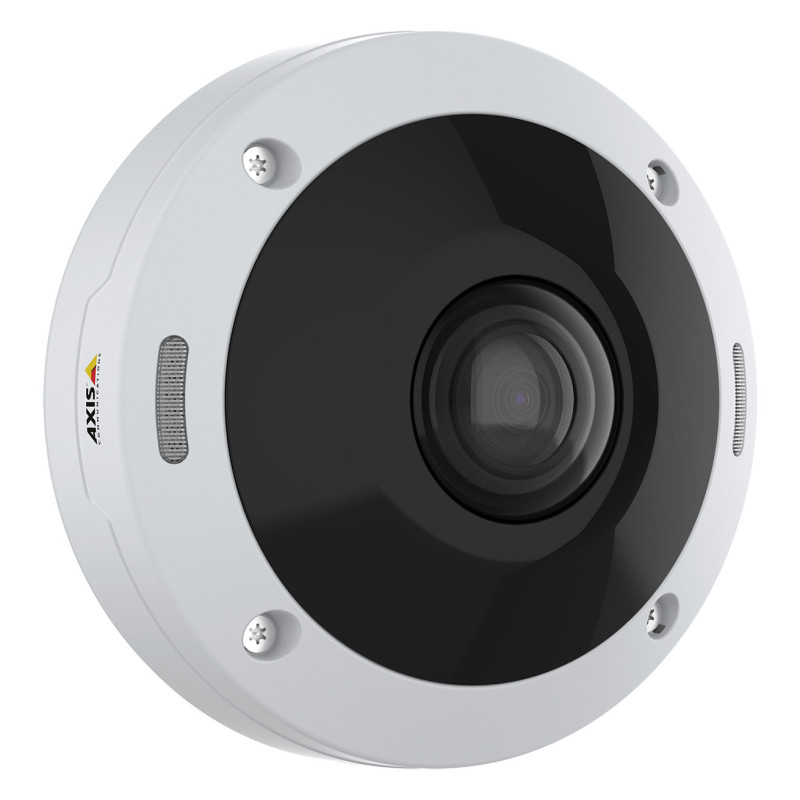

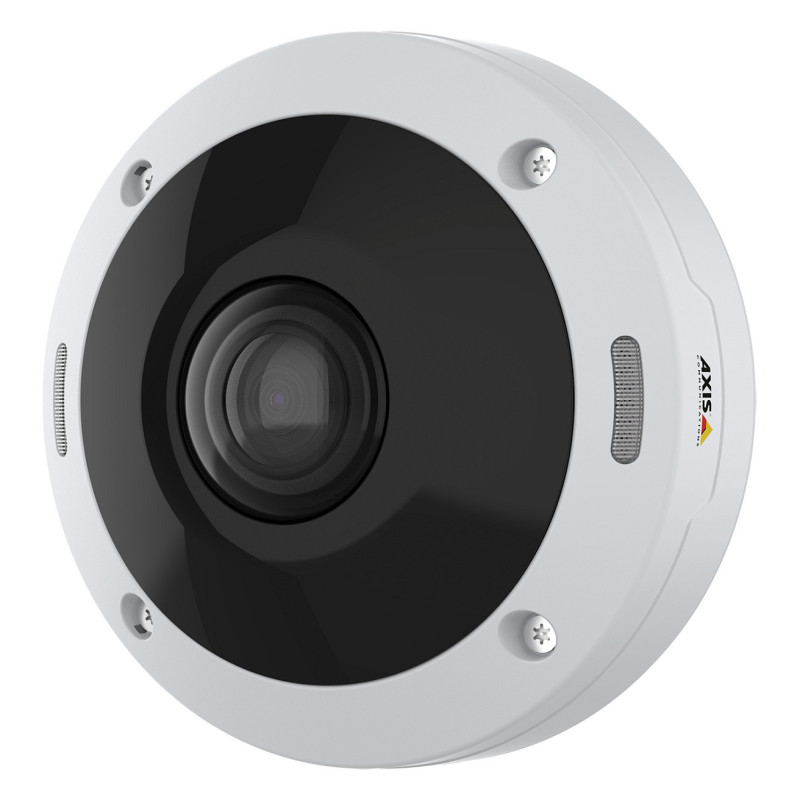

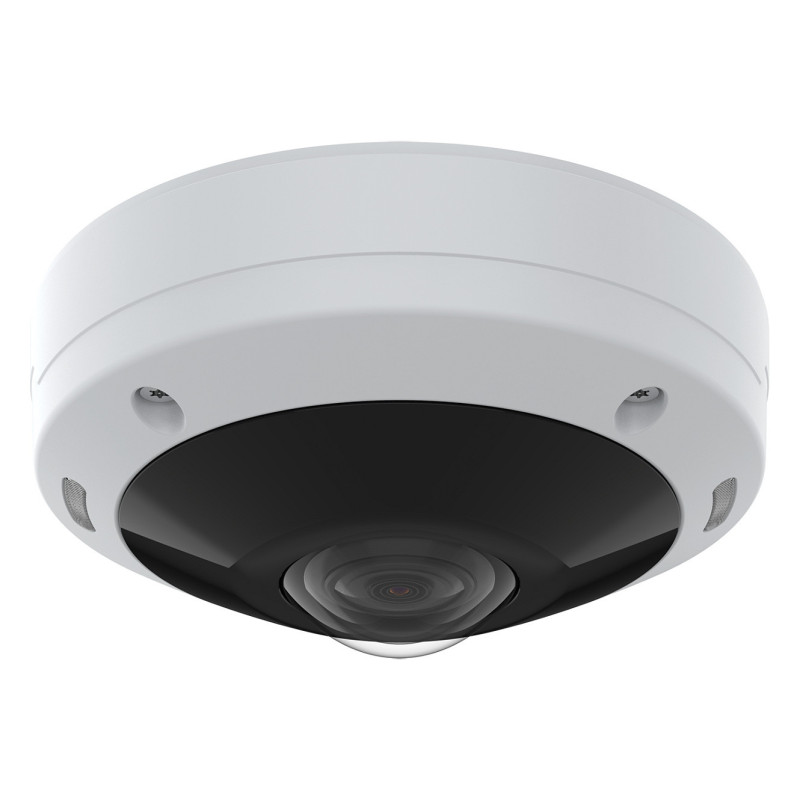

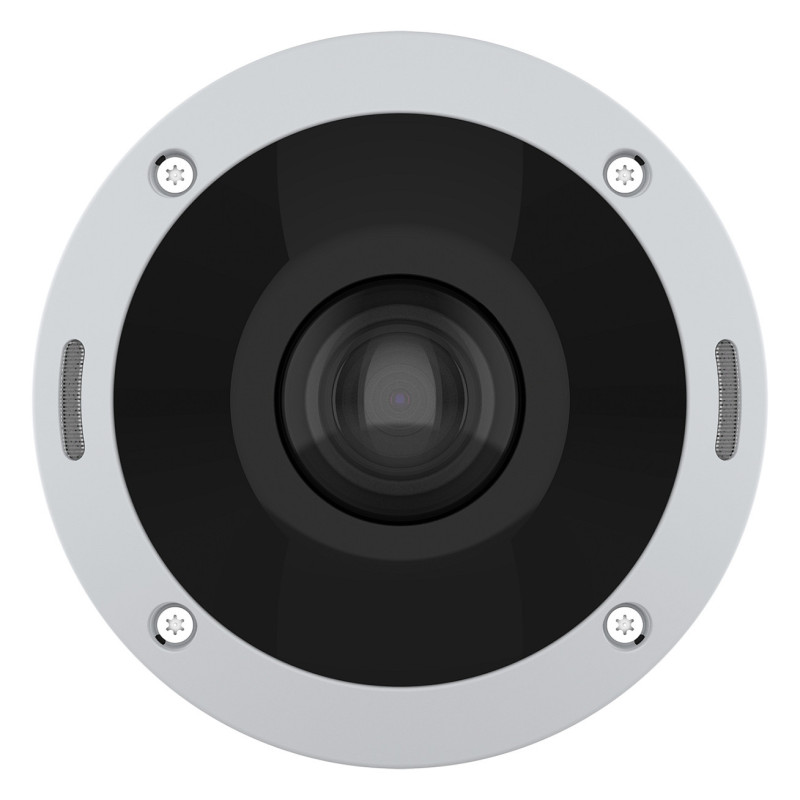

Axis 02100-001 security camera

Axis 02100-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Field of view (FOV) angle: 183°, Lens viewing angle, horizontal: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Focal length range: 1.3 mm

AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ modes: Digital PTZ
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Alarm input/output
Number of languages: 12
Languages support: Simplified Chinese, Traditional Chinese, German, English, French, Italian, Japanese, Korean, Polish, Portuguese, Russian

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Yes
Housing material: Aluminium
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP66
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.04 lx
Field of view (FOV) angle: 183°
Lens viewing angle, horizontal: 183°
Camera shutter speed: 1/22000 - 1 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.7 mm (1 / 1.7")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 1
Focal length range: 1.3 mm
Feature: Fixed focus

Night vision

Feature: Night vision
LED type: IR

Video

Maximum resolution: 2880 x 2880 pixels
Total megapixels: 12 MP
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast
Feature: Privacy masking

Audio

Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS
Feature: Built-in microphone
Feature: Audio detection

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3at
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 1000 MB
Internal memory: 2000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Active tampering alarm
Feature: IP address filtering
Security algorithms: 802.1x RADIUS, HTTPS
Feature: HTTPS encryption
Alert notification type: E-mail, Text alert message
Feature: Pixel counter
Feature: Digest authentication

Power

Power source type: PoE
Power consumption (typical): 7.9 W
Power consumption (max): 15.5 W

Operational conditions

Operating temperature (T-T): -40 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Height: 69 mm
Diameter: 14.9 cm
Weight: 850 g

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Mounting brackets included
Feature: Drilling template included
Feature: Manual

Logistics data

Harmonized System (HS) code: 85258900
