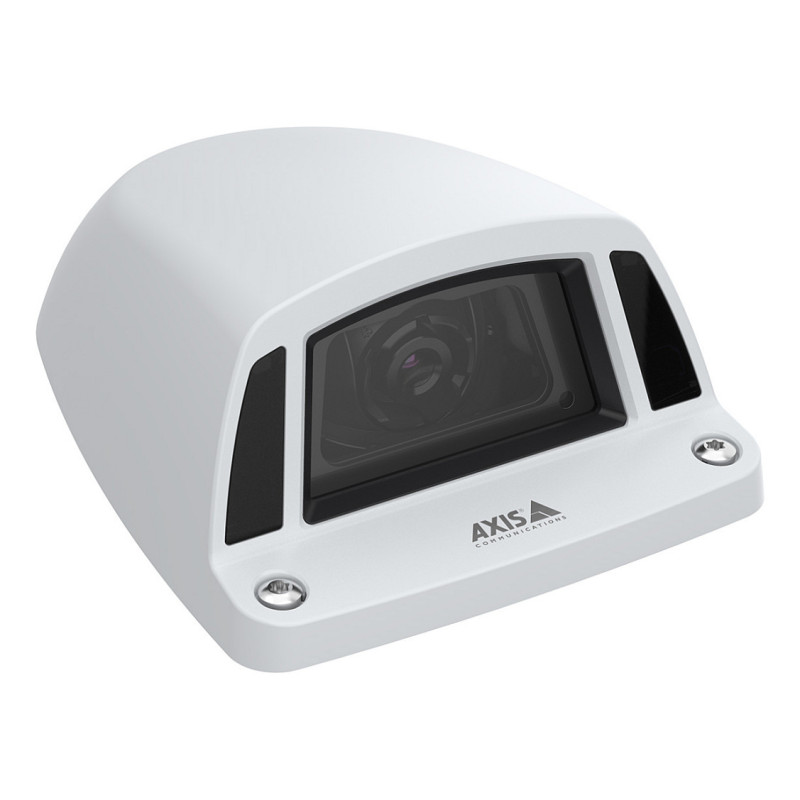

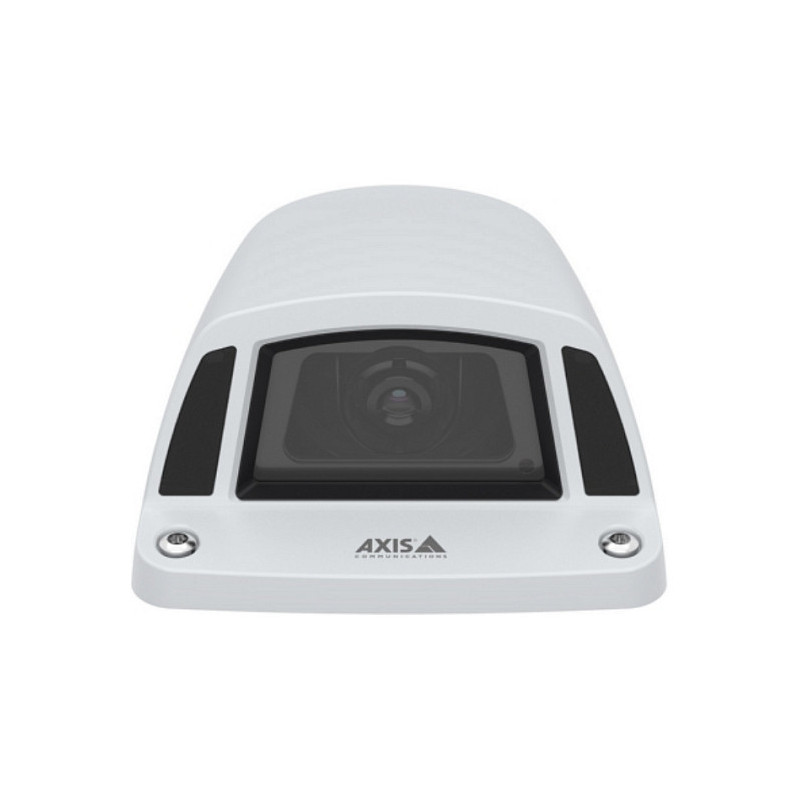

Axis 02091-001 security camera

Axis 02091-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Aluminium, Tempered glass. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Night vision distance: 20 m, Infra-red wavelength: 850 nm
AXIS P3925-LRE specially designed for side view monitoring on buses, trains, and transportation vehicles. It can also be used for identifying maintenance needs on rolling stock, for example, wear and tear of pantograph collector strips. This robust and compact camera features a tempered glass window and complies with transport industry standards and IK10+, IP66, IP67, and IP6K9K. It delivers HDTV 1080p with Lightfinder for color images in poor light and Forensic WDR for maximal forensic usability in mixed light conditions. Plus, built-in IR Illumination enables monitoring in complete darkness. Furthermore, it supports exchangeable lenses for full flexibility.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Number of languages: 11
Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Certification: 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, EN 45545-2, UN ECE R118, IS 13252, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155:2017 OT2/ST2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, NIST SP500-267

Design

Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Aluminium, Tempered glass
International Protection (IP) code: IP66, IP67
IK code: IK10+
Fog proof: Yes

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.02 lx
Angle of rotation: 350°
Lens viewing angle, horizontal: 56°
Lens viewing angle, vertical: 30°
Tilt angle range: 0 - 50°
Pan range: -20 - 20°
Camera shutter speed: 1/33500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1

Night vision

Night vision: Yes
Night vision distance: 20 m
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes: 720p
Frame rate: 45 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB

Security

Password protection: Yes
IP address filtering: Yes
Security algorithms: 802.1x RADIUS
HTTPS encryption: Yes
Alert notification type: E-mail

Power

Power source type: PoE
Power consumption (typical): 6.3 W
Power consumption (max): 11.8 W

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 95%

Weight dimensions

Width: 160 mm
Depth: 116 mm
Height: 63 mm
Weight: 780 g

Packaging content

Number of cameras: 1
Manual: Yes

Other features

Doesn't contain: PVC

Logistics data

Harmonized System (HS) code: 85258900
