Axis 02036-003 video servers / encoder

Axis 02036-003. Maximum video resolution: 720 x 576 pixels, Maximum frame rate: 30 fps, Video compression formats: H.264, H.265, M-JPEG, MPEG4. Internal memory: 1024 MB, Flash memory: 512 MB, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. Product colour: Grey, Housing material: Metal, Certification: EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B.... Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Security algorithms: 802.1x RADIUS, EAP-TLS, HTTPS, SSH, SSL/TLS, Password protection type: User

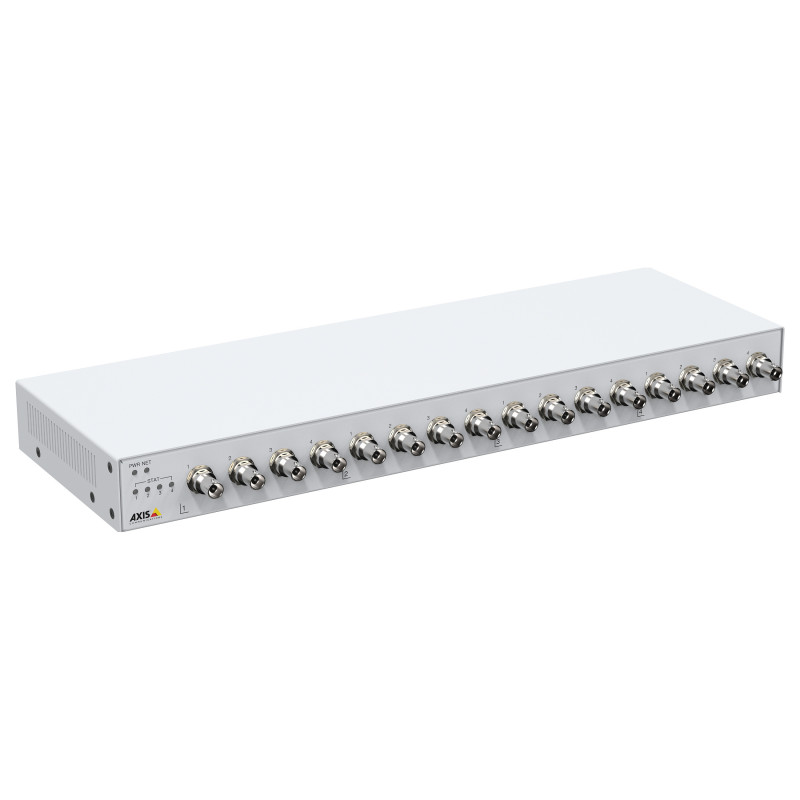

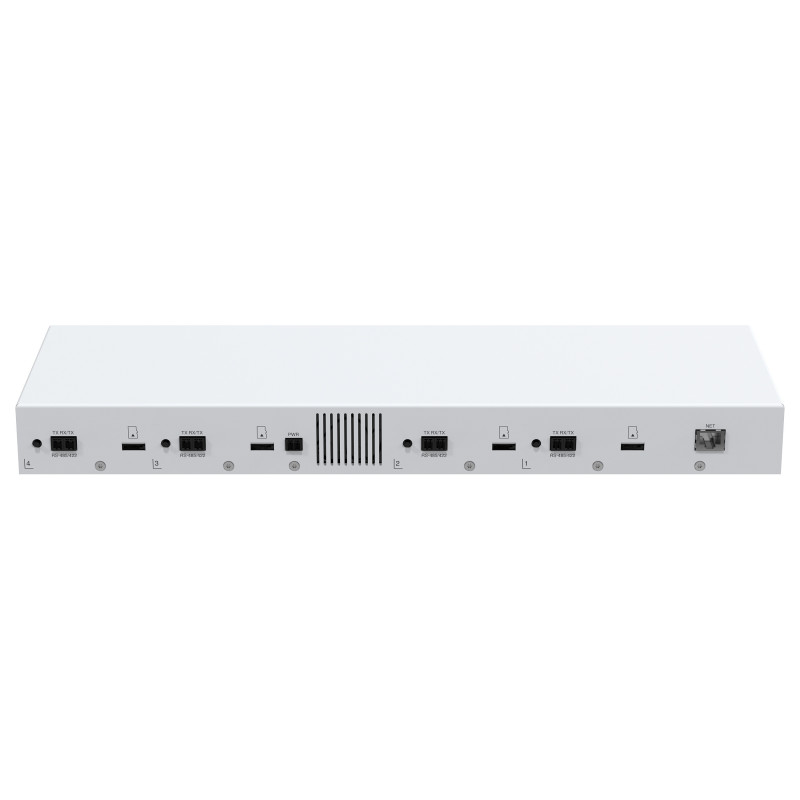

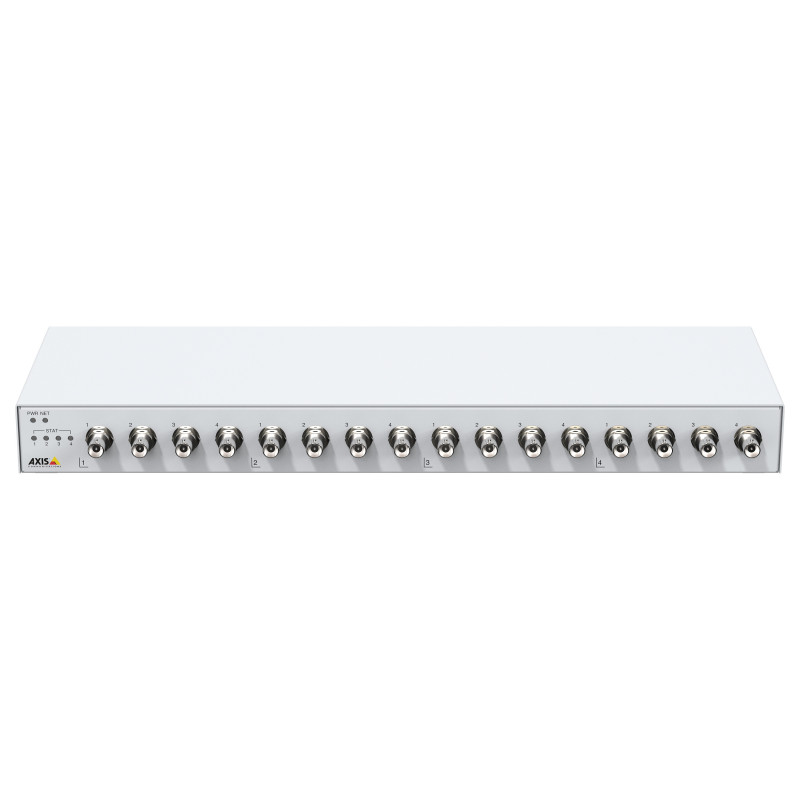

AXIS M7116 is a cost-effective, 16 channel video encoder that adds the benefits of IP surveillance to analog camera systems. It supports standard resolution analog cameras as well as PTZ control over RS-485. This rack-mounted encoder features memory card slots for edge storage as well as support for intelligent analytics such as motion detection and active tampering alarm. Including Zipstream with H.264/H.265, it significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, it offers enhanced security features such as signed firmware and secure boot.

Video

Maximum video resolution: 720 x 576 pixels
Maximum frame rate: 30 fps
Video compression formats: H.264, H.265, M-JPEG, MPEG4
NTSC resolutions: 720 x 480 pixels
PAL resolutions: 720 x 576 pixels
Channels quantity: 16 channels

Performance

Internal memory: 1024 MB
Flash memory: 512 MB
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Feature: Firmware upgradeable
Resolution: 720 x 576 pixels
Feature: PTZ control
Frame rate: 30 fps
Angle of rotation: 270°

Design

Product colour: Grey
Housing material: Metal
LED indicators: Yes
Feature: Wall mountable

Network

Feature: Quality of Service (QoS) support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Security

Security algorithms: 802.1x RADIUS, EAP-TLS, HTTPS, SSH, SSL/TLS
Feature: Video motion detection
Feature: IP address filtering
Password protection type: User
Feature: Active tampering alarm

Ports & interfaces

BNC input ports: 16
Ethernet LAN (RJ-45) ports: 1
I/O terminal ports: 4

Weight & dimensions

Width: 440 mm
Depth: 145 mm
Height: 44 mm
Weight: 2.05 kg

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%

Other features

Doesn't contain: PVC
