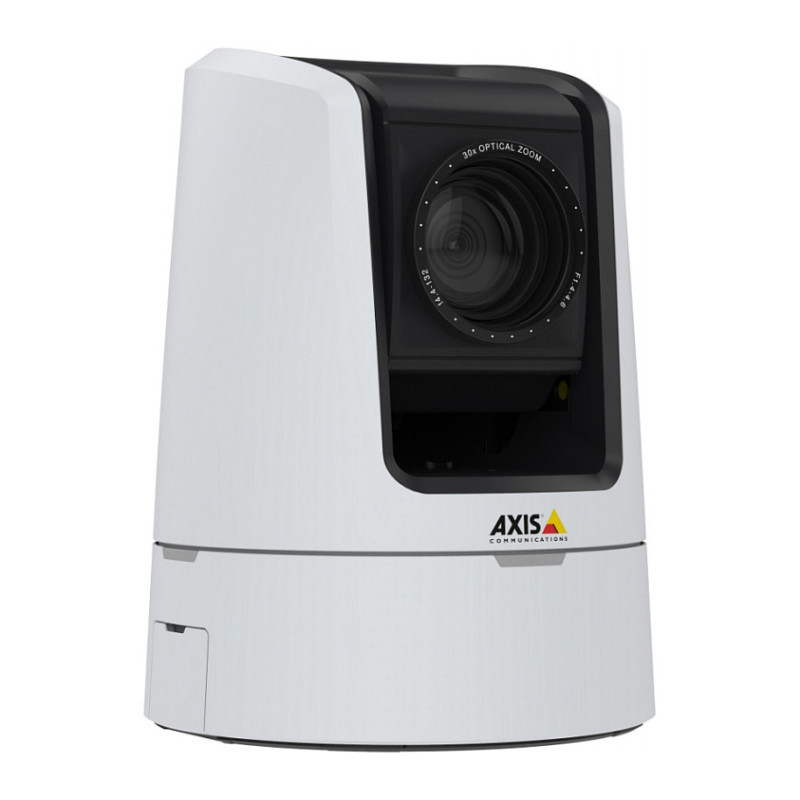

Axis 01965-002 security camera

Axis 01965-002. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 62°, Lens viewing angle, vertical: 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 30x, Digital zoom: 12x, Focal length range: 4.4 - 132 mm
AXIS V5925 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It's compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. NDI® compliant (license to be bought separately).

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
PTZ control: Yes
Auto-tracking: Yes
Preset points: Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Certification: 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Plastic
Fog proof: Yes

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.03 lx
Lens viewing angle, horizontal: 62°
Lens viewing angle, vertical: 37°
Tilt angle range: -20 - 90°
Tilt speed: 90 °/sec
Pan range: -170 - 170°
Pan speed: 100 °/sec
Camera shutter speed: 1/10000 - 1 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 30x
Digital zoom: 12x
Number of lenses: 1
Focal length range: 4.4 - 132 mm
Auto focus: Yes
Maximum aperture number: 4.6
Minimum aperture number: 1.4

Video

Maximum resolution: 1920 x 1080 pixels
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 90, 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Frame rate: 60 fps
Video streaming: Yes
Image quality adjustment: Brightness, Saturation, Sharpness
Text caption overlay: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio formats supported: AAC-LC, ADPCM, LPCM
Sample rate: 48 kHz

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Supported network protocols: IPv4/v6, HTTP, HTTP/2, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog, HDMI 1.4, 3G-SDI
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
RS-232 ports: 1
Microphone in: Yes
Terminal block port: Yes

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
Security algorithms: 802.1x RADIUS
HTTPS encryption: Yes

Power

Power source type: DC
Power consumption (typical): 14 W
Power consumption (max): 25 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 10 - 85%

Weight dimensions

Width: 136 mm
Depth: 136 mm
Height: 180 mm
Weight: 1.5 kg

Packaging content

Number of cameras: 1
Manual: Yes

Logistics data

Harmonized System (HS) code: 85258900
