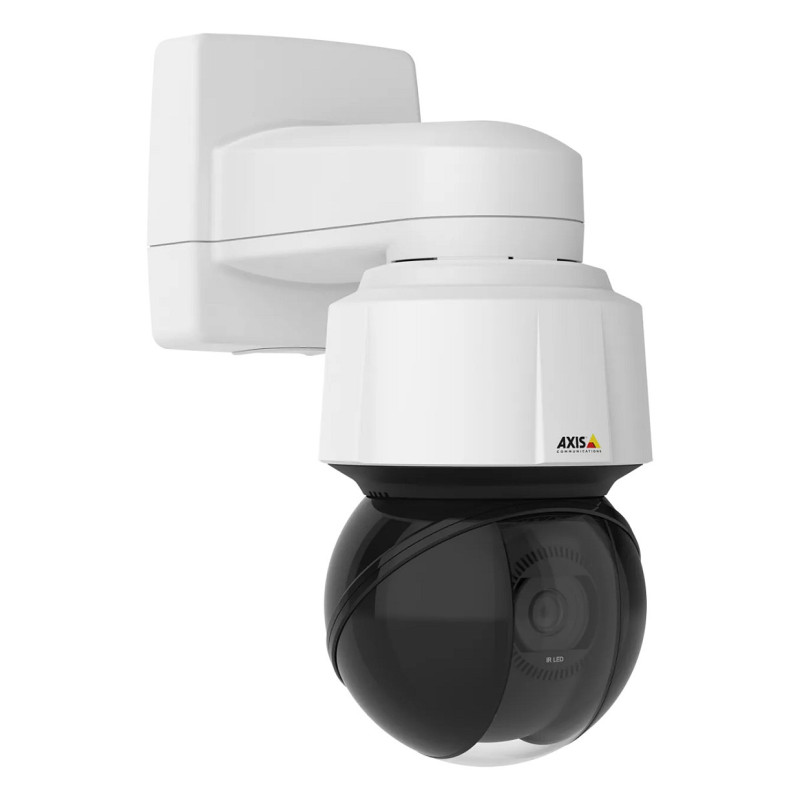

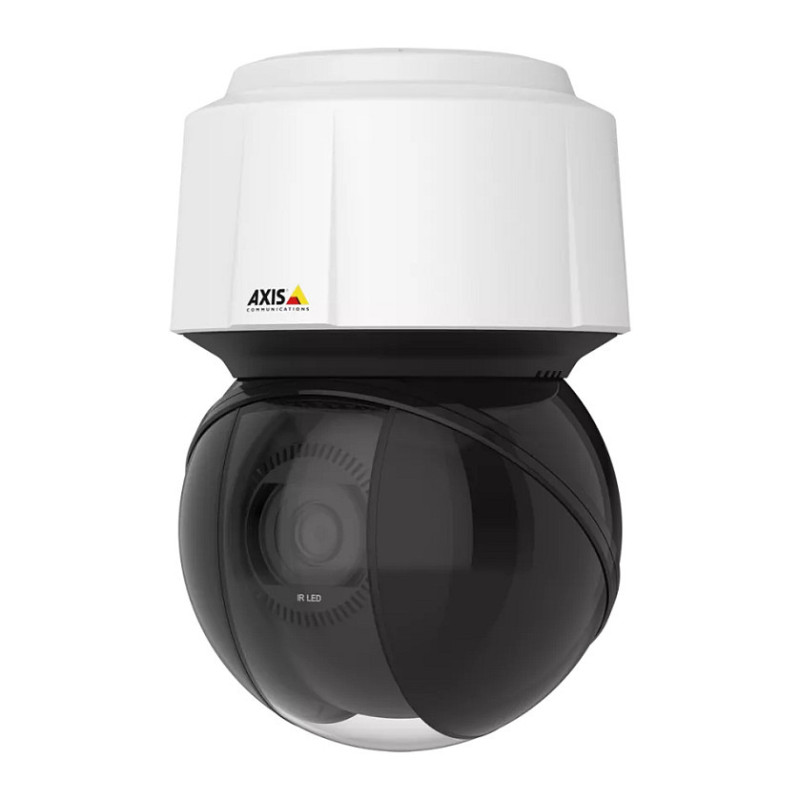

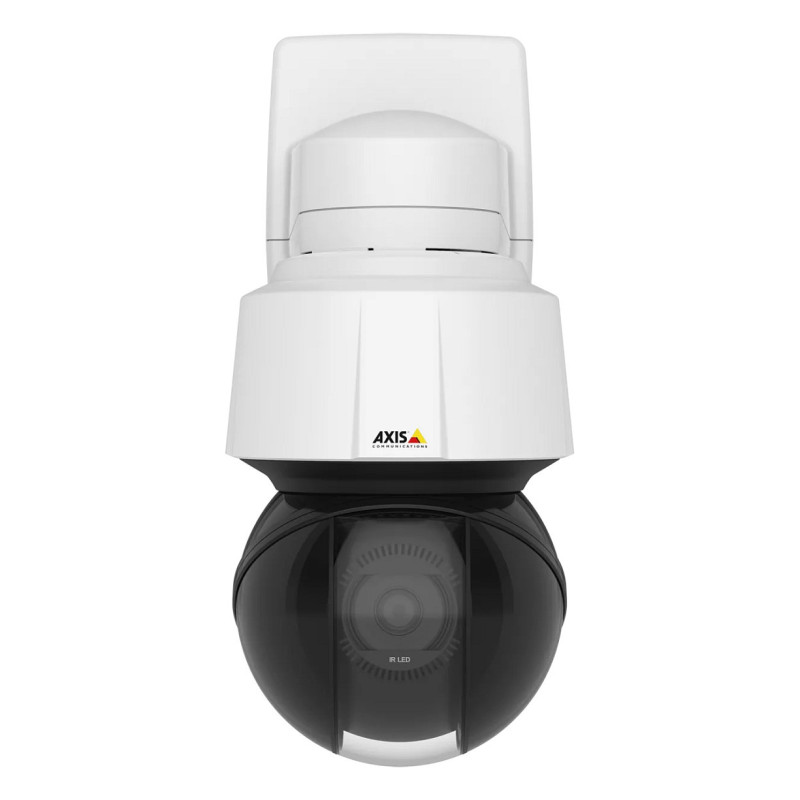

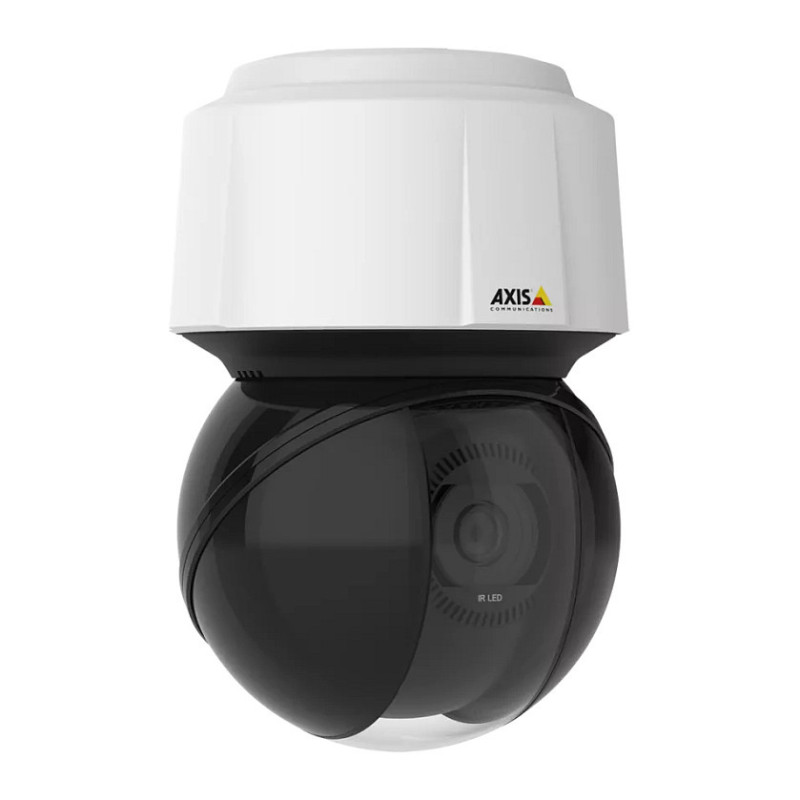

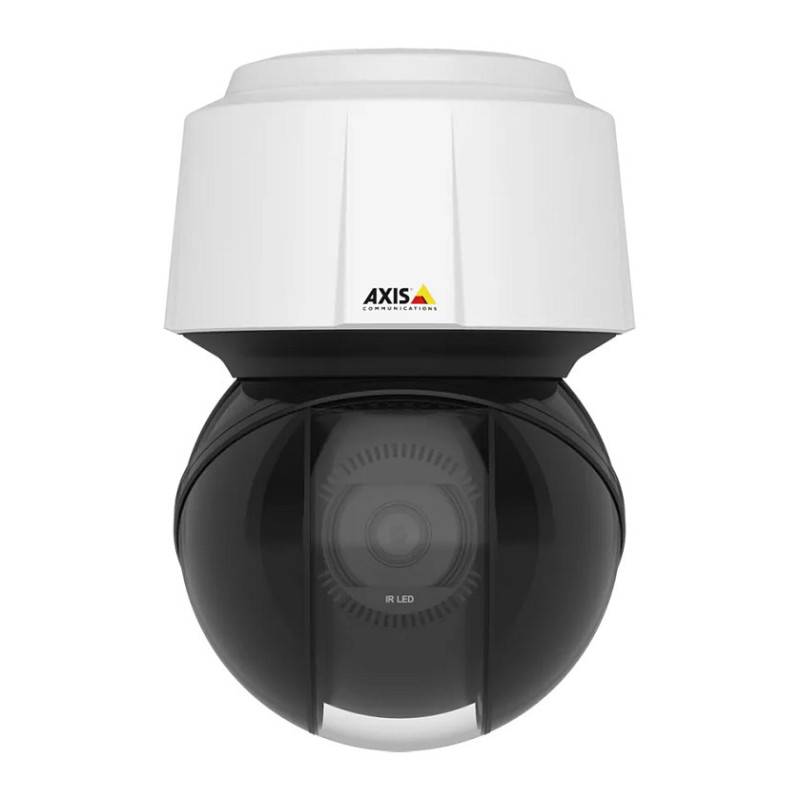

Axis 01958-002 security camera

Axis 01958-002. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Tilt angle range: 20 - 90°, Tilt speed: 500 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x
AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
Tour recording: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.01 lx
Tilt angle range: 20 - 90°
Tilt speed: 500 °/sec
Pan range: 0 - 360°
Pan speed: 700 °/sec
Camera shutter speed: 1/66500 s to 2s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 32x
Digital zoom: 12x
Auto focus: Yes
Maximum aperture number: 4
Minimum aperture number: 1.4

Night vision

Night vision: Yes
Night vision distance: 250 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Video formats supported: H.264, H.265, M-JPEG
Supported graphics resolutions: 320 x 180, 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes

Network

Ethernet LAN: Yes
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa, HTTP/2, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1204 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Password protection: Yes
IP address filtering: Yes
HTTPS encryption: Yes

Power

Power source type: AC, PoE
AC input voltage: 100-240 V
Power consumption (typical): 13.5 W
Power consumption (max): 51 W
Power consumption (Power over Ethernet (PoE)): 37 W

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Height: 241 mm
Diameter: 16.5 cm
Weight: 3 kg

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
